C402 Transmission Harness to Fuel Tank Jumper Harness
C402 Transmission Harness to Fuel Tank Jumper Harness

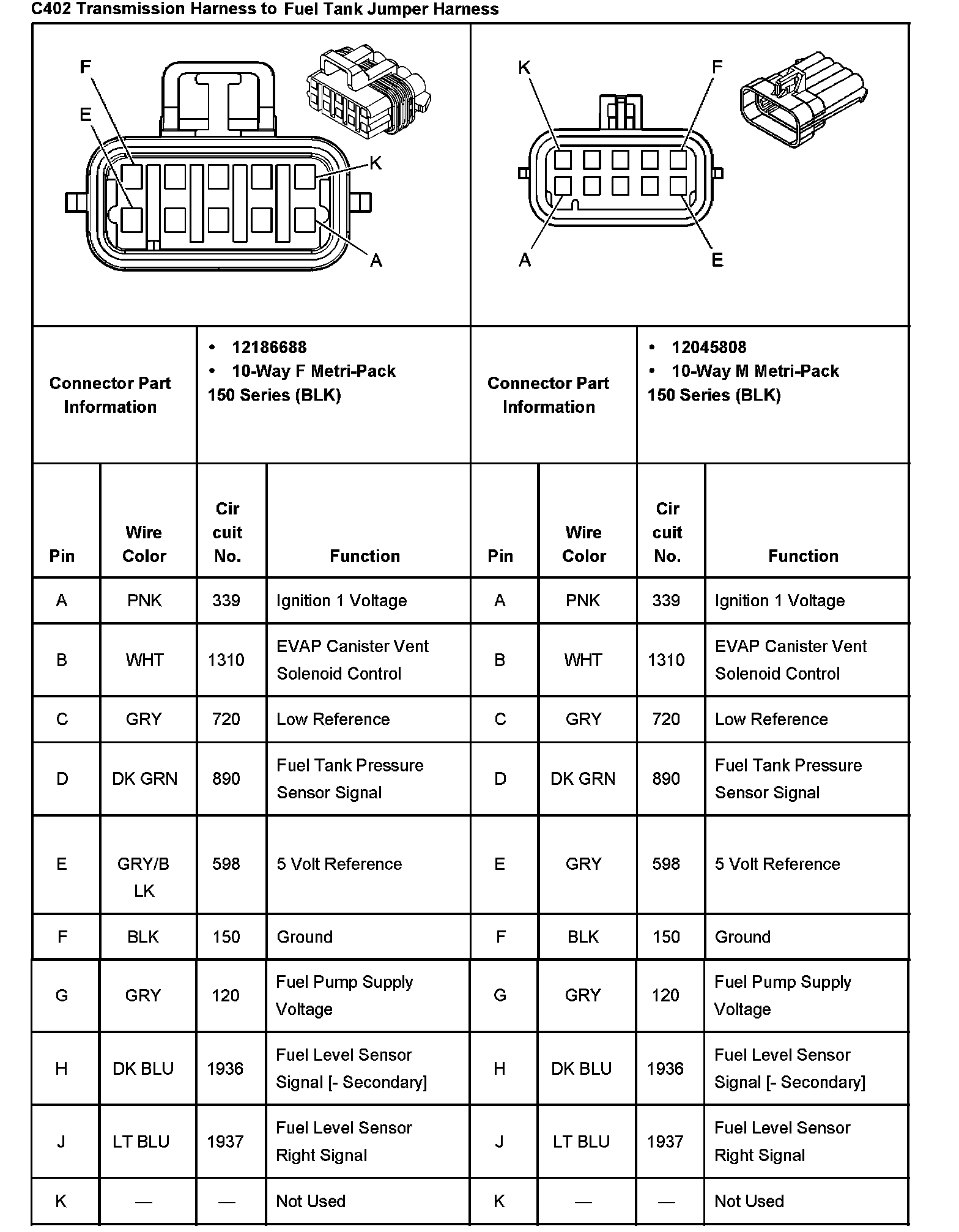

C402 Transmission Harness To Fuel Tank Jumper Harness Part 1:
