C406 Transmission Harness to RR Suspension Damper Jumper
C406 Transmission Harness to RR Suspension Damper Jumper

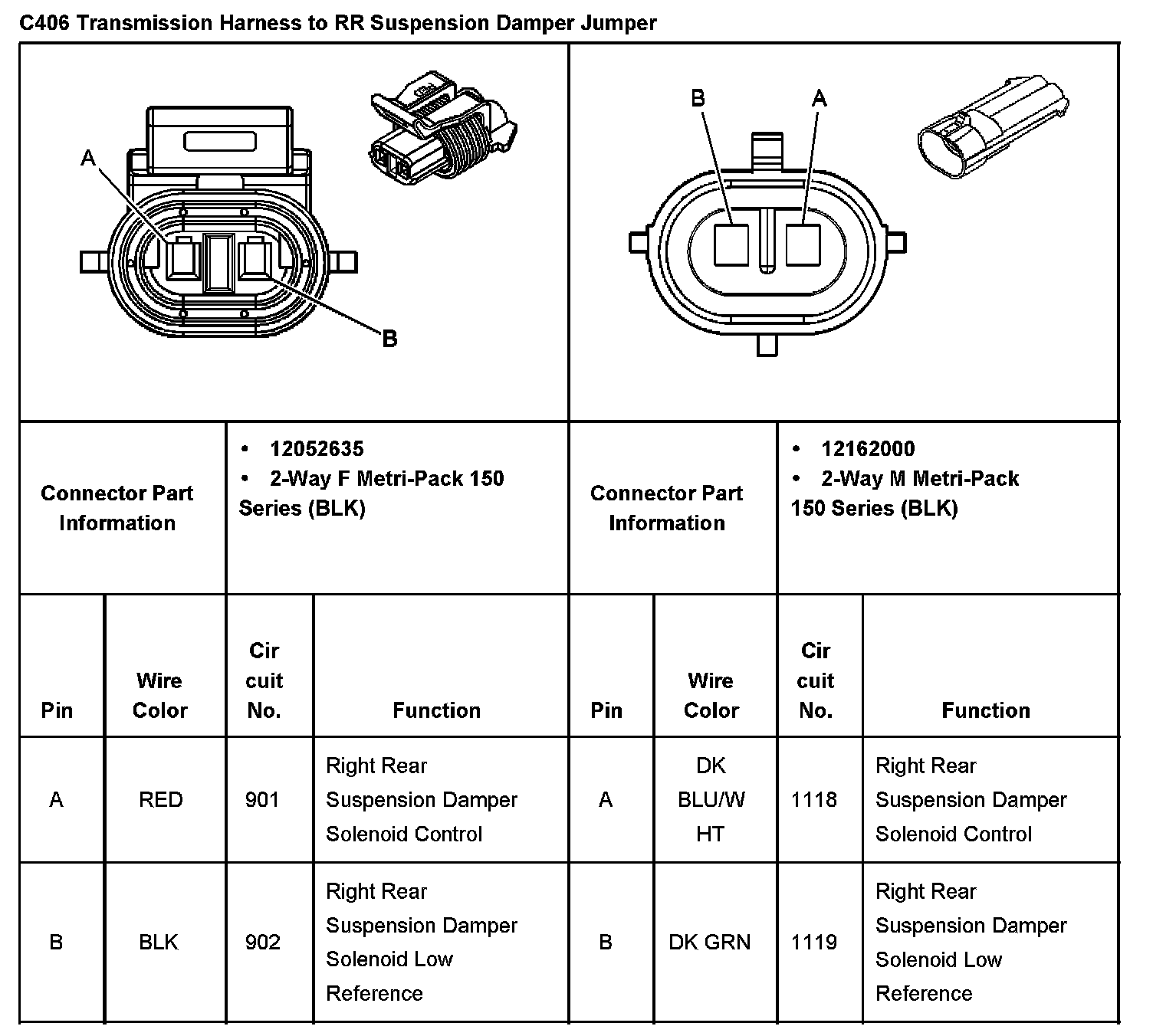

C406 Transmission Harness To RR Suspension Damper Jumper:
