C409 Fuel Tank Jumper to Fuel Tank Pressure Sensor (W/O FFS)
C409 Fuel Tank Jumper to Fuel Tank Pressure Sensor (W/O FFS)

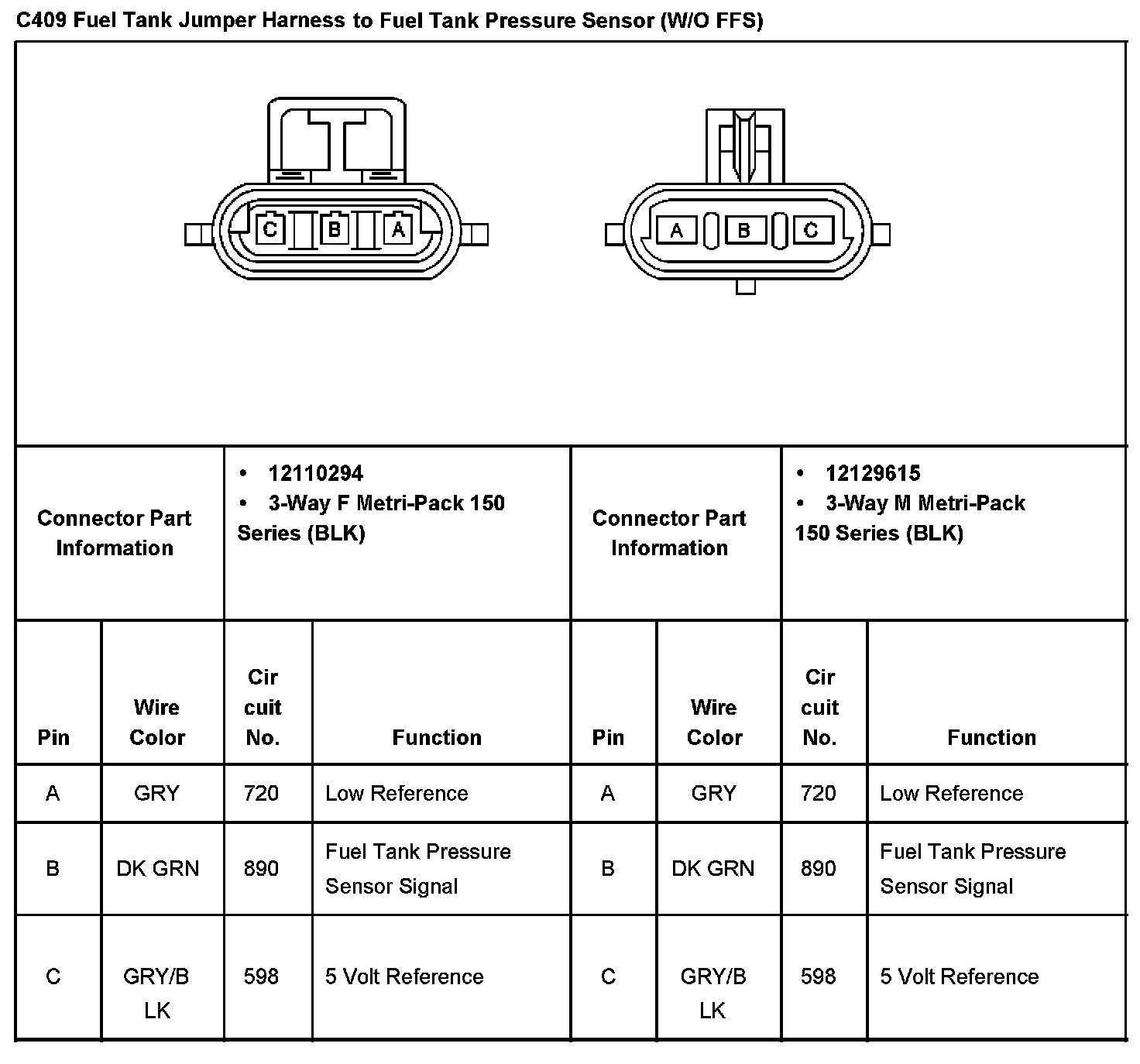

C409 Fuel Tank Jumper Harness To Fuel Tank Pressure Sensor (W/O FFS):
