Compressor Clutch

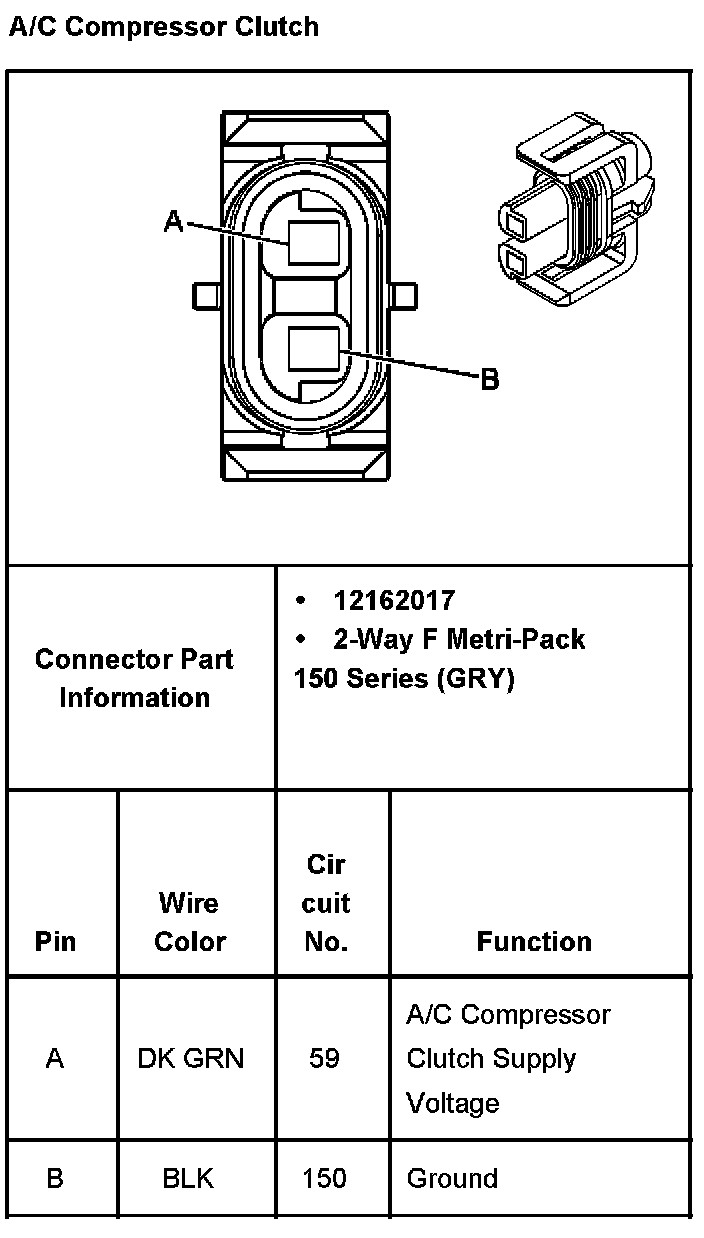

A/C Compressor Clutch (w/Manual - HVAC System):

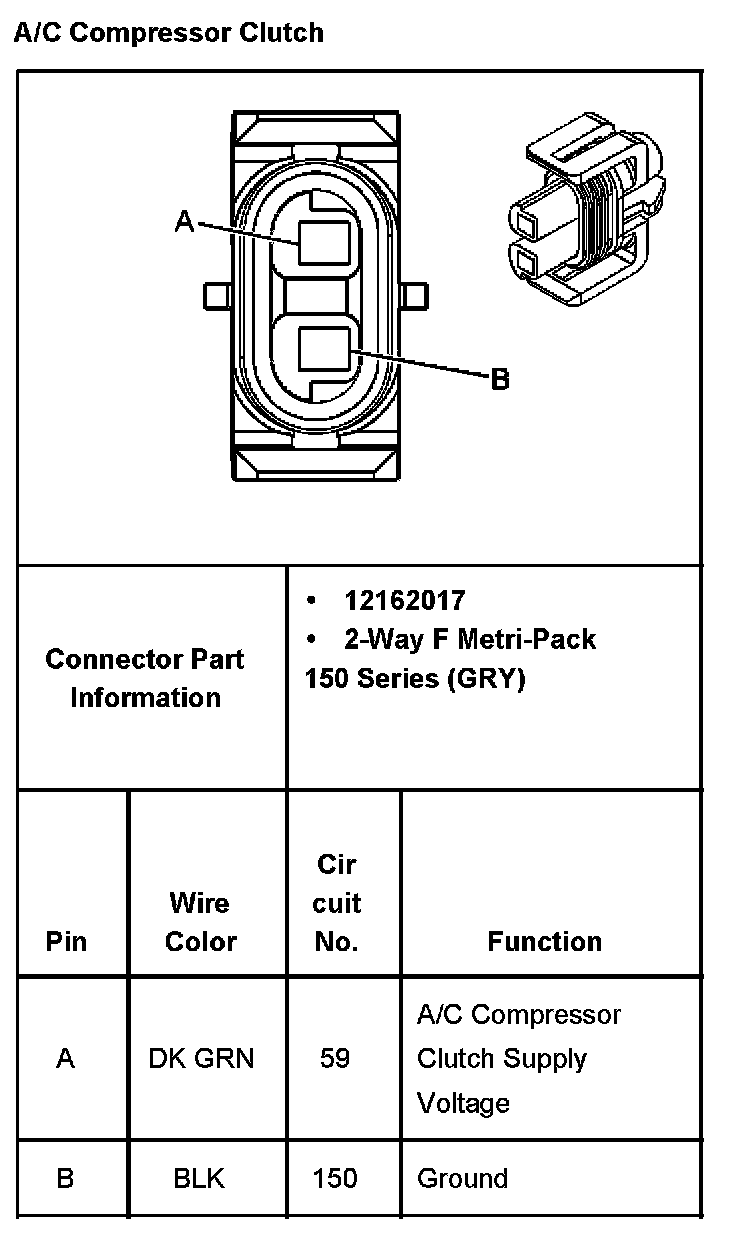

A/C Compressor Clutch (w/Automatic - HVAC System):
