Door Switch

Door Switch-Driver Part 1:

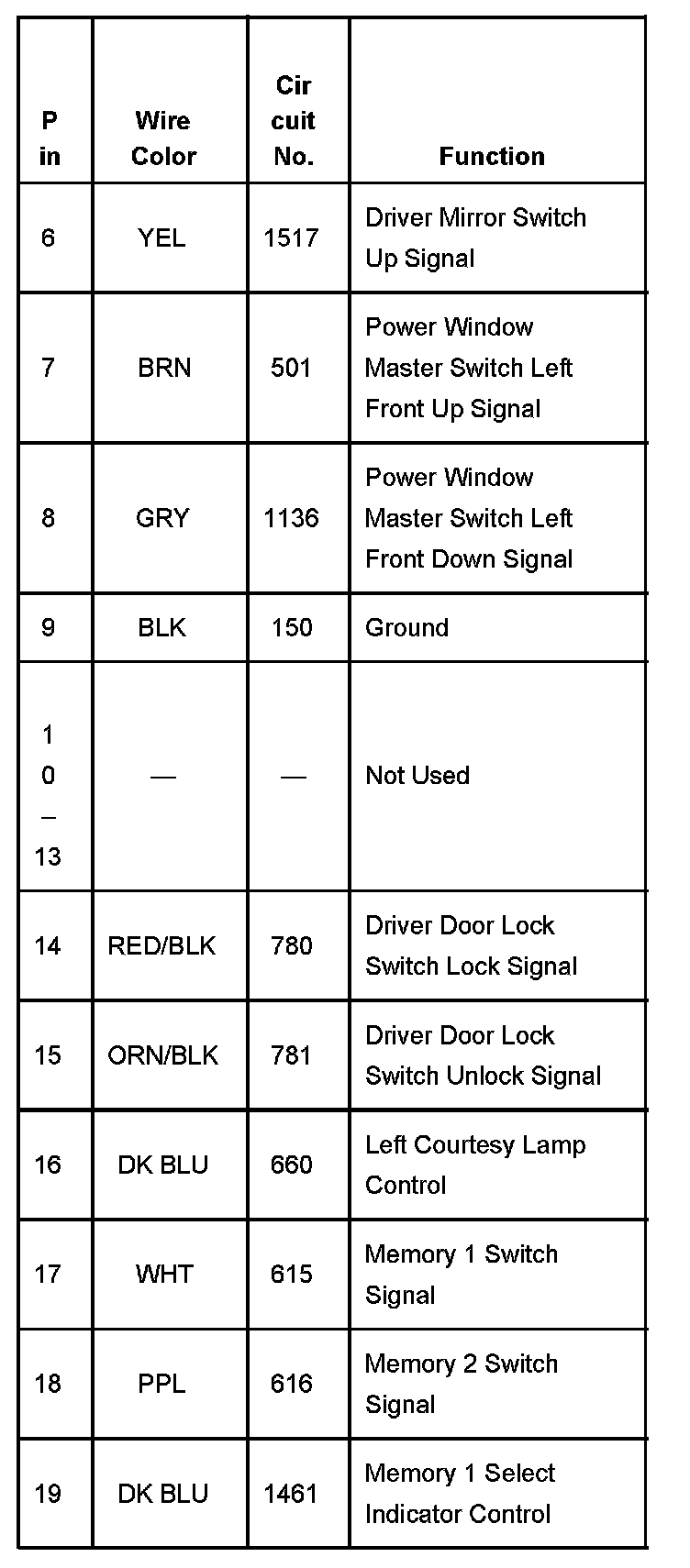

Door Switch-Driver Part 2:

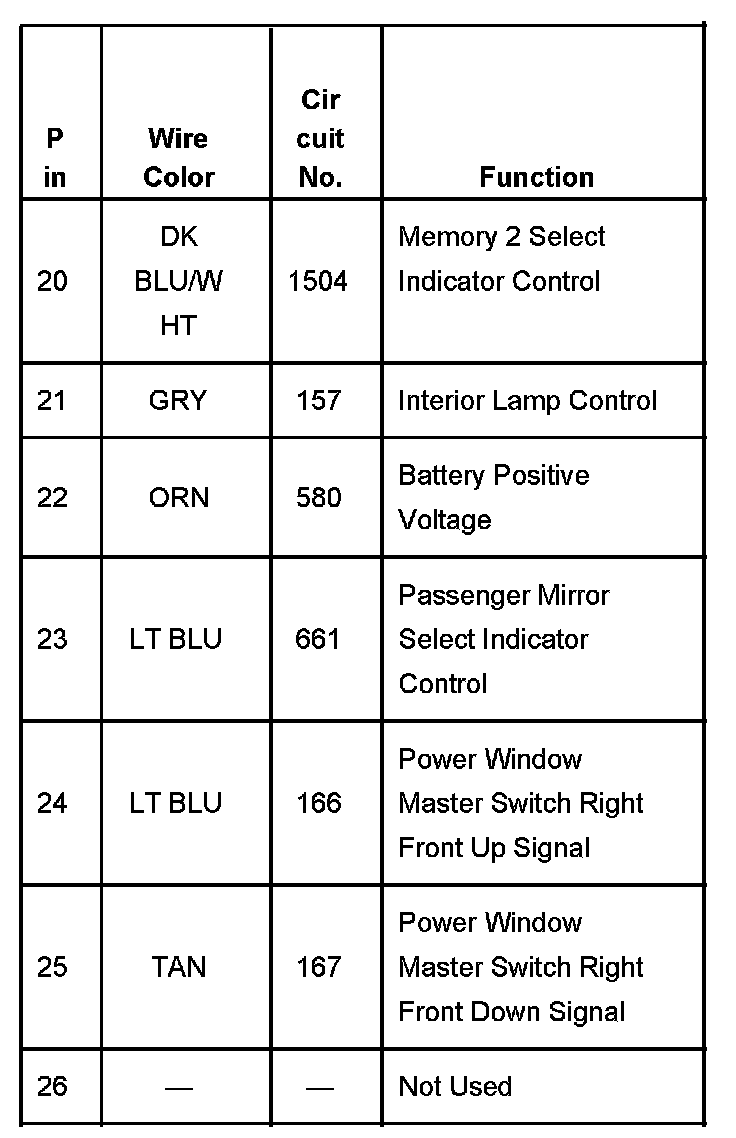

Door Switch-Driver Part 3:

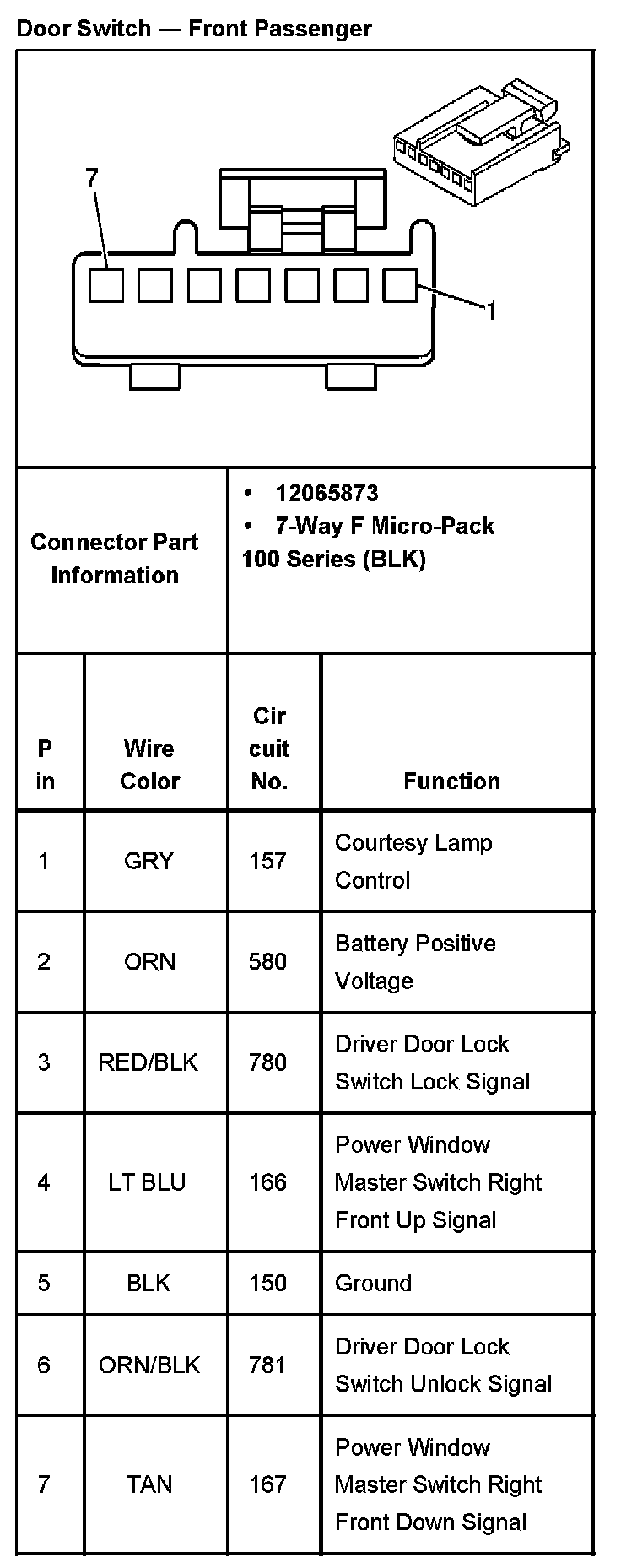

Door Switch-Front Passenger:
