Home >> Chevrolet >> 2004 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp >> Fog/Driving Lamp Switch

Fog/Driving Lamp Switch

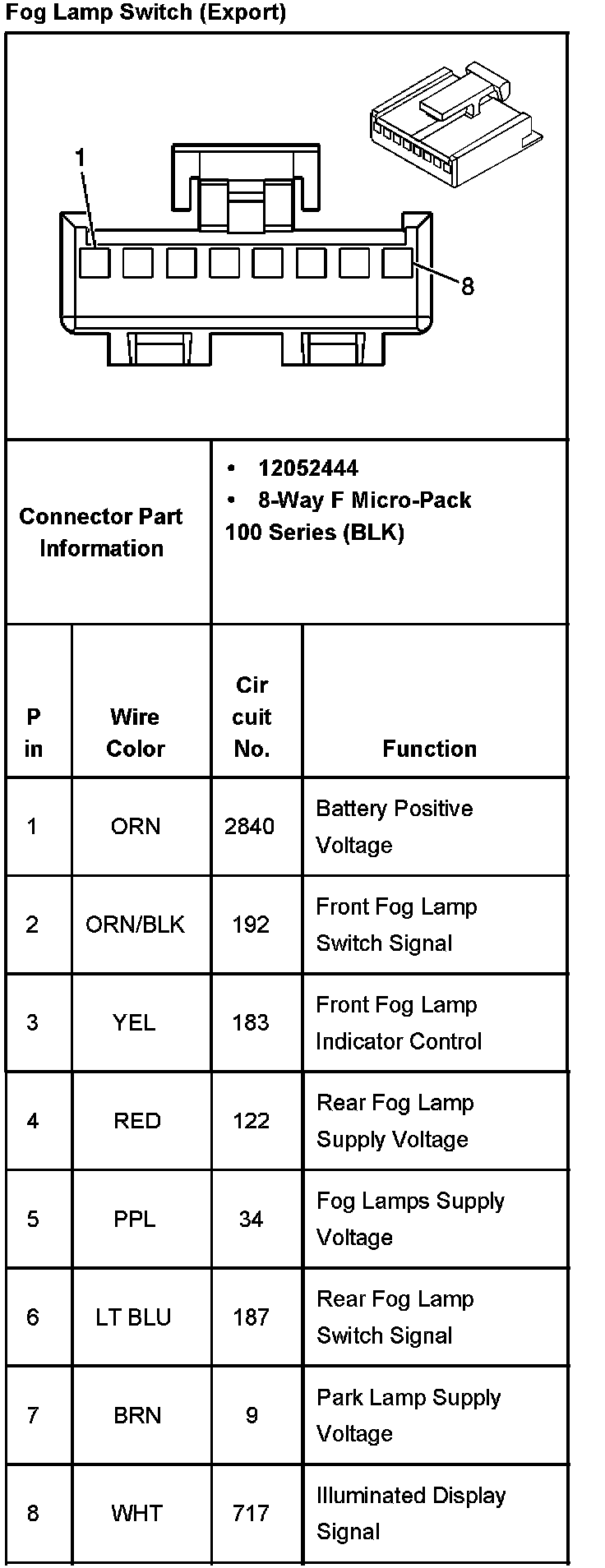

Fog Lamp Switch (Export):
