Fuse Block-I/P C1

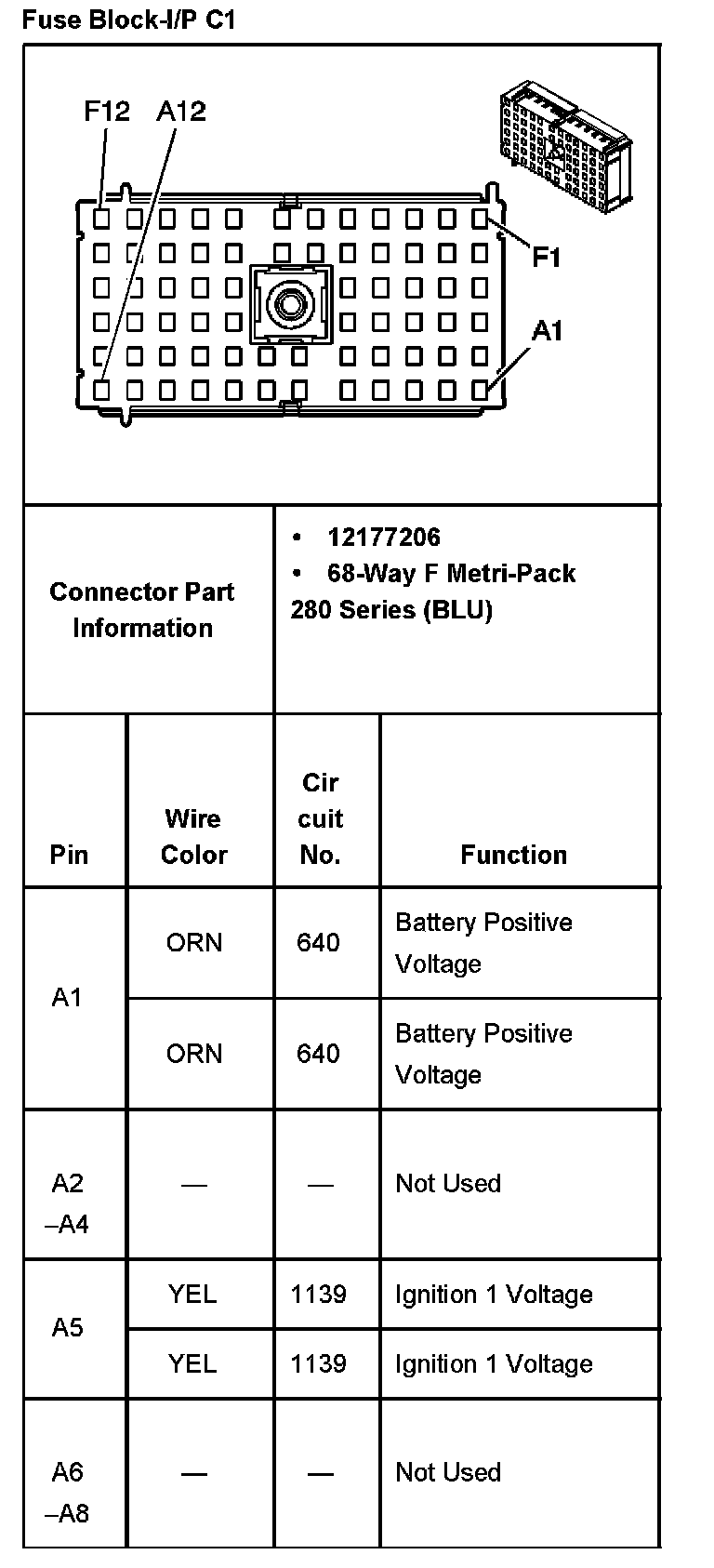

Fuse Block-I/P C1 Part 1:

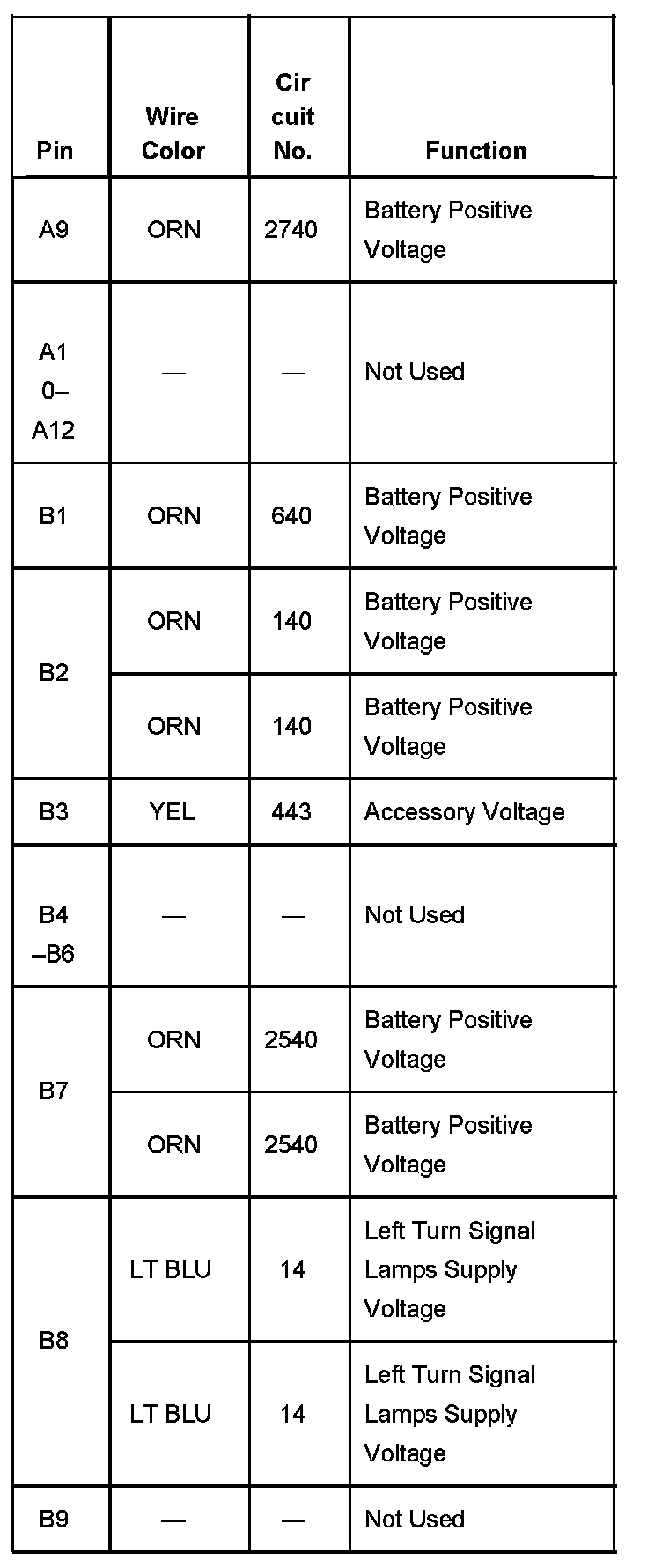

Fuse Block-I/P C1 Part 2:




Fuse Block-I/P C1 Part 3:




Fuse Block-I/P C1 Part 4:




Fuse Block-I/P C1 Part 5:

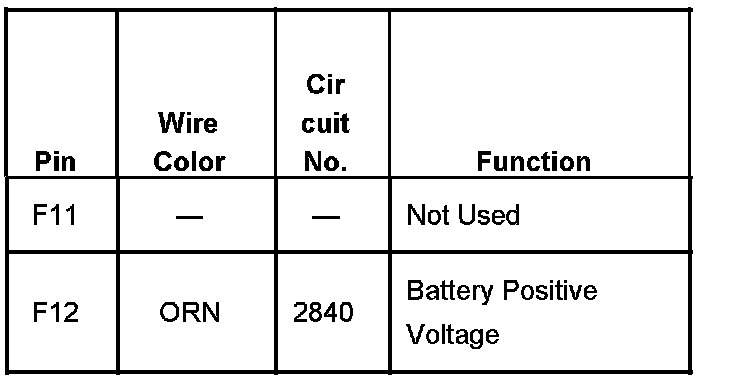

Fuse Block-I/P C1 Part 6:
