Home >> Chevrolet >> 2004 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Fuse Block-I/P C2

Fuse Block-I/P C2

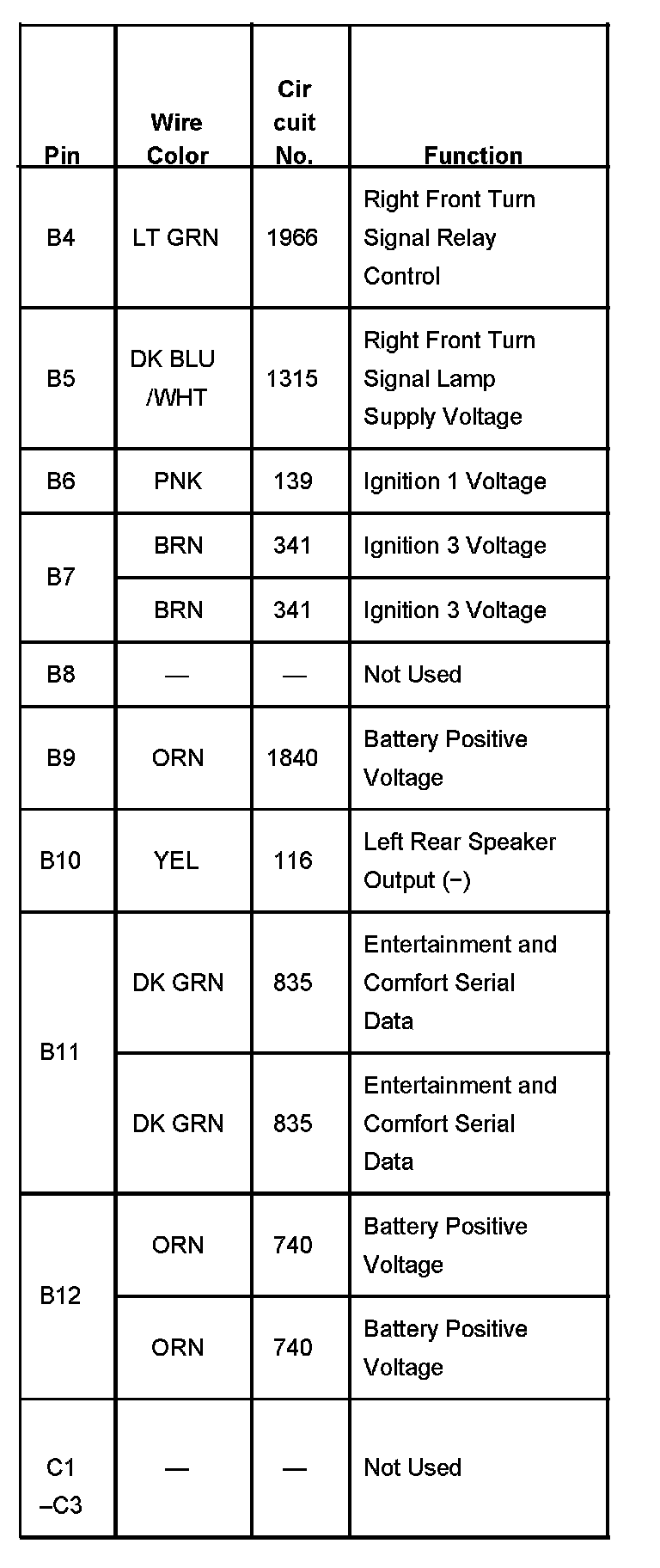

Fuse Block-I/P C2 Part 1:

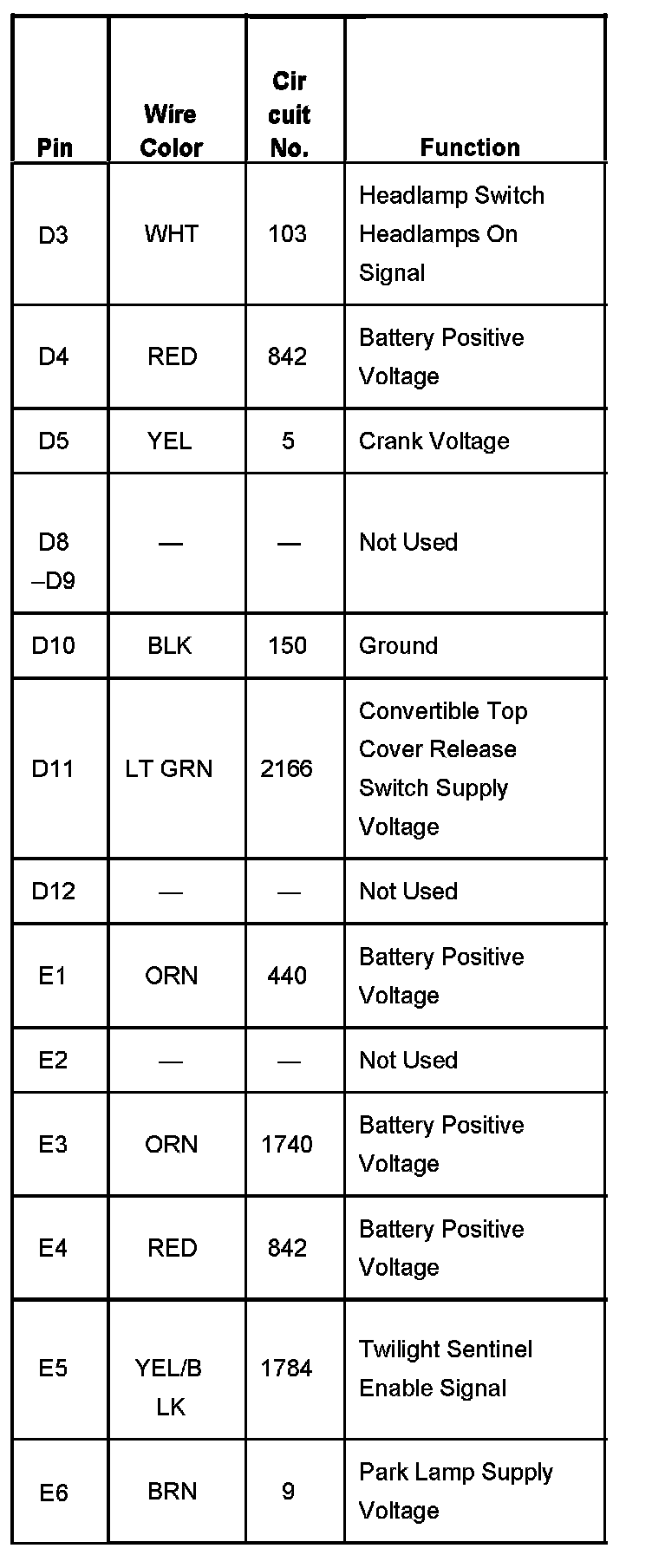

Fuse Block-I/P C2 Part 2:




Fuse Block-I/P C2 Part 3:




Fuse Block-I/P C2 Part 3:




Fuse Block-I/P C2 Part 4:




Fuse Block-I/P C2 Part 5:




Fuse Block-I/P C2 Part 6:
