Home >> Chevrolet >> 2004 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Fuse Block-I/P C8

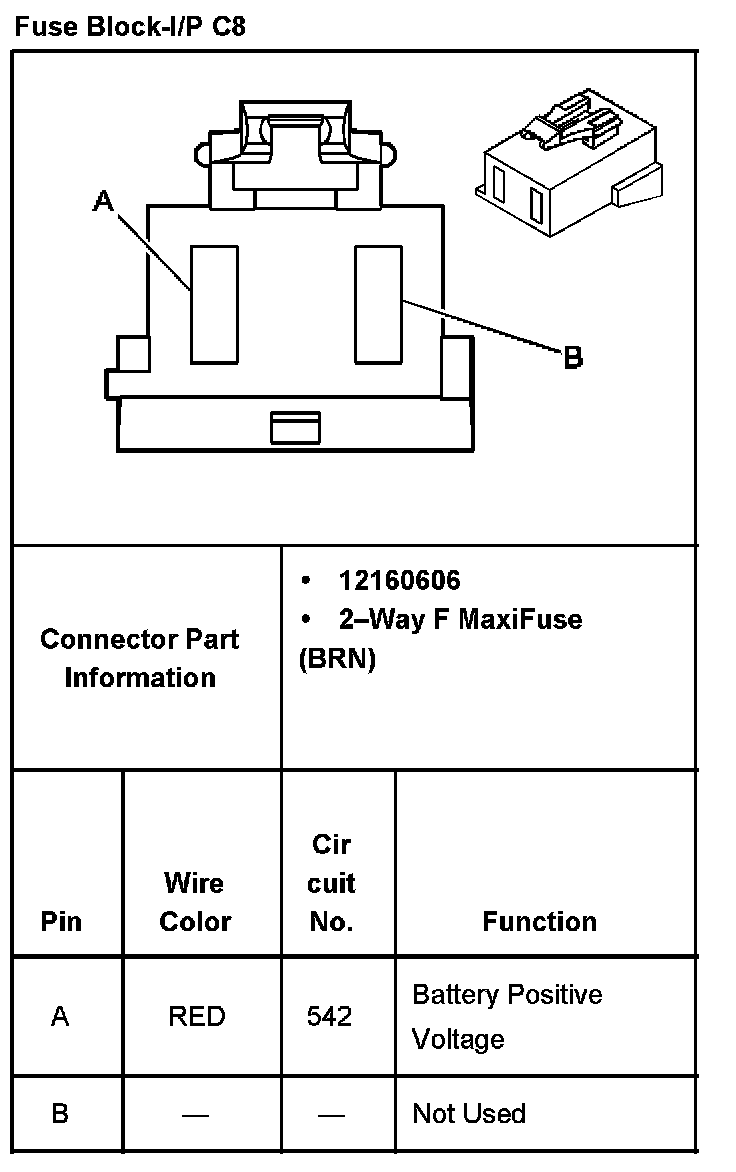

Fuse Block-I/P C8

Fuse Block-I/P C8:
