Fuse Block-Underhood C1

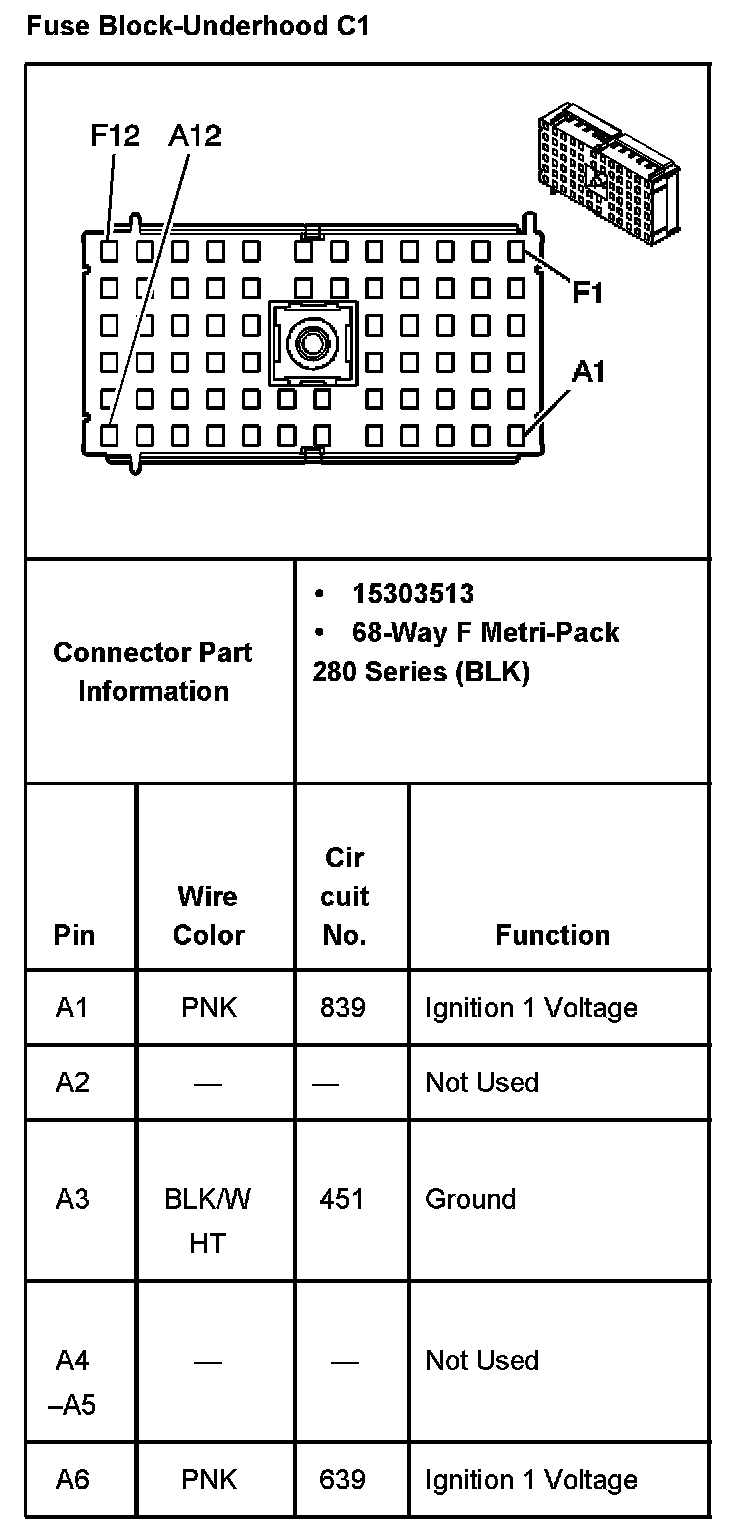

Fuse Block-Underhood C1 Part 1:

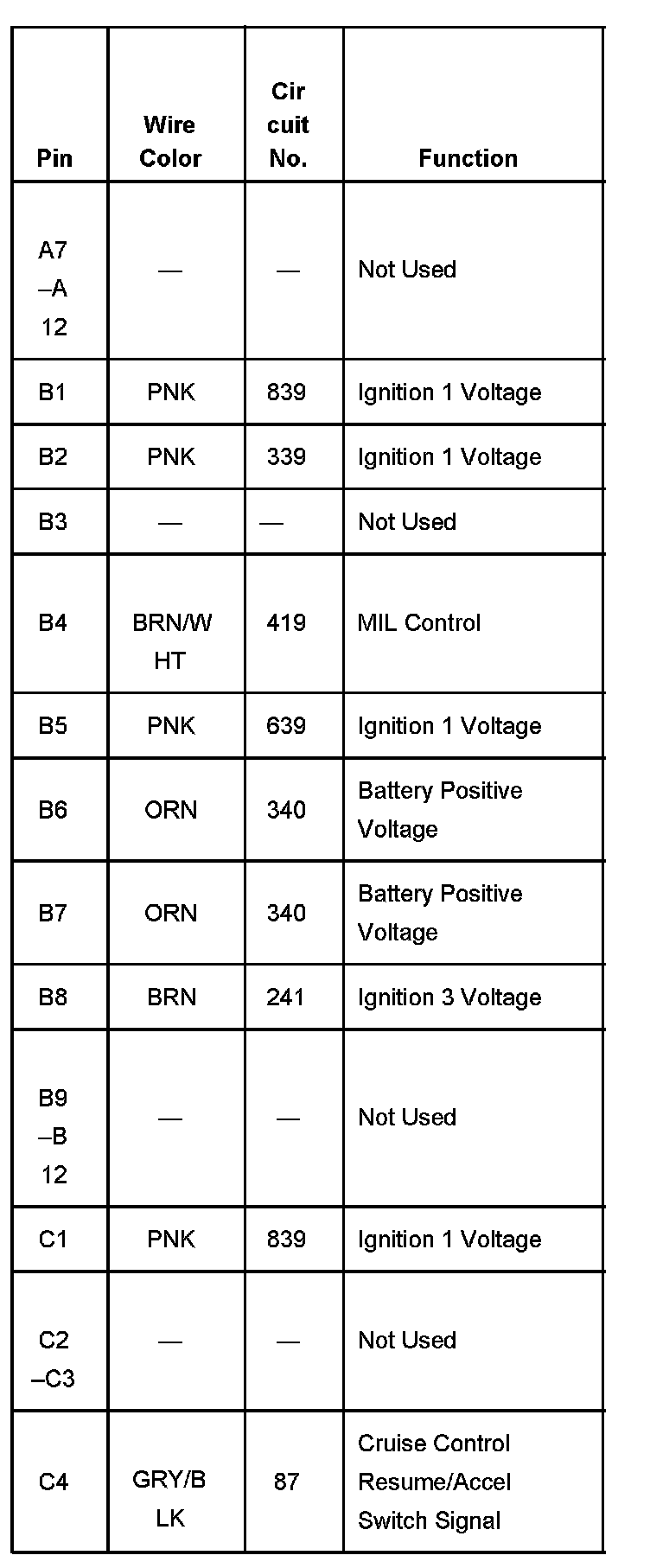

Fuse Block-Underhood C1 Part 2:



Fuse Block-Underhood C1 Part 3:

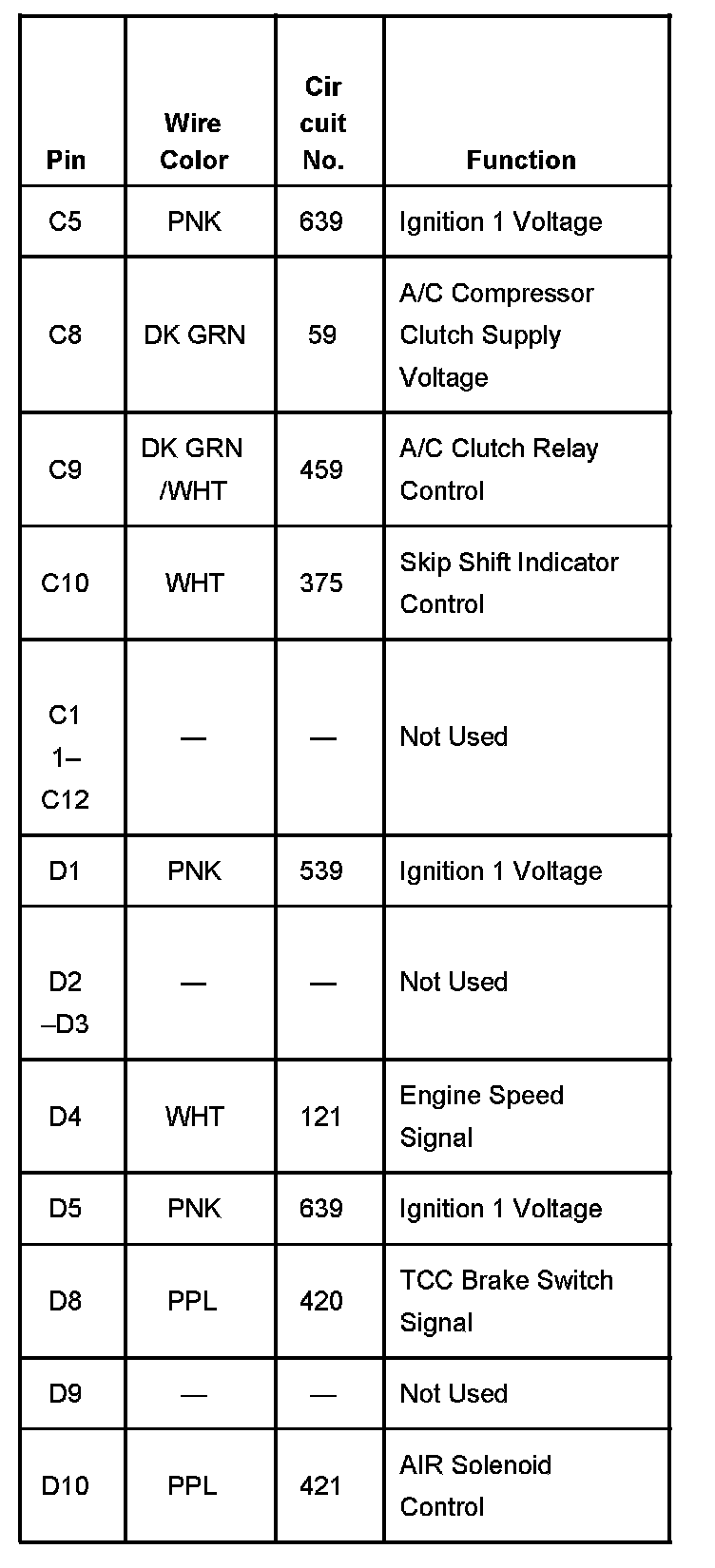

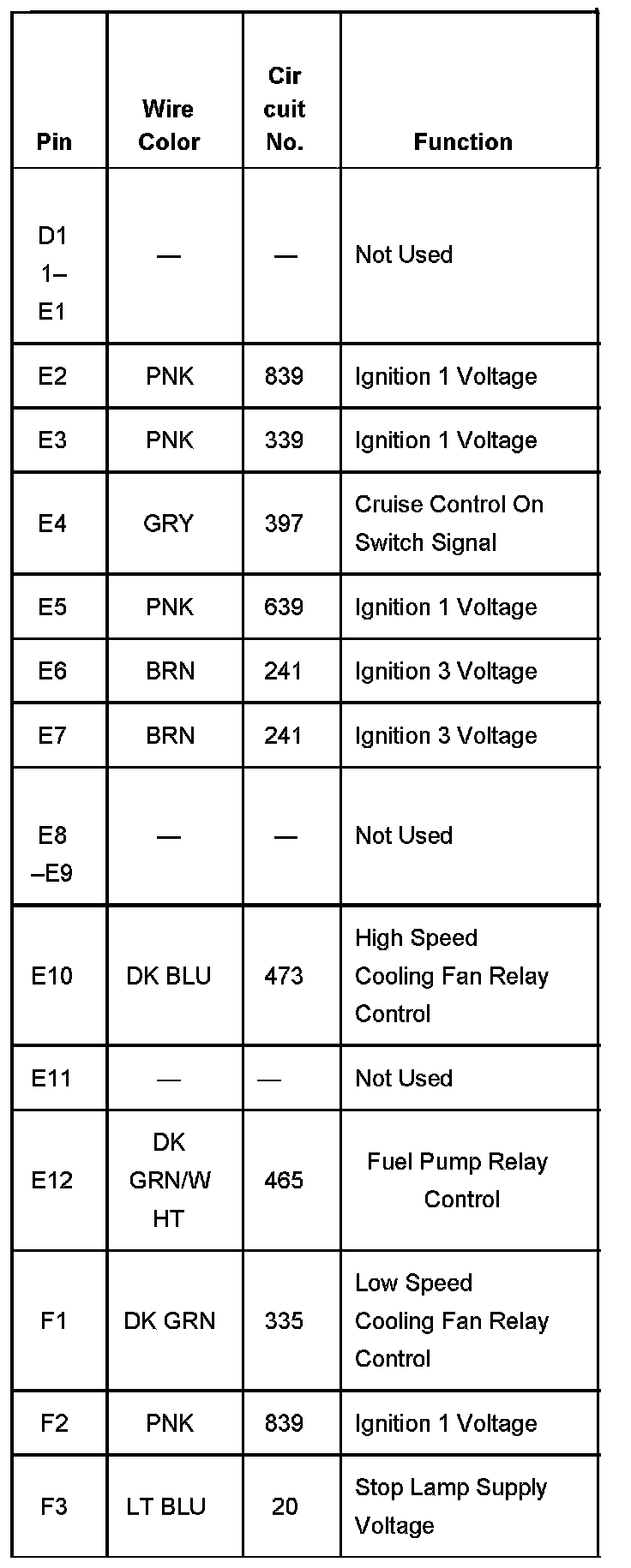

Fuse Block-Underhood C1 Part 4:

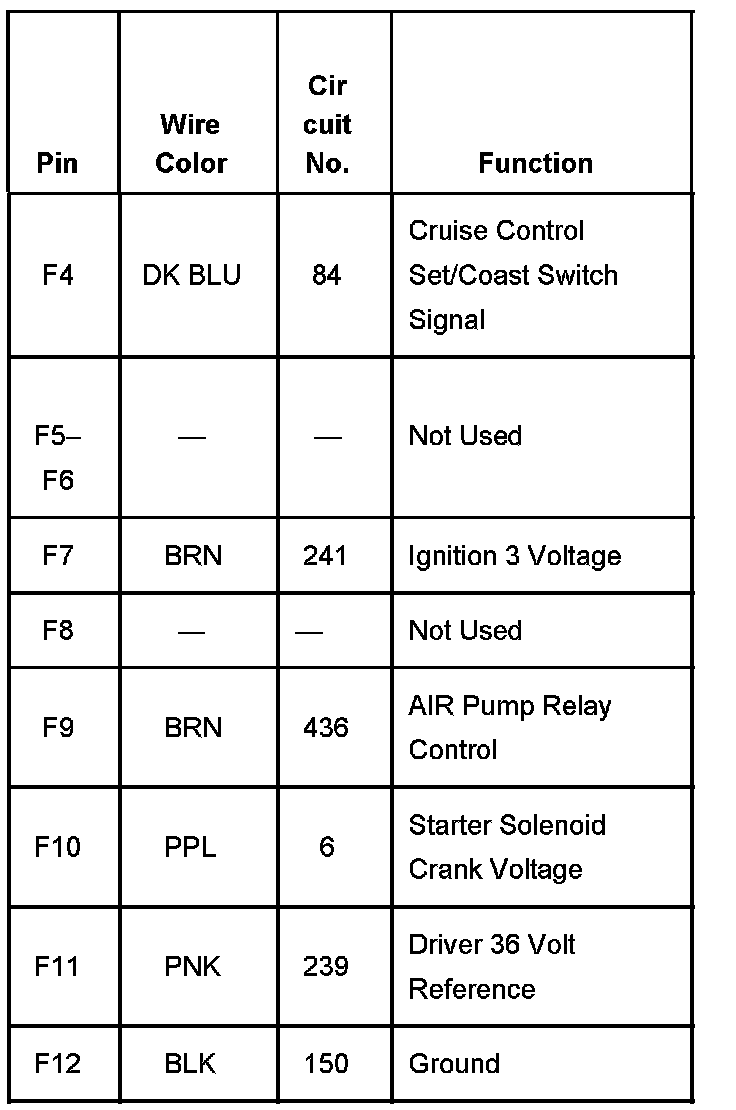

Fuse Block-Underhood C1 Part 5:
