Diagrams
>>
Connector Views
>>
Fuse Block
>>
Fuse Block-Underhood C6
Fuse Block-Underhood C6

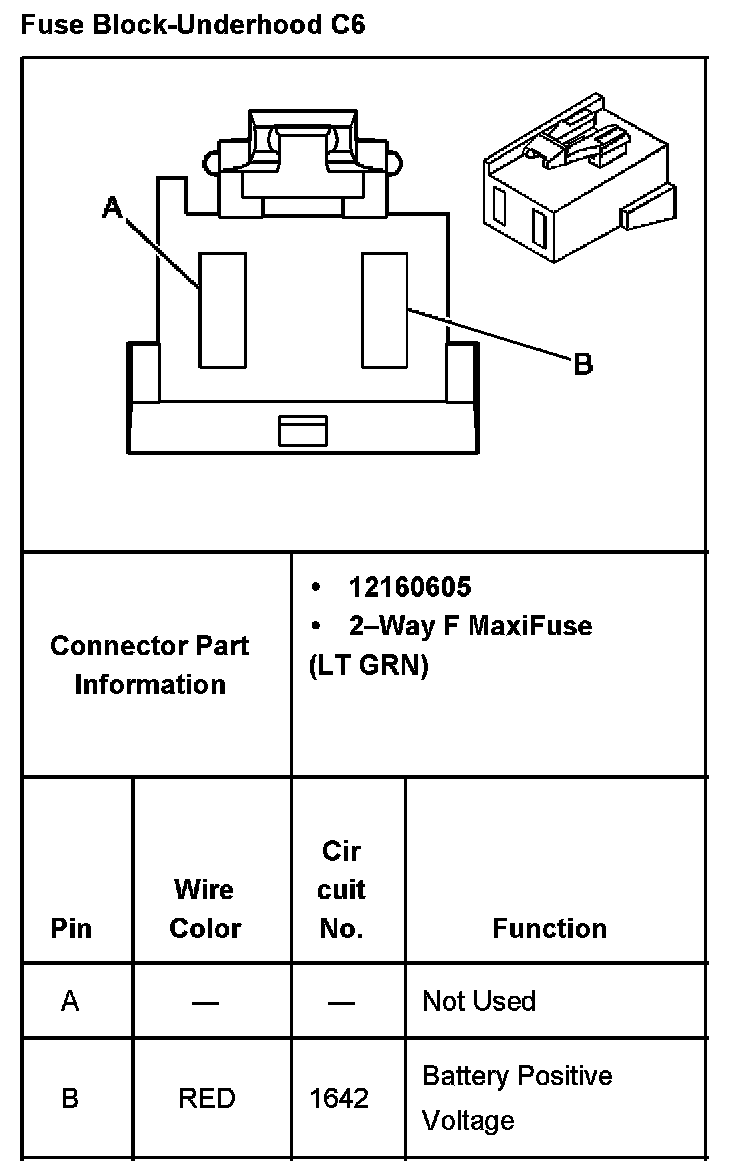

Fuse Block Underhood C6:
