Home >> Chevrolet >> 2004 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> Radio C2

Radio C2

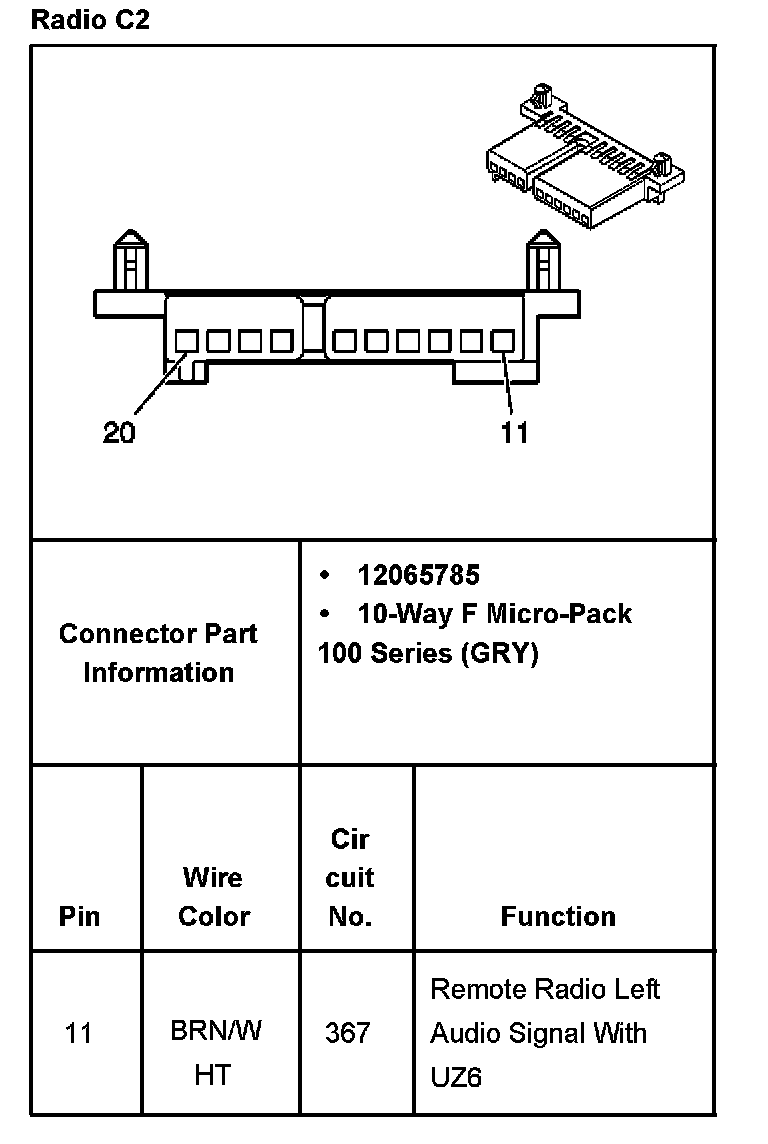

Radio C2 Part 1:

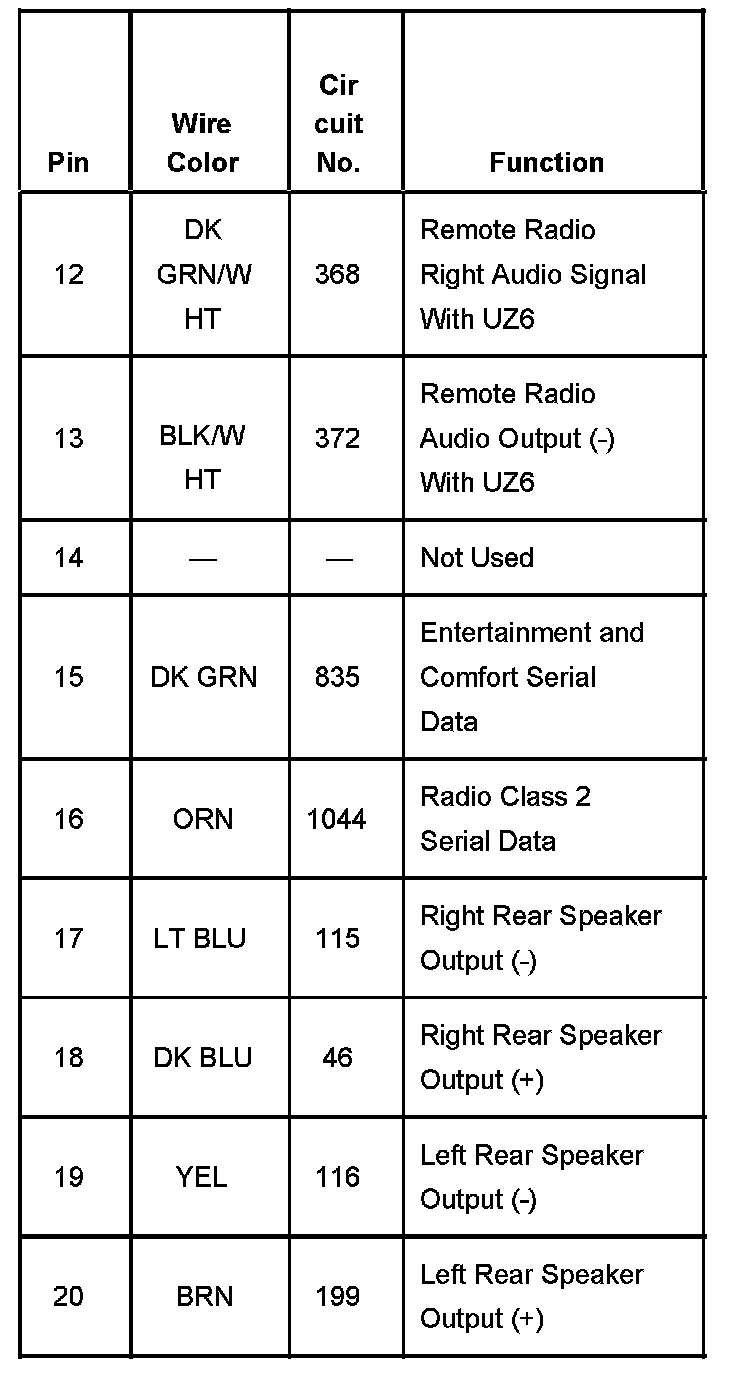

Radio C2 Part 2:
