Power Seat Relay

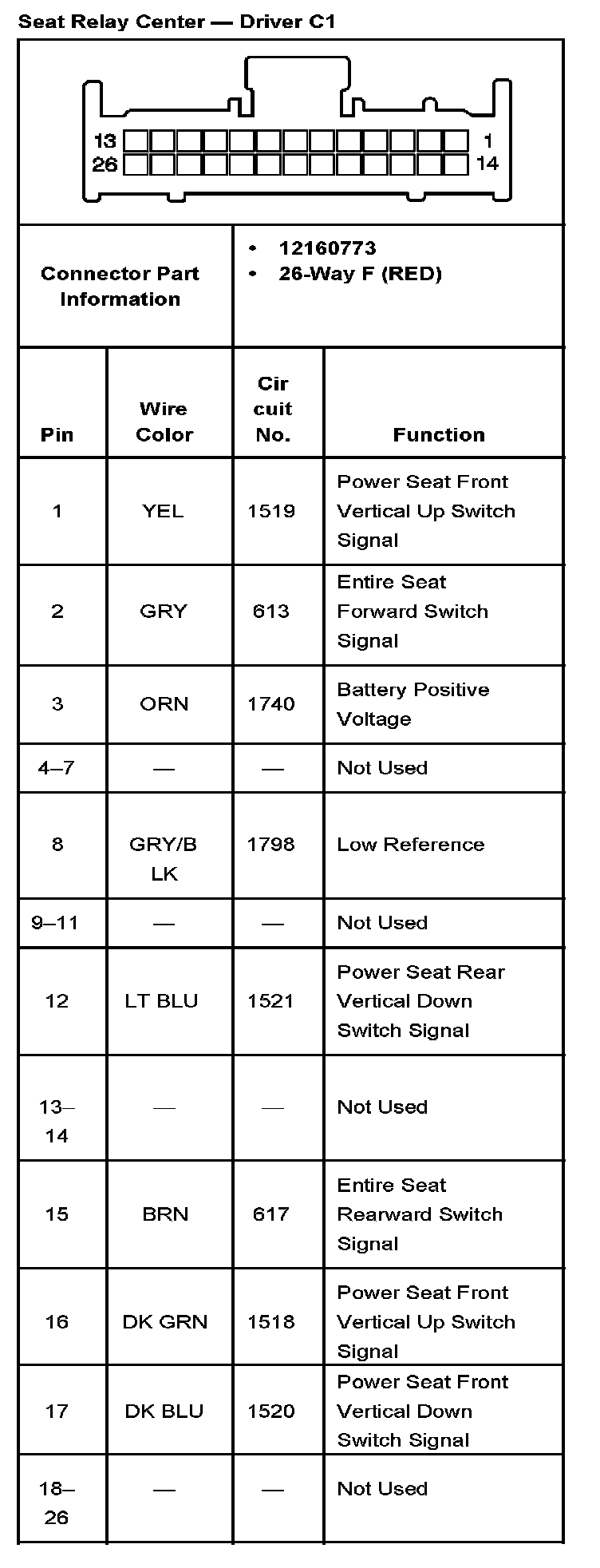

Seat Relay Center - Driver C1:

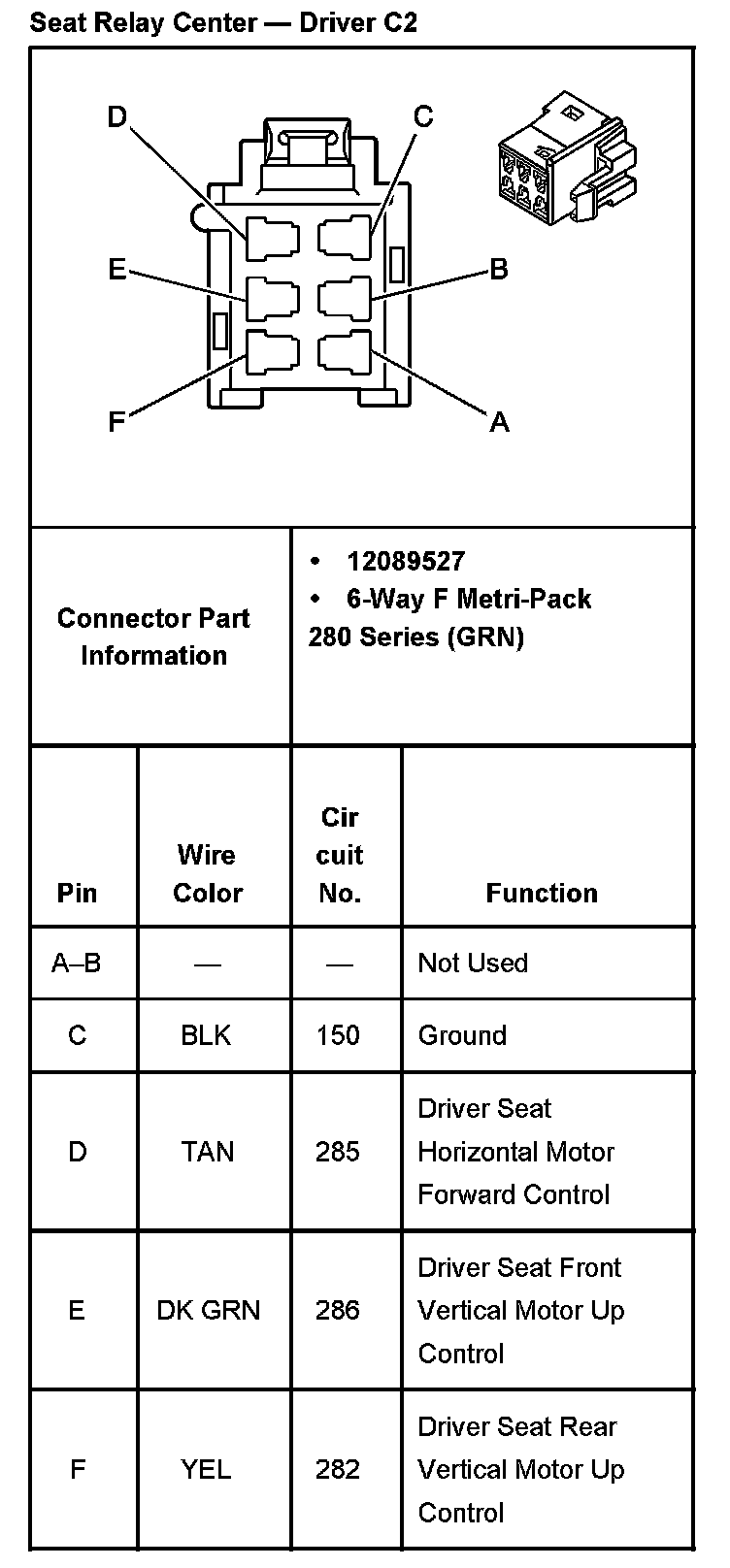

Seat Relay Center - Driver C2:

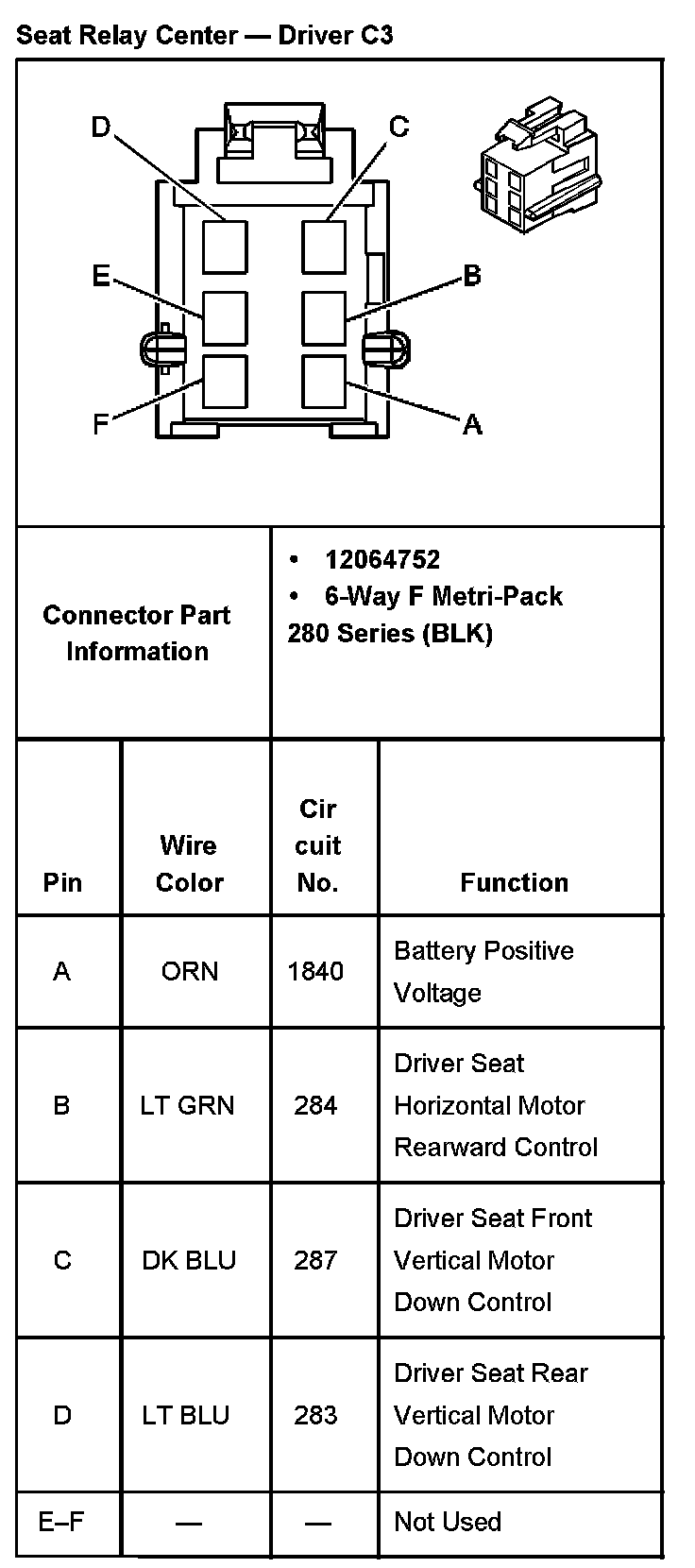

Seat Relay Center-Driver C3:

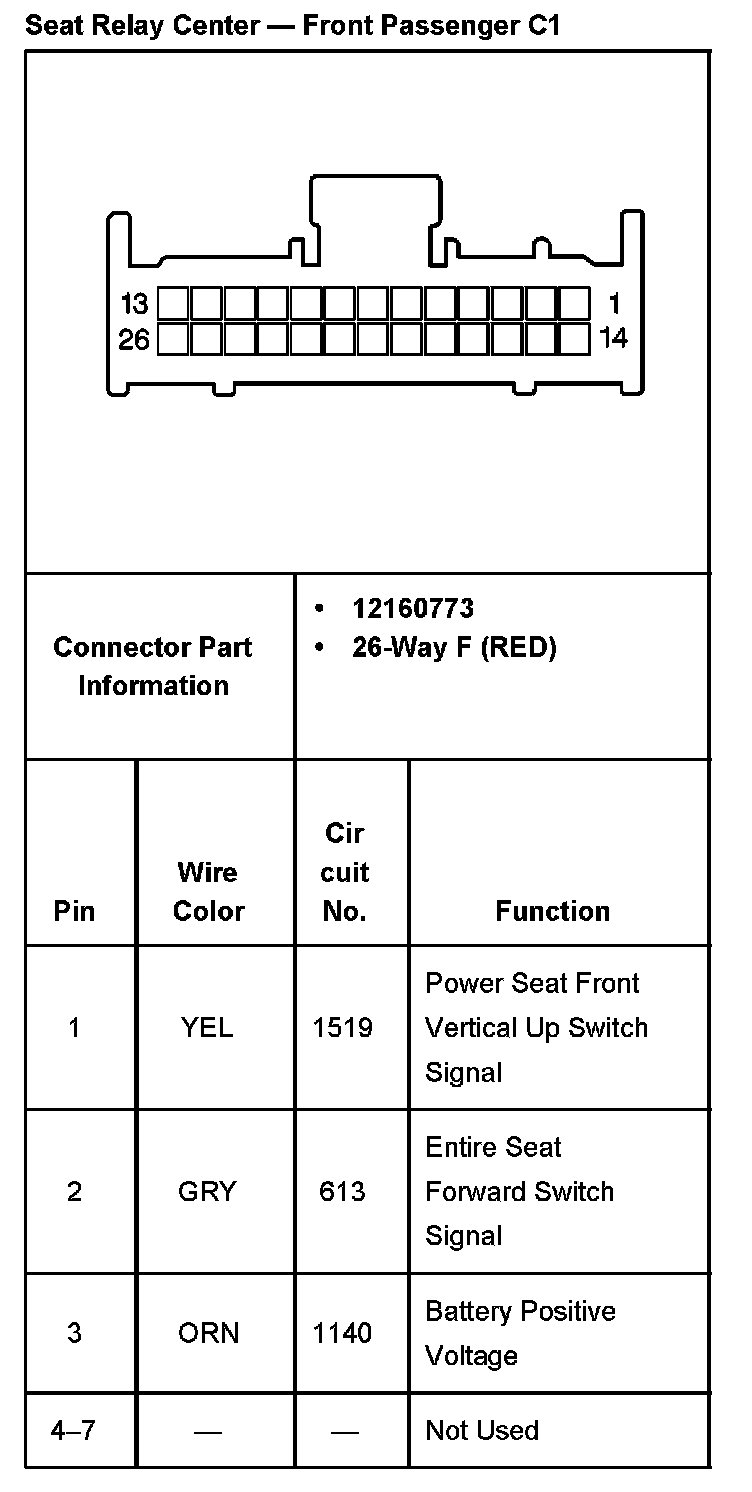

Seat Relay Center - Front Passenger C1 Part 1:

Seat Relay Center - Front Passenger C1 Part 2:

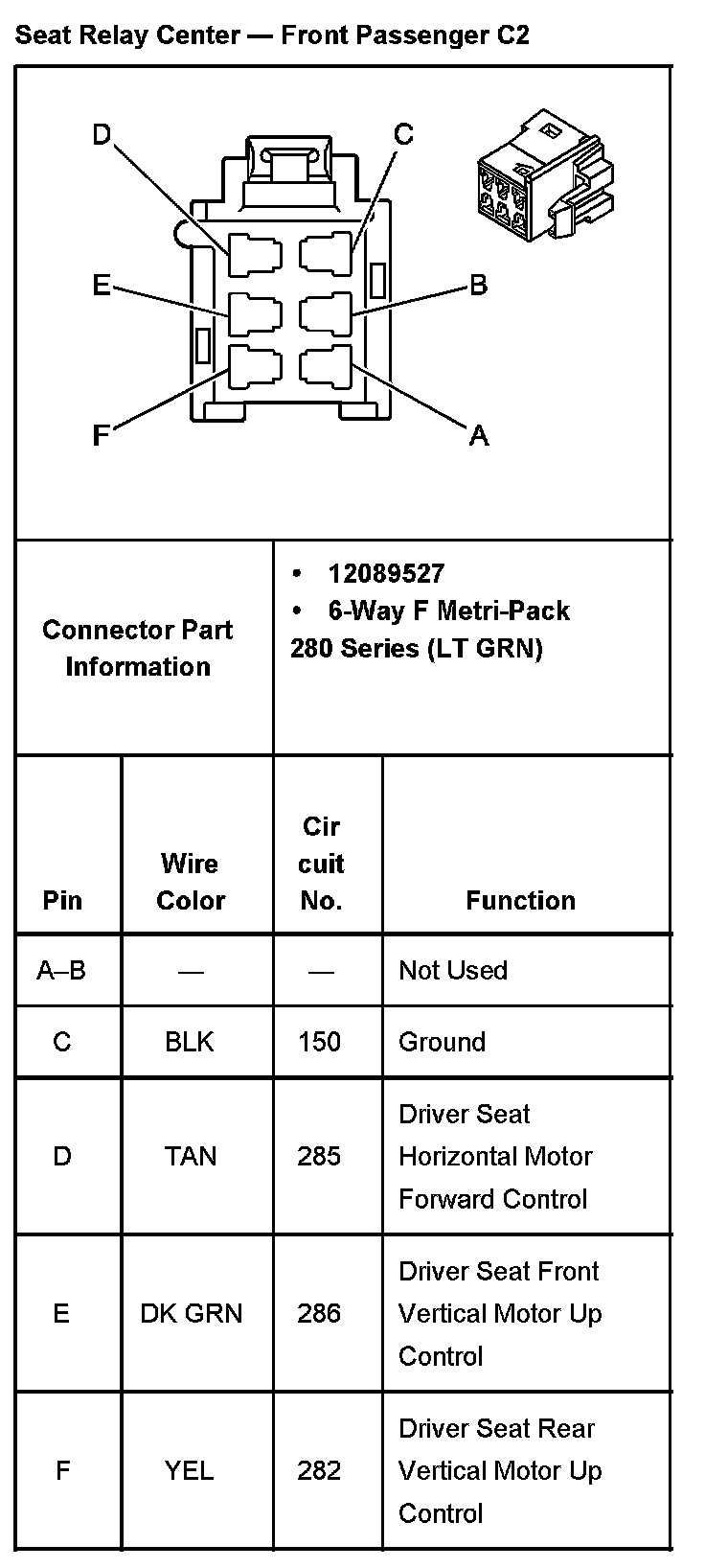

Seat Relay Center - Front Passenger C2 Part 1:

Seat Relay Center - Front Passenger C3:
