Shift Solenoid, M/T

Manual Transmission Connector End Views

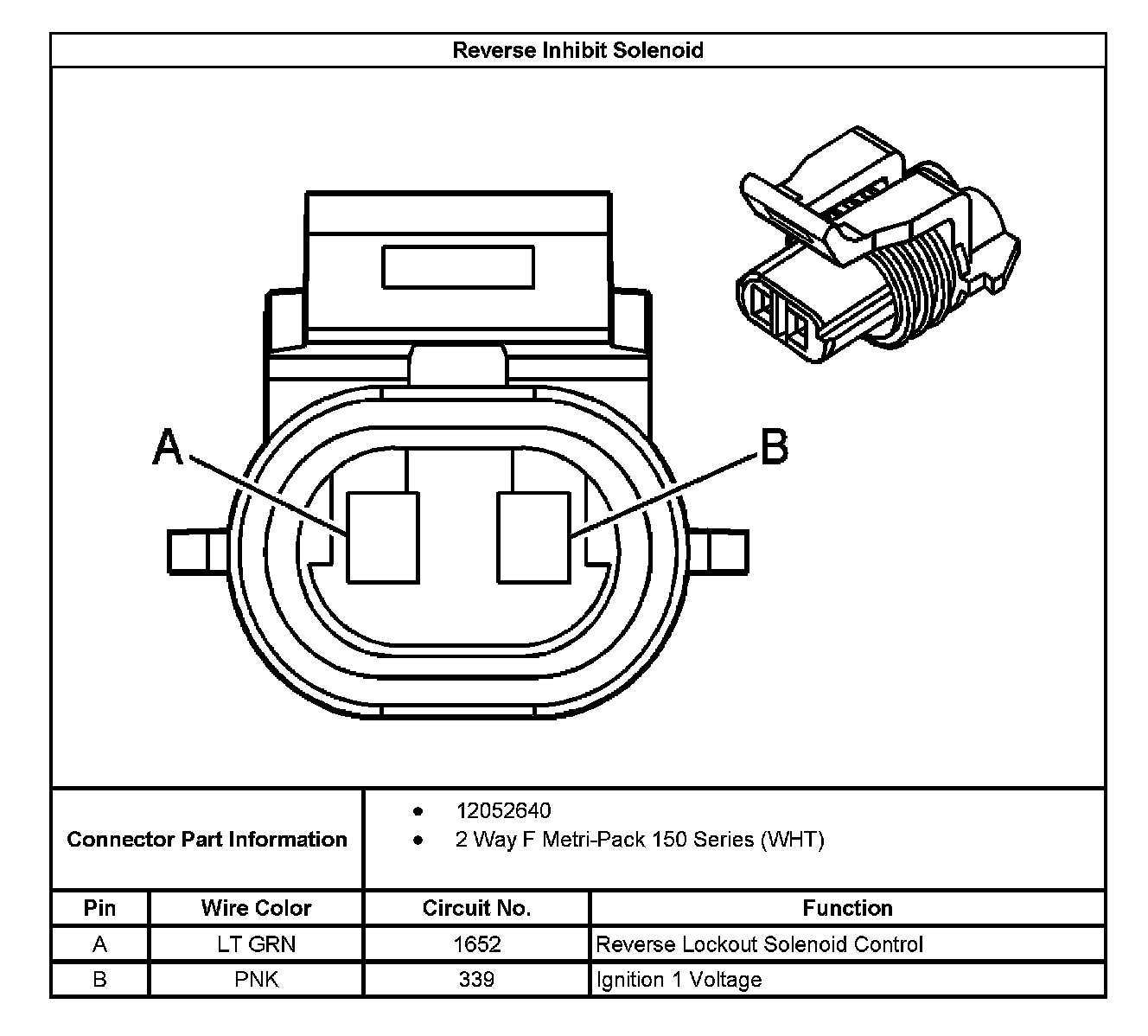

Reverse Inhibit Solenoid

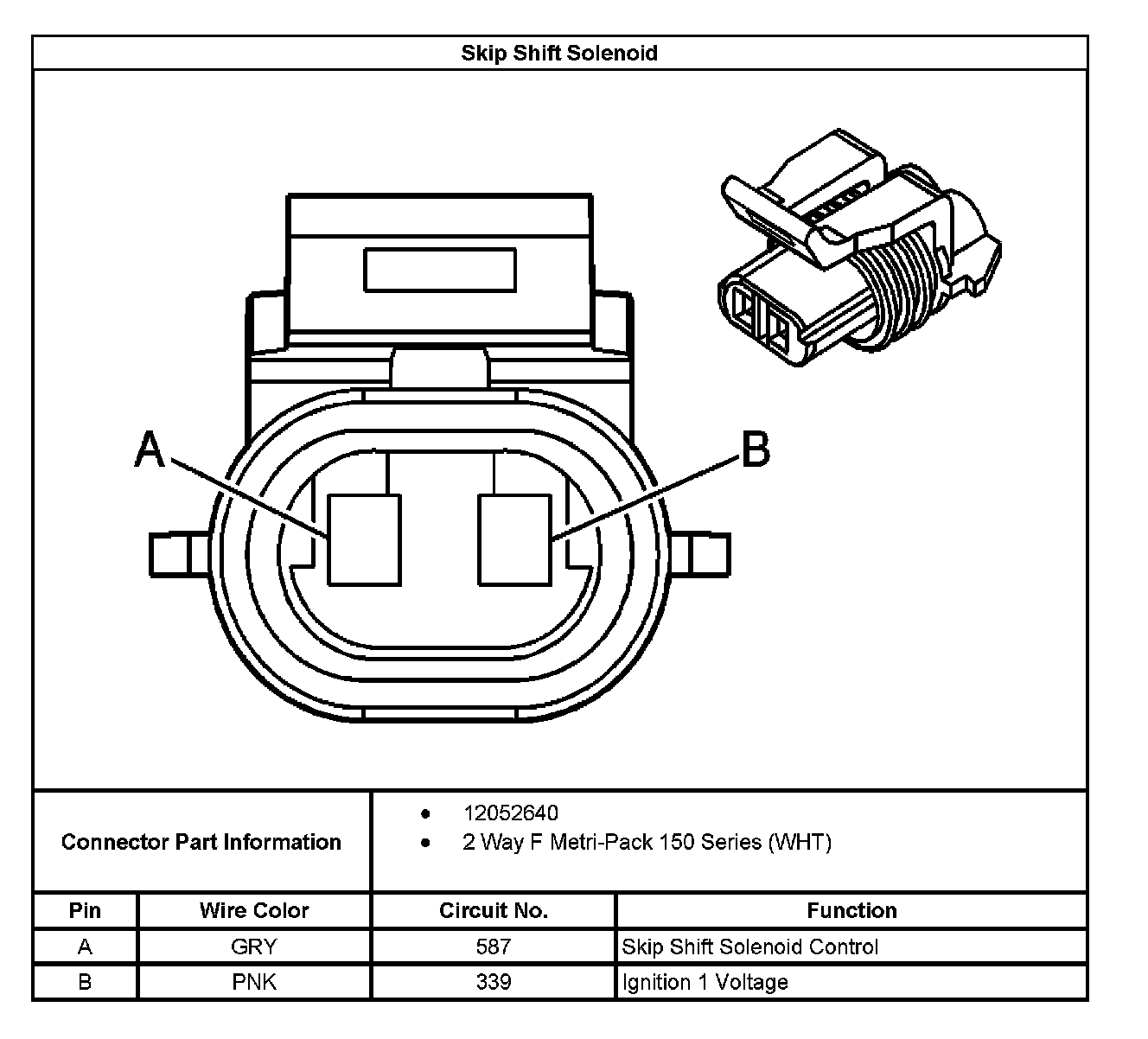

Skip Shift Solenoid
