Transmission Temperature Sensor/Switch, M/T
Manual Transmission Connector End Views

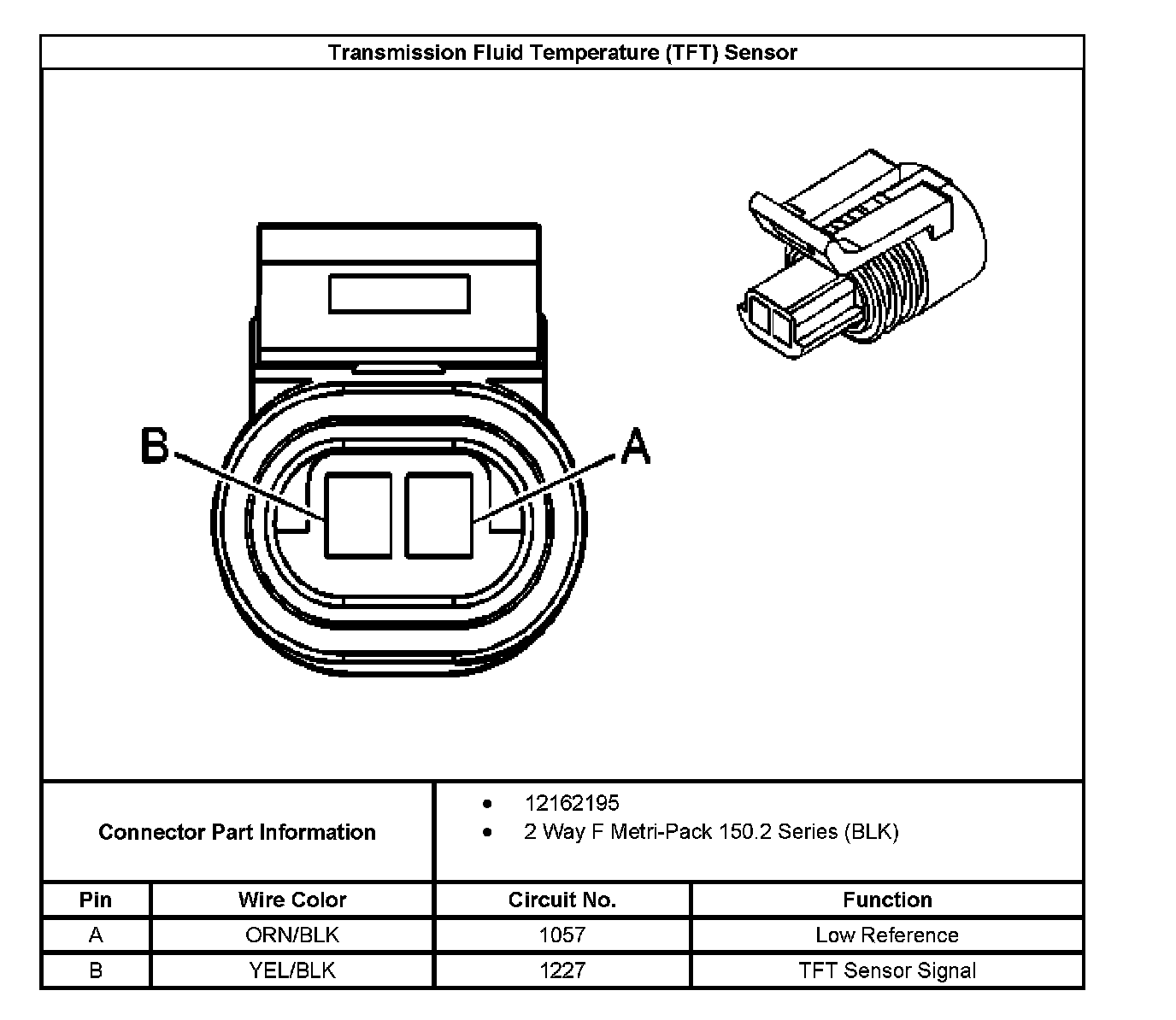

Transmission Fluid Temperature (TFT) Sensor
