Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2004
>>
Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Vehicle Speed Sensor
>>
Tremec 6-Speed
Tremec 6-Speed
Manual Transmission Connector End Views

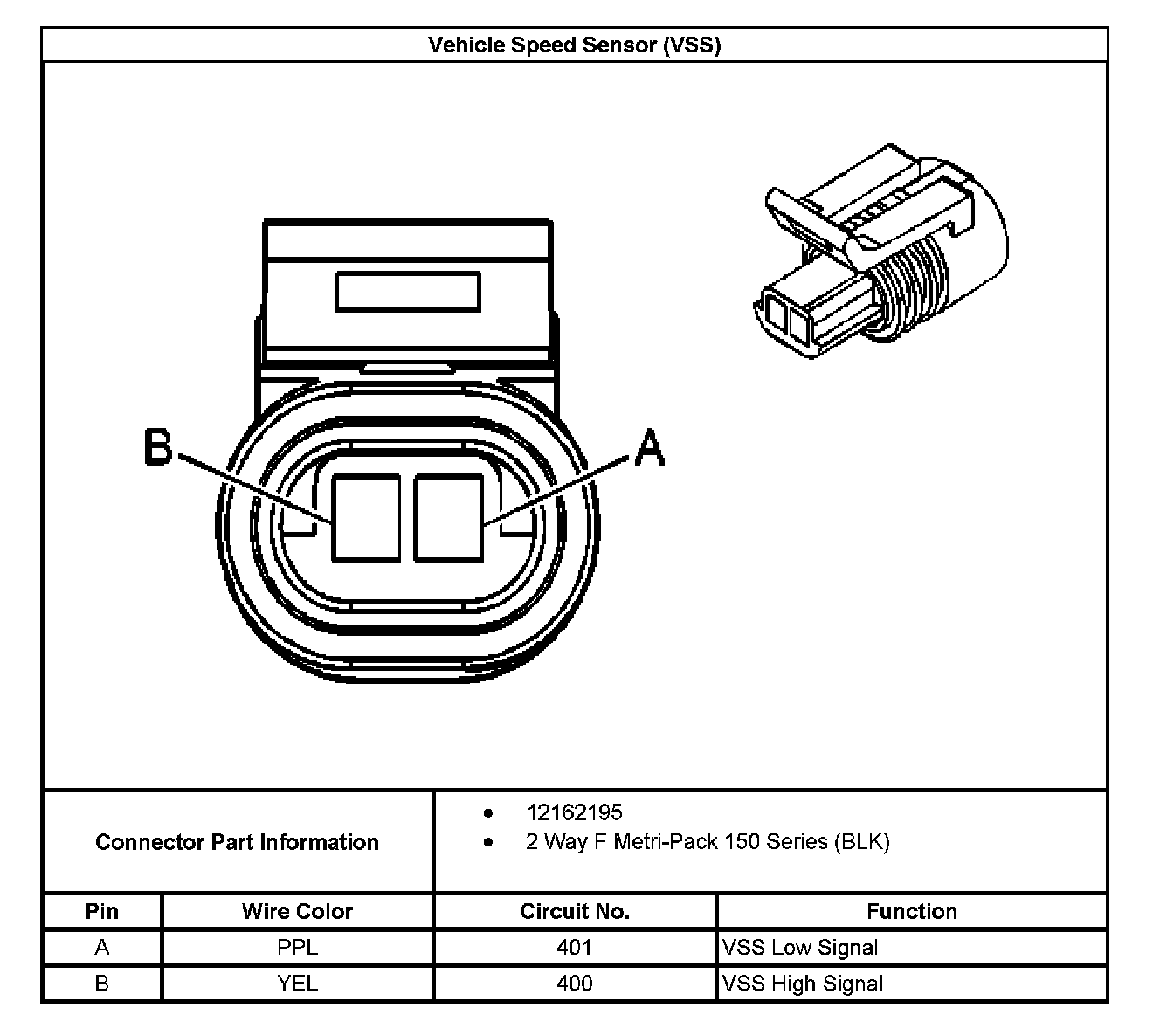

Vehicle Speed Sensor (VSS)
