Master Connector List
Master Connector List

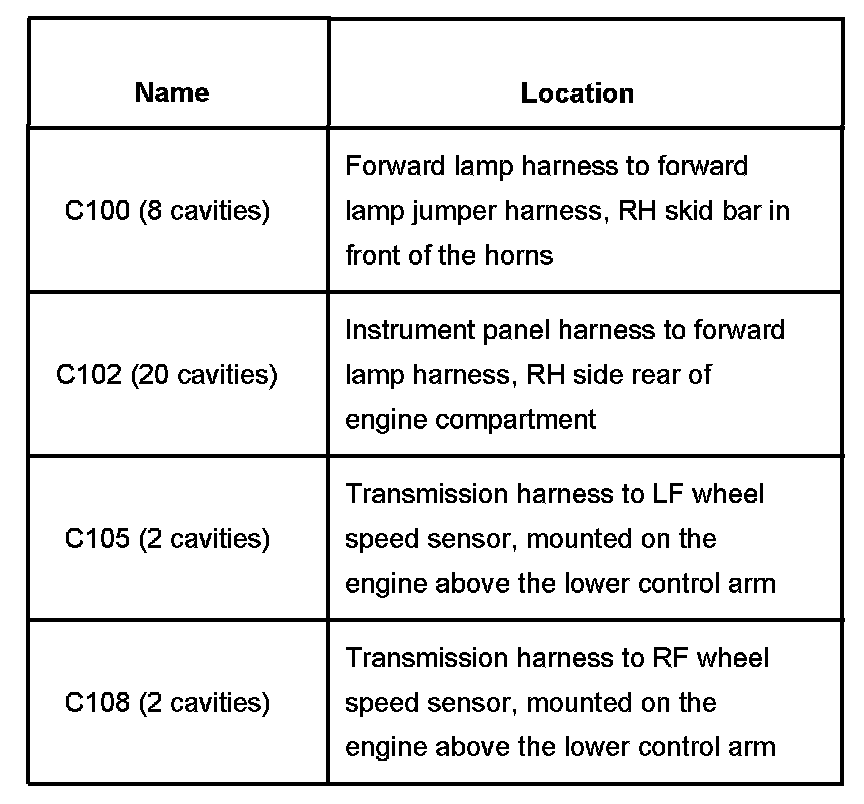

C100 - C108:

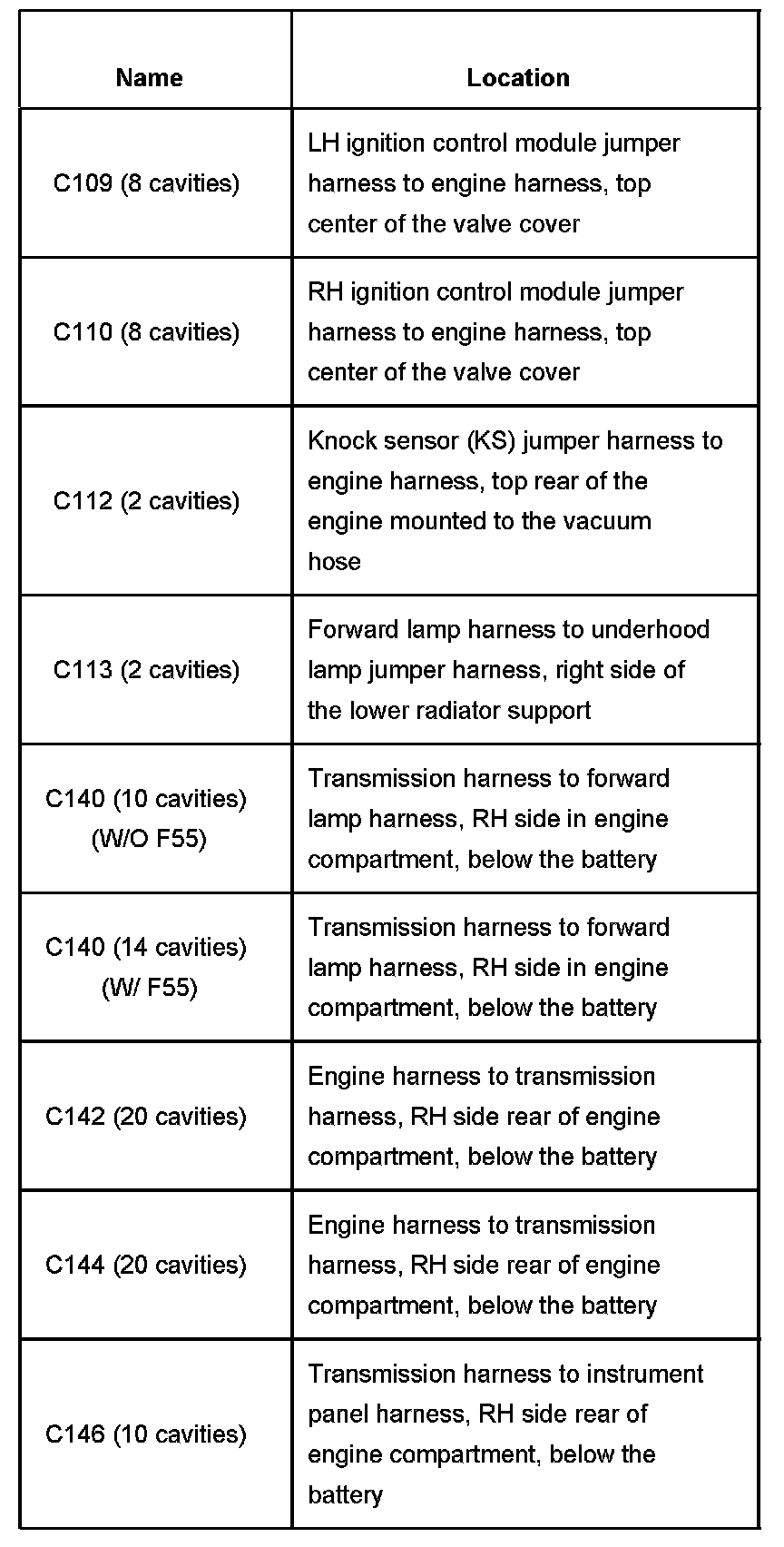

C109 - C146:

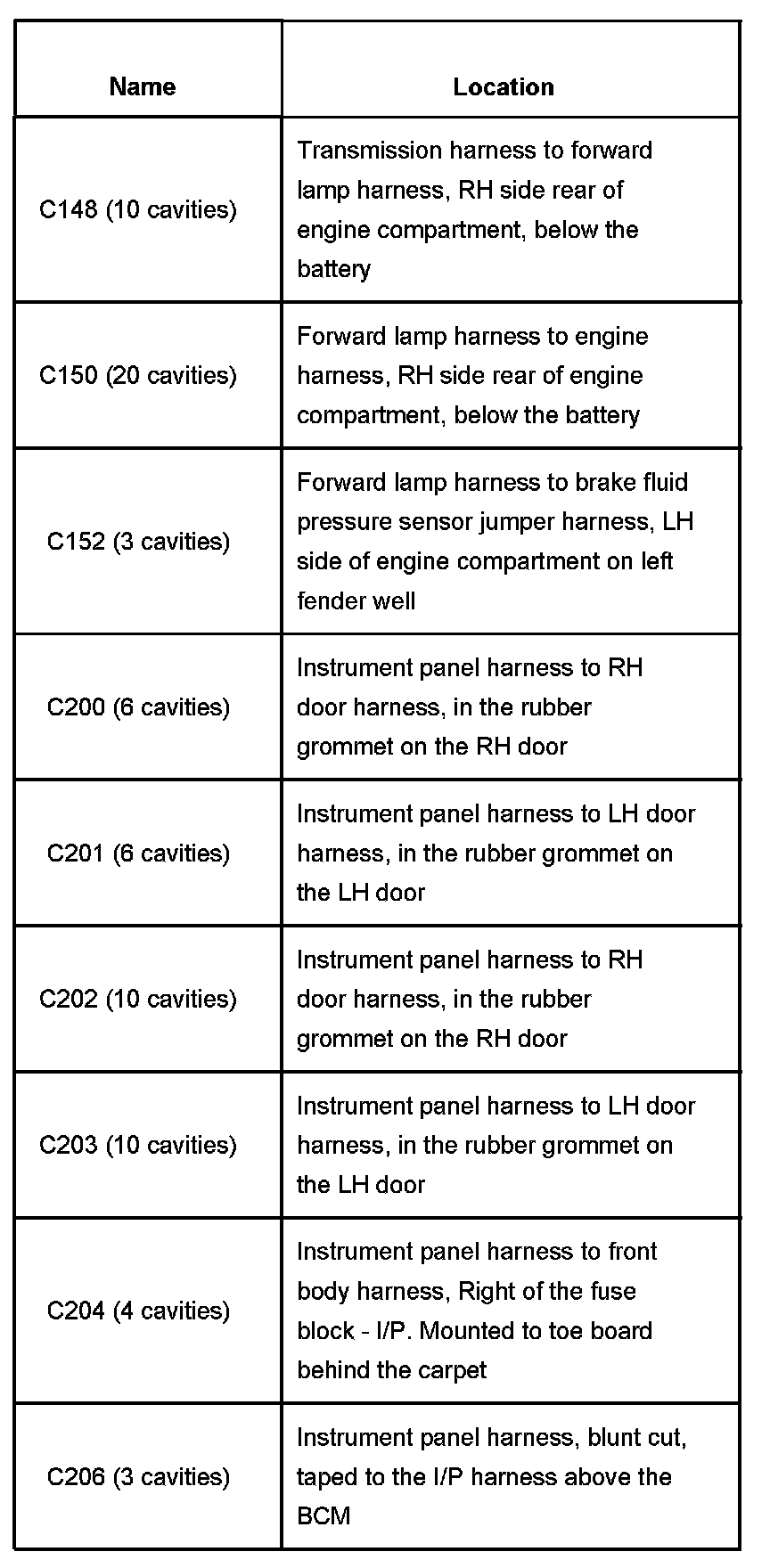

C148 - C206:

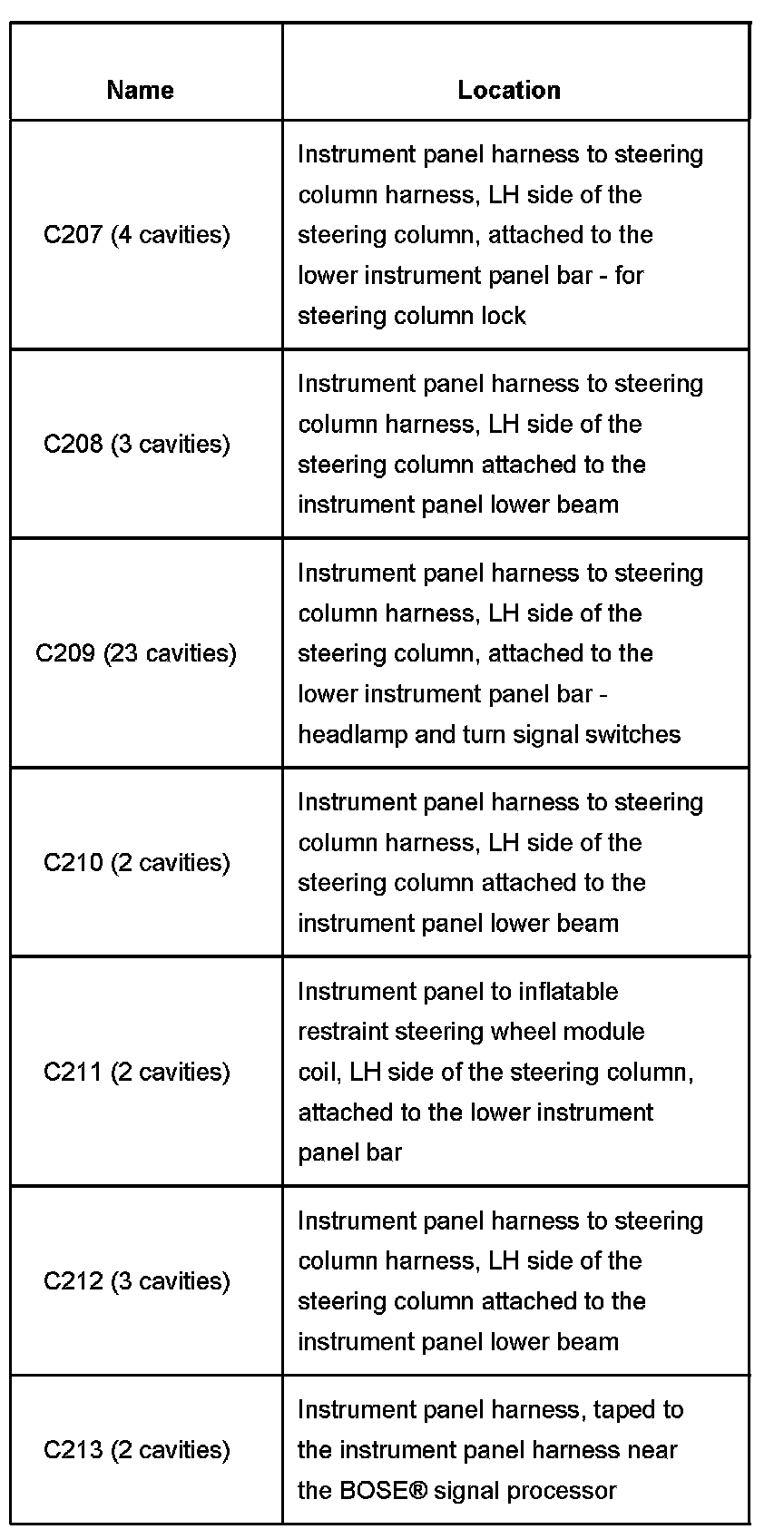

C207 - C213:

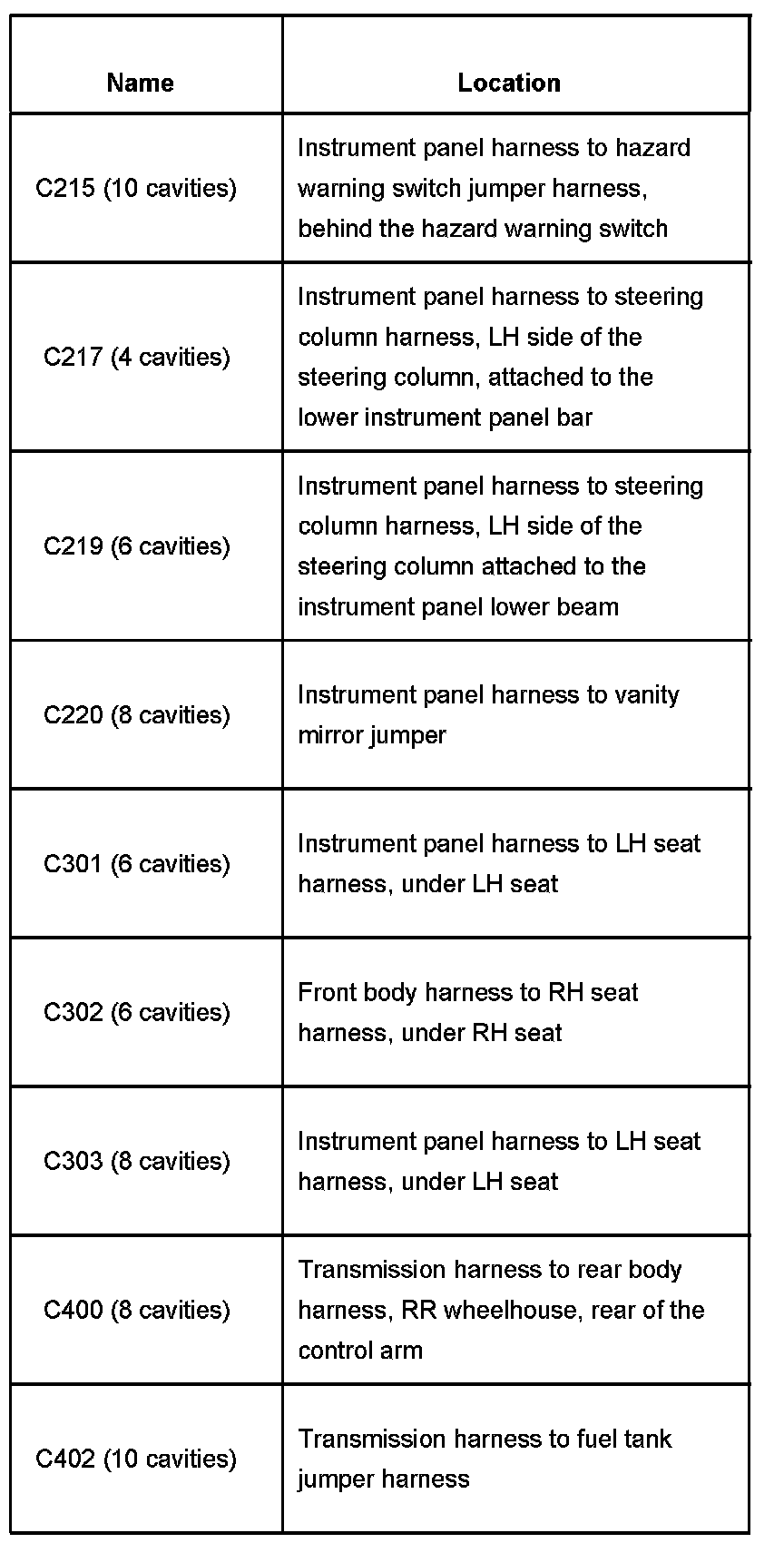

C215 - C402:
C403 - C414:
