Suspension Control ( Automatic - Electronic )
>>
Suspension Controls Diagrams (Power, Ground, DLC, and Controls)
Suspension Controls Diagrams (Power, Ground, DLC, and Controls)

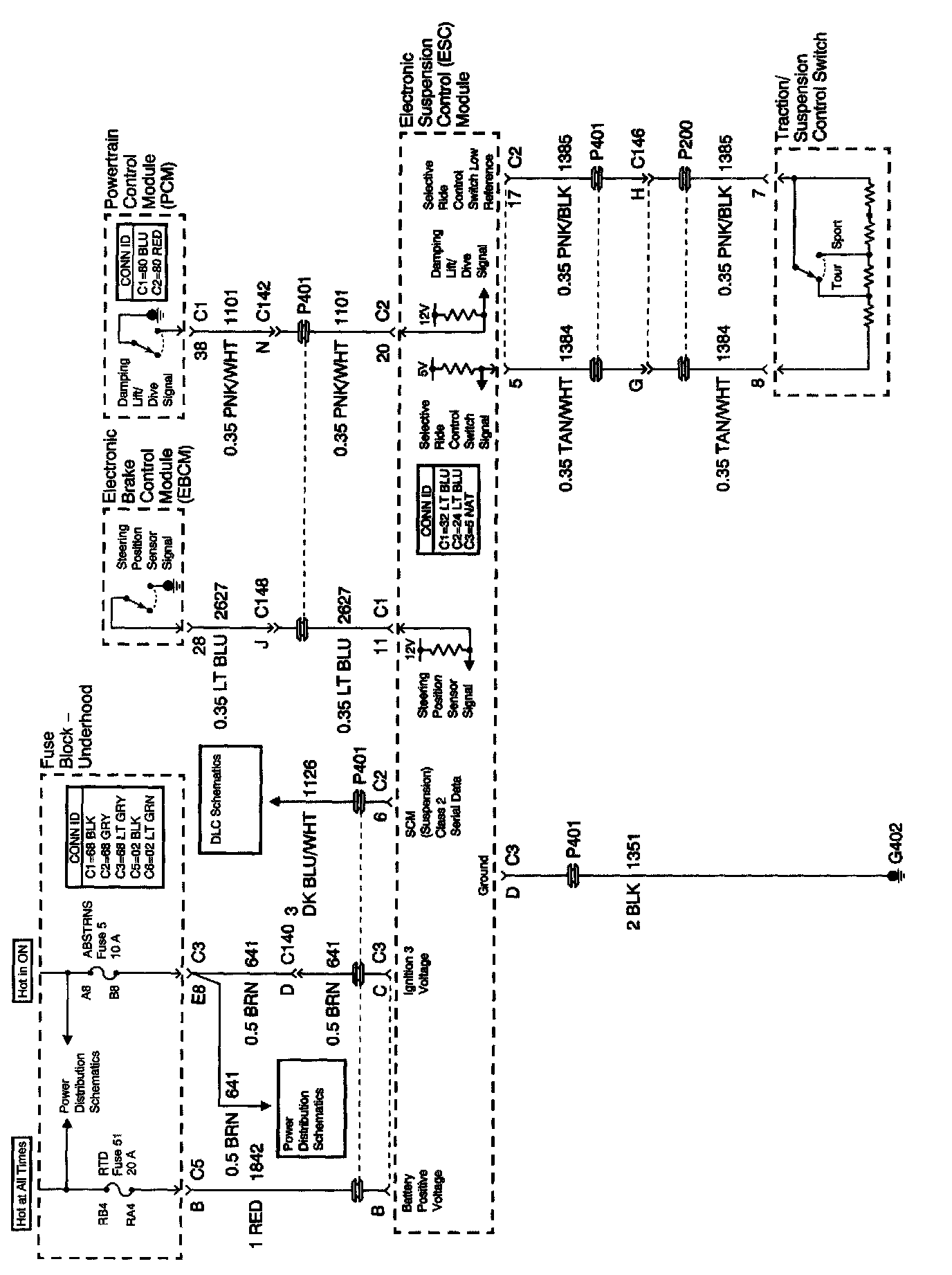

Suspension Controls Diagrams (Power, Ground, DLC, and Controls):
