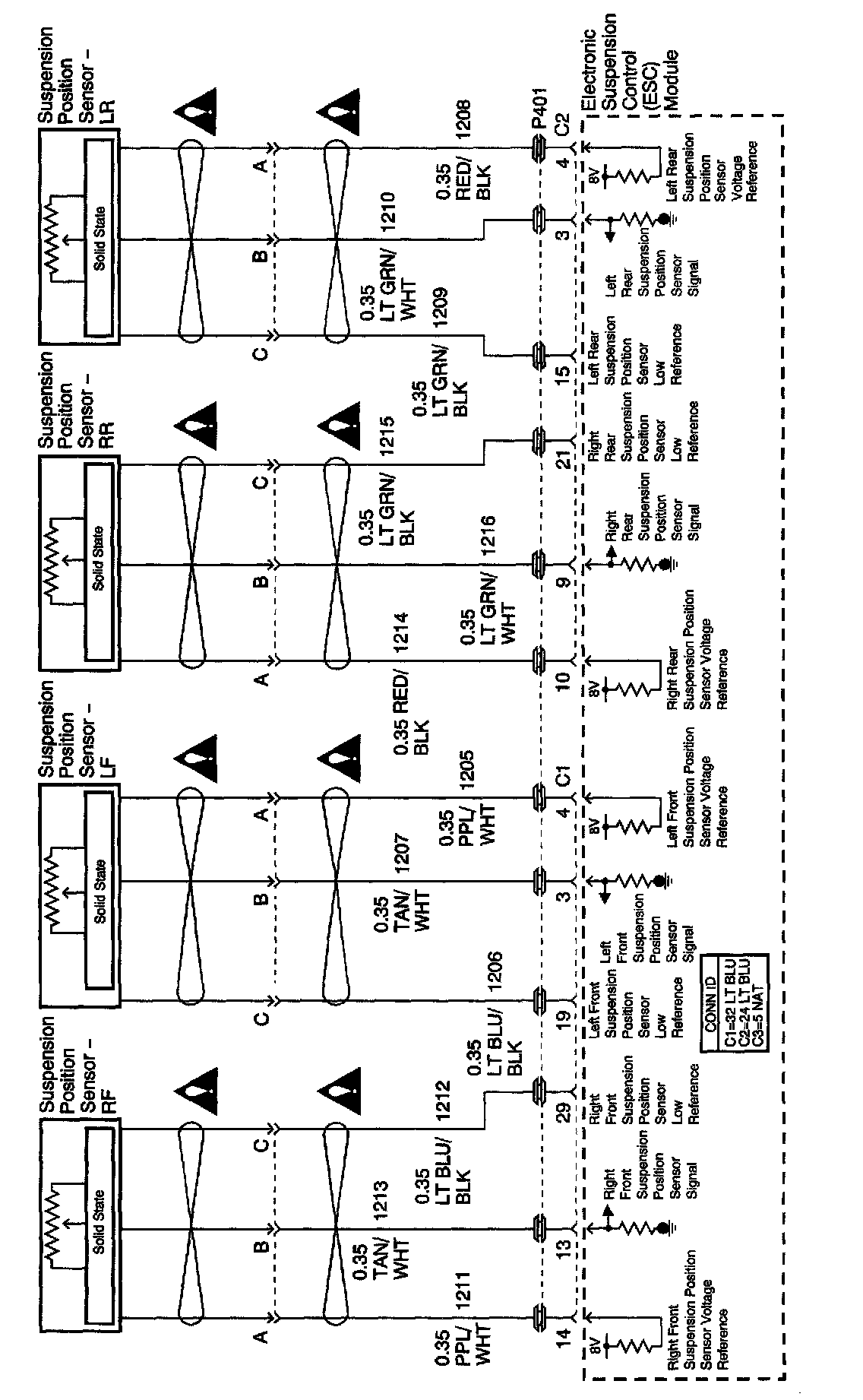

Suspension Controls Diagrams (Suspension Position Sensors)

Suspension Controls Diagrams (Suspension Position Sensors):
