Home
>>
Chevrolet
>>
2004
>>
Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
Transmission Cases
Transmission Cases
Transmission Component Location (Y Car)

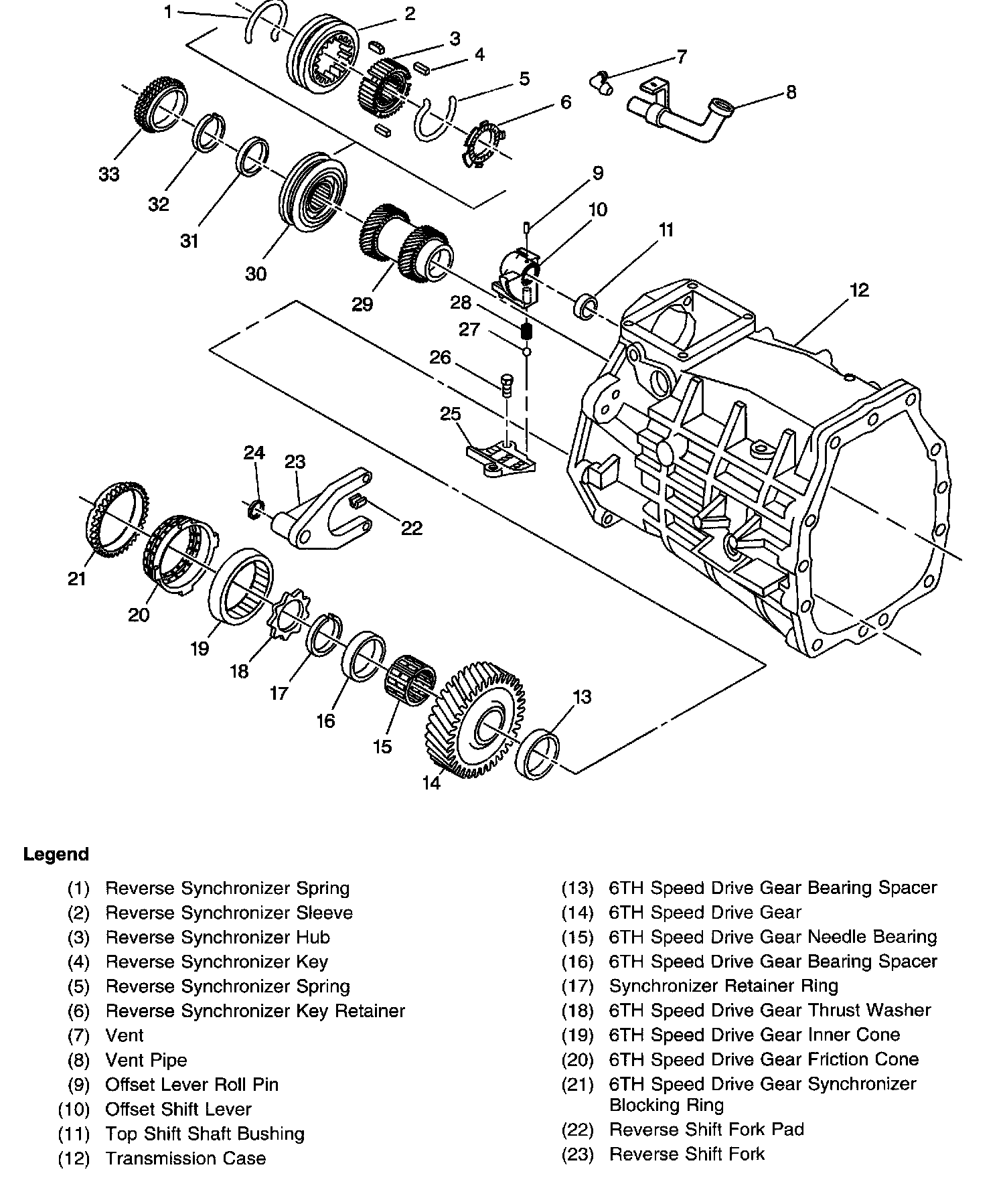

Transmission Case (1 of 2)
Transmission Case (2 of 2)
