Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2004
>>
Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
Tremec 6-Speed (MM6/M12)
Tremec 6-Speed (MM6/M12)

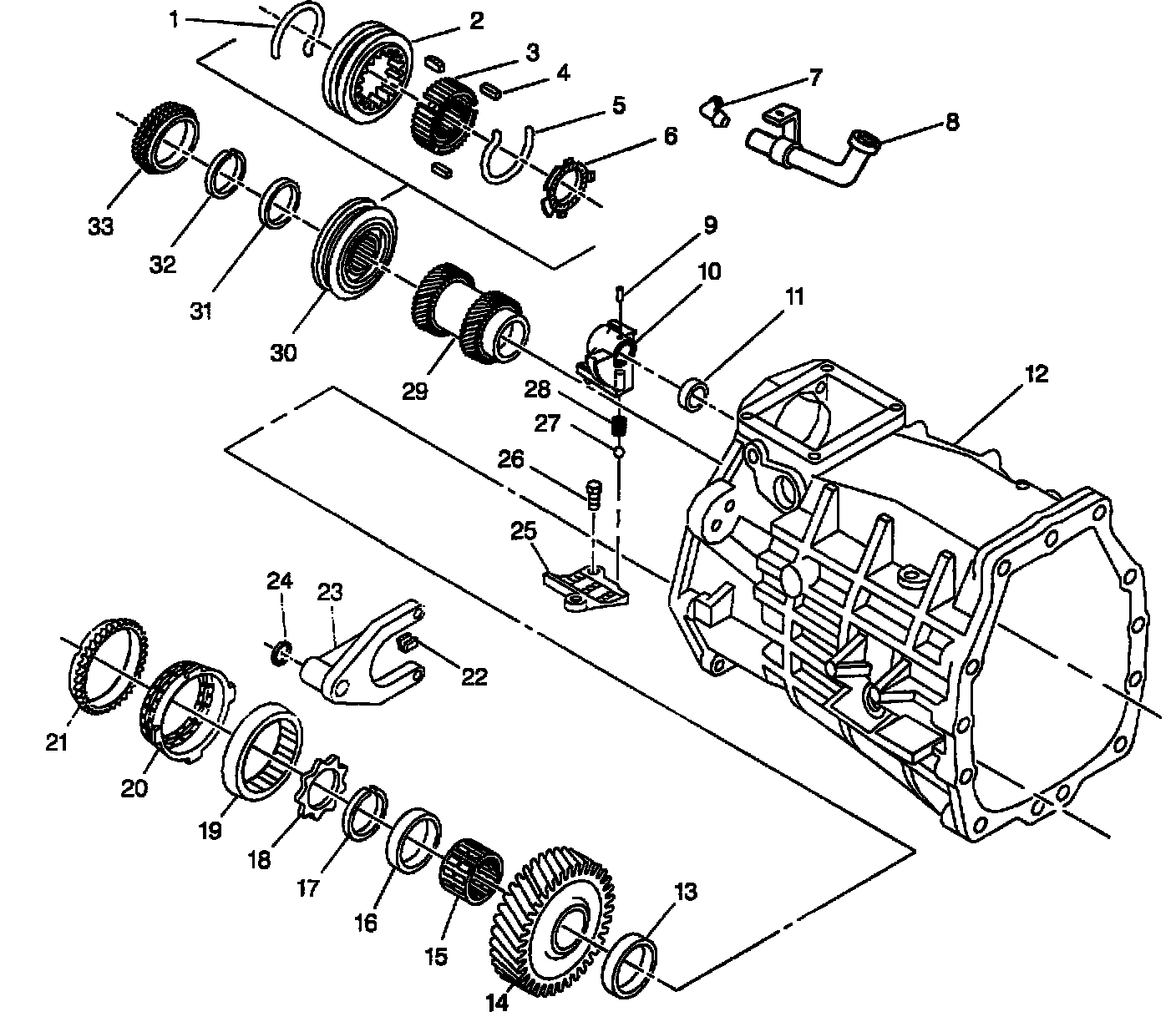

Transmission Case (Part 1)
Transmission Case (Part 2)
Adapter Plate and Gears

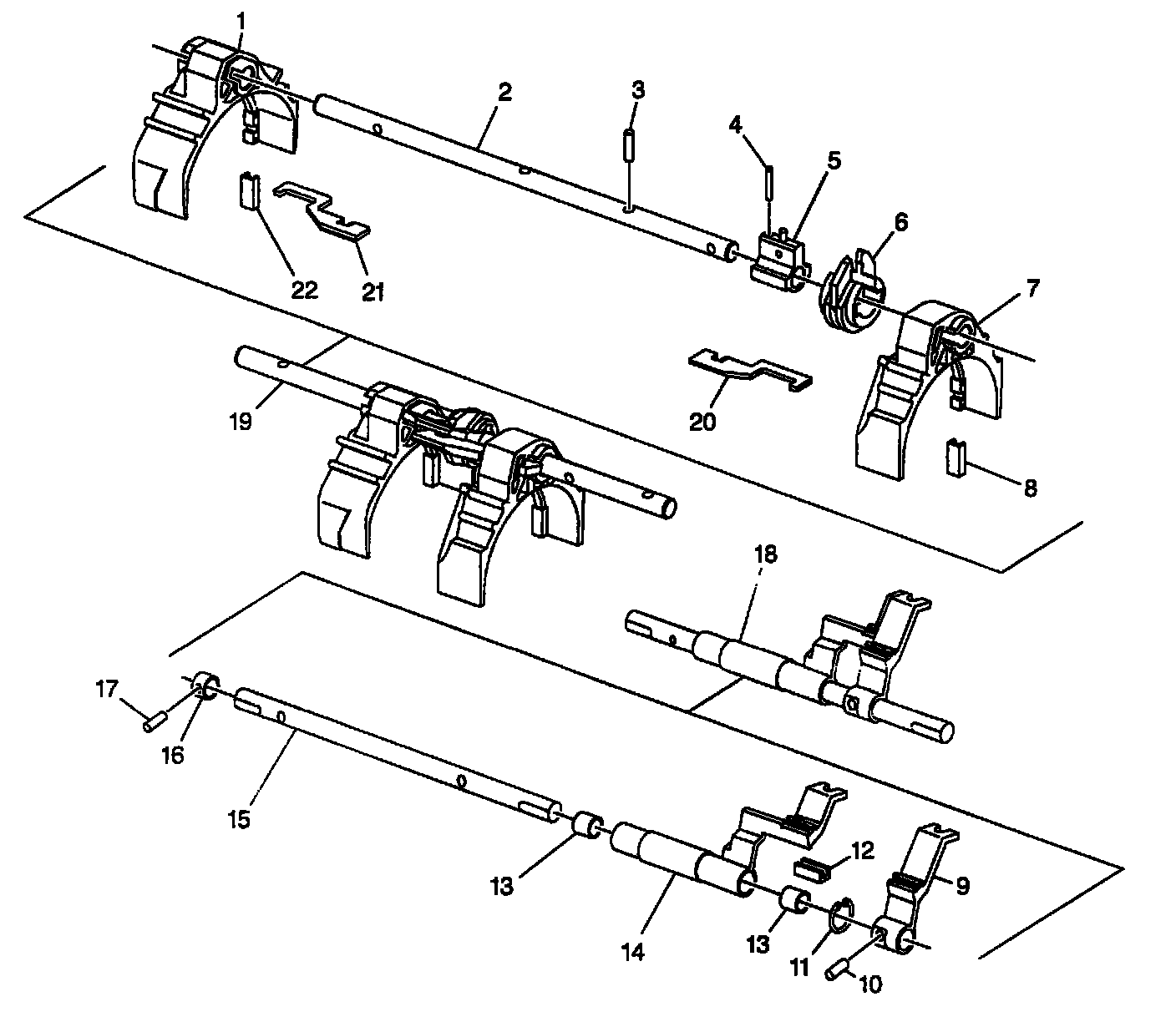

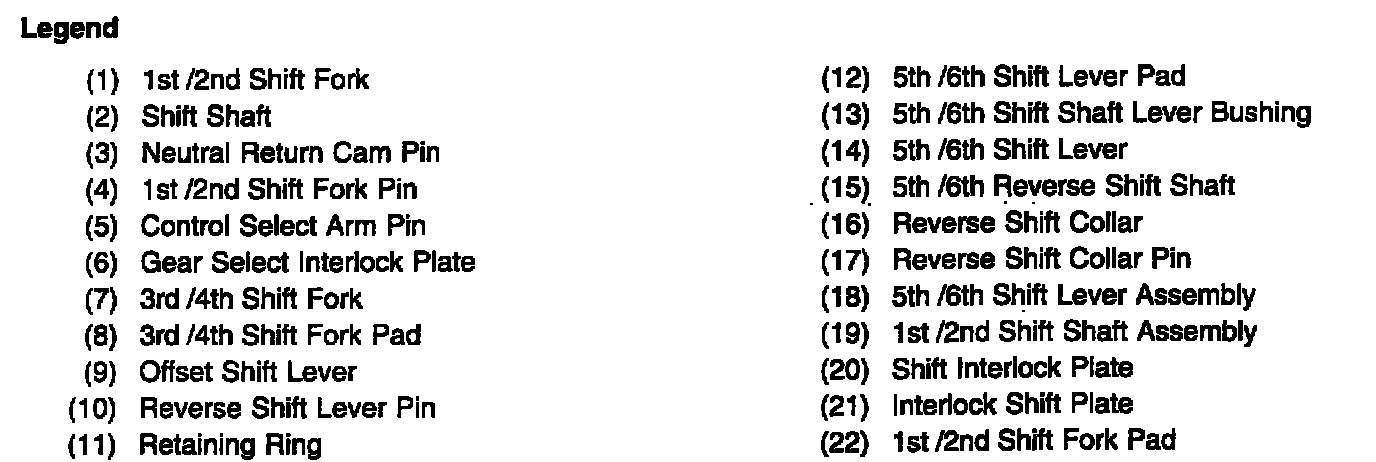

Shift Shafts
