Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2004
>>
Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>
Master Ground List
Master Ground List

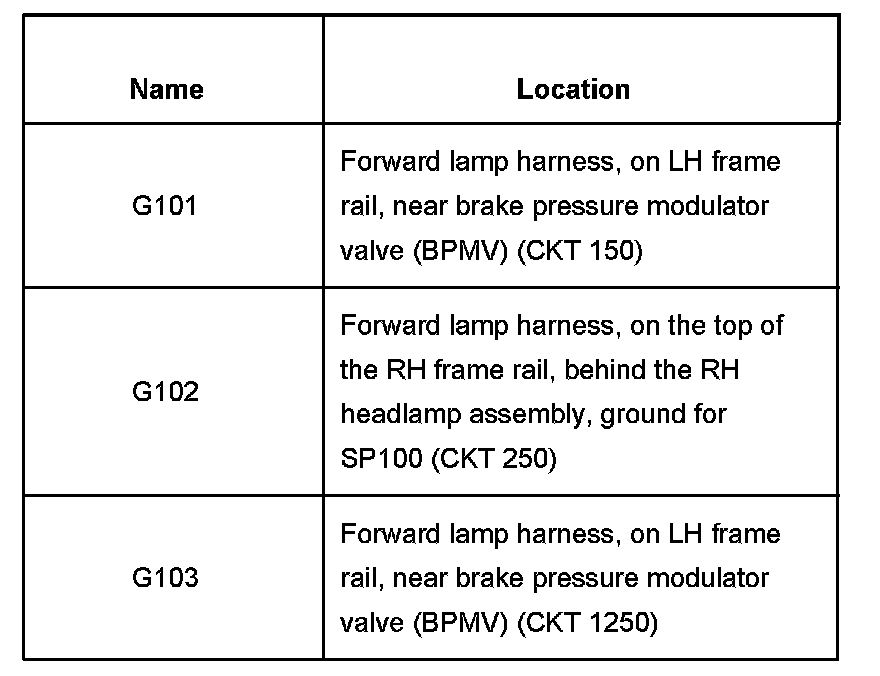

G101 - G103:

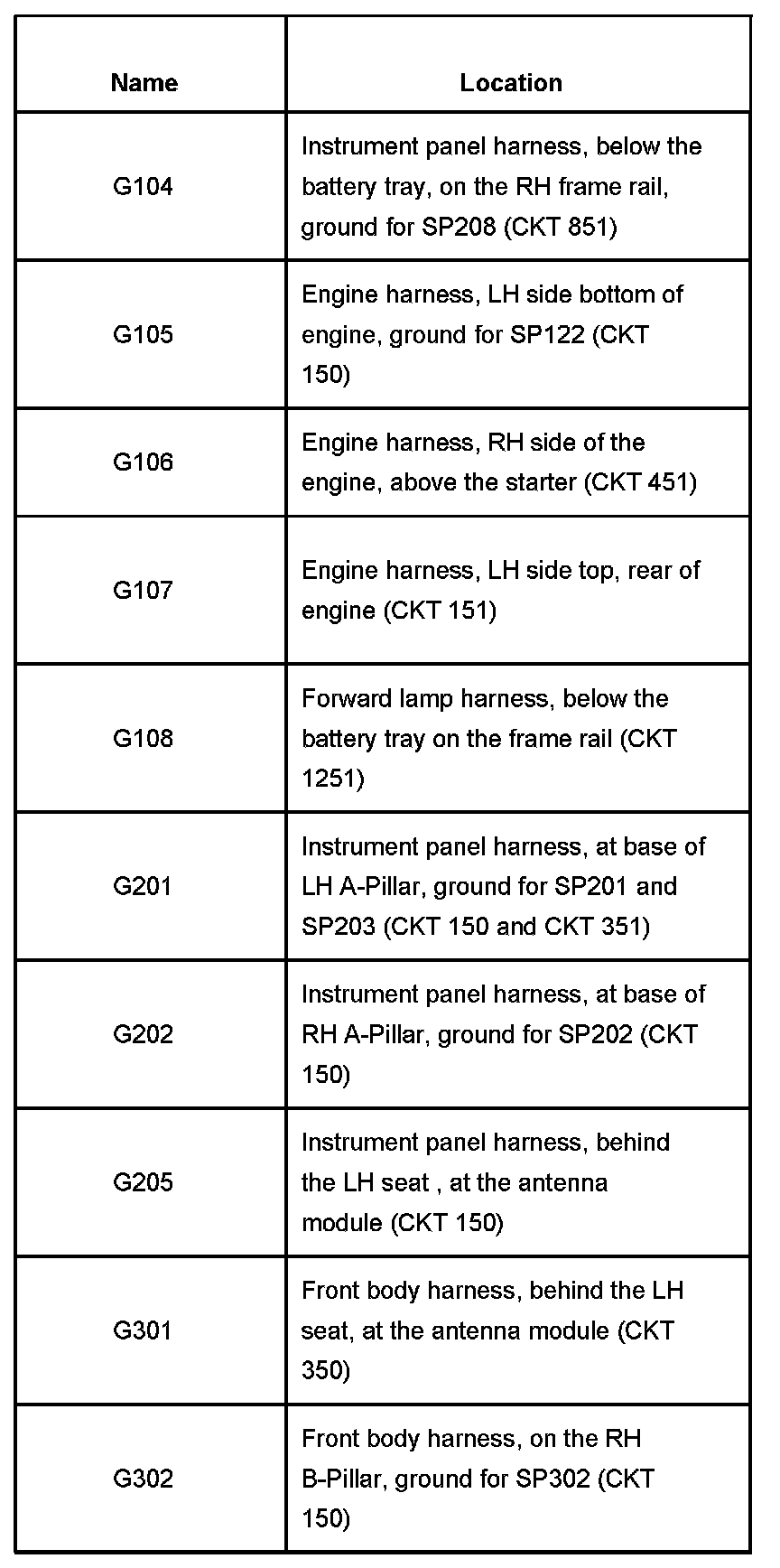

G104 - G302:

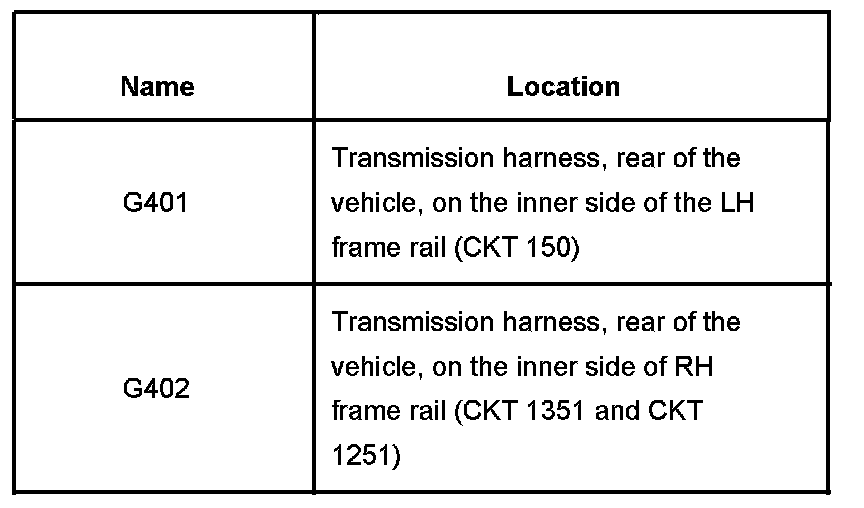

G401 - G402:
