Master Splice/Splice Pack List
S100 - S104:
S105 - S200:
S201 - S210:

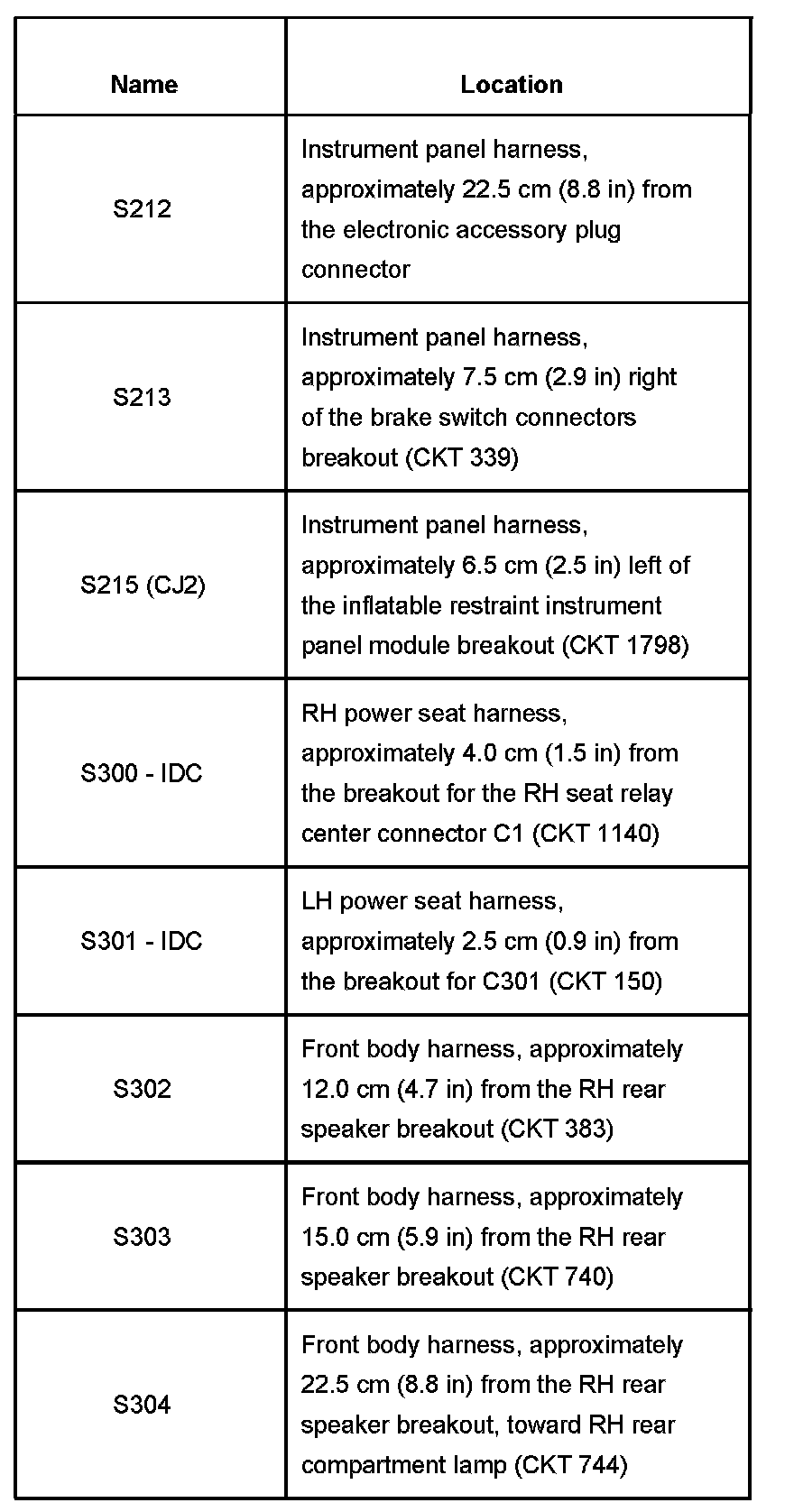

S212 - S304:
S308 - S408:
S410 - S485:

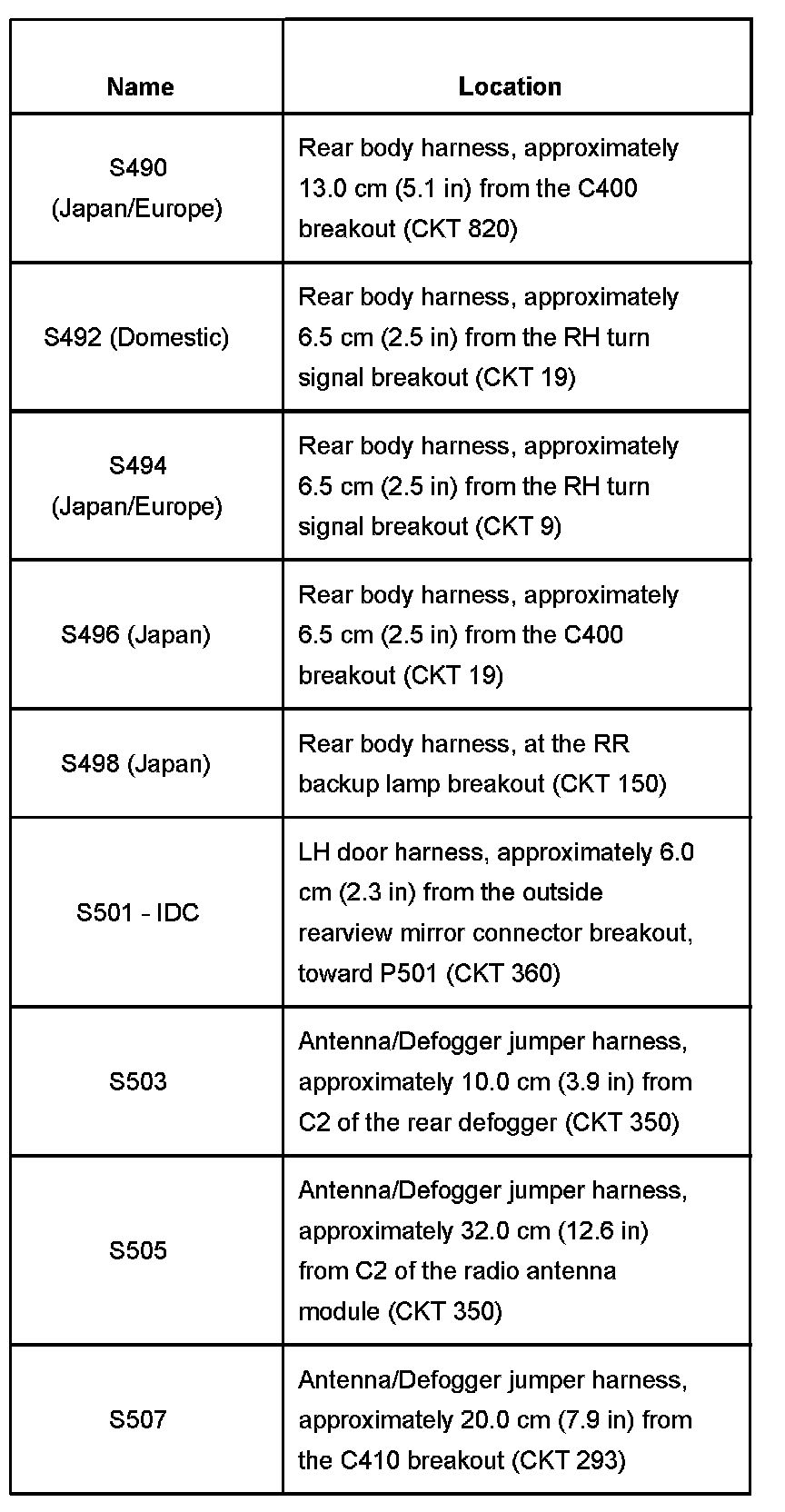

S490 - S507:

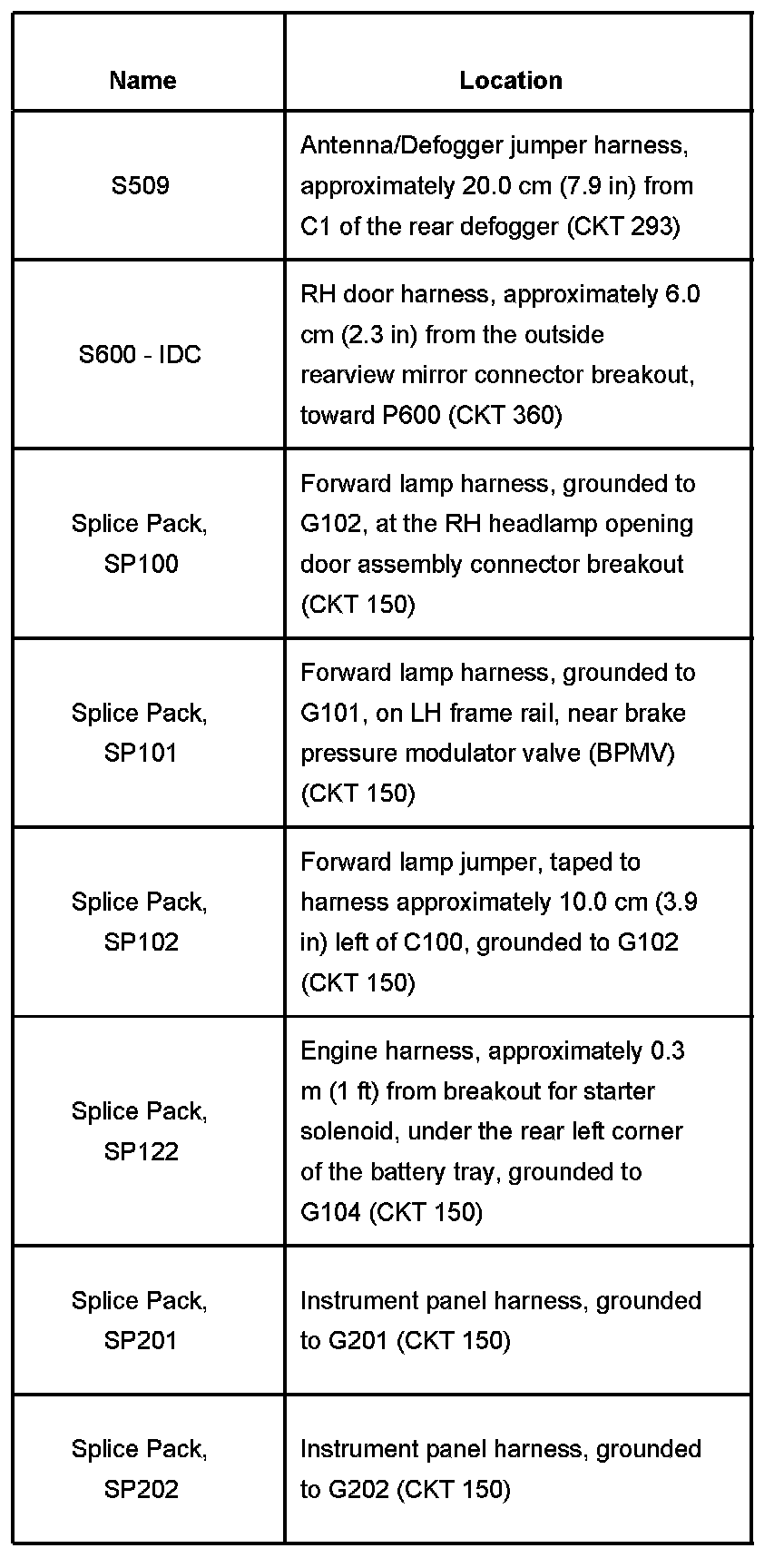

S509 - SP202:

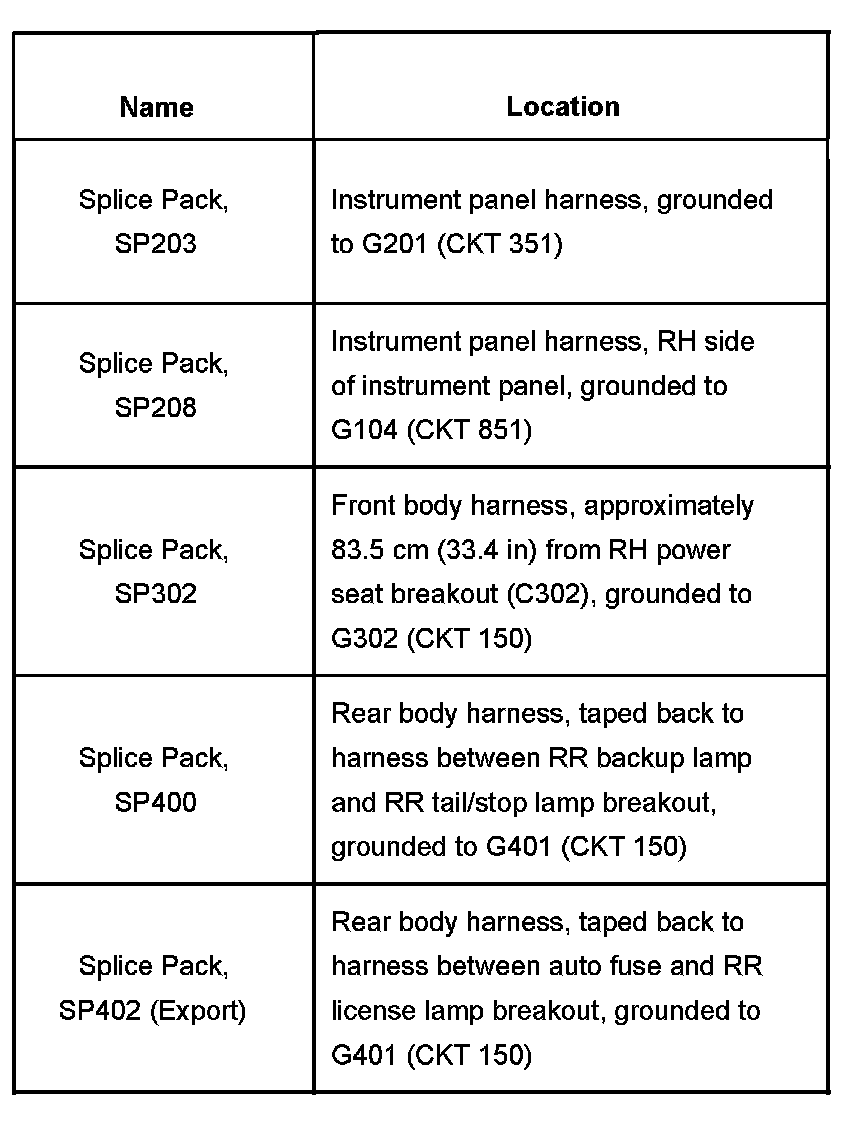

SP203 - SP402:
