Home
>>
Chevrolet
>>
2004
>>
Corvette V8-5.7L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>
Splice/Splice Packs By Number
>>
SP400 - SP499
>>
SP402
SP402

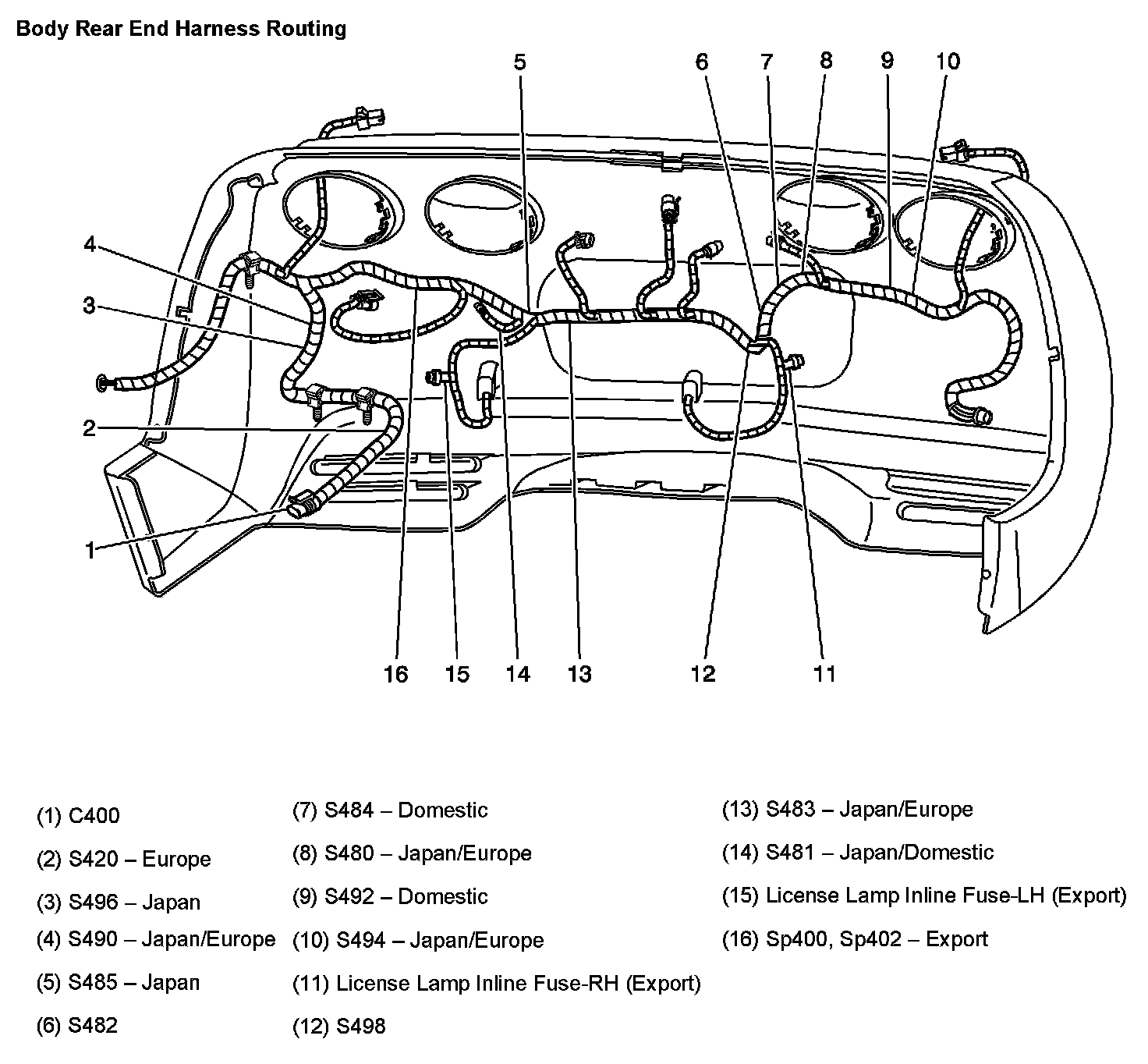

Body Rear End Harness Routing:
