Engine: Tools and Equipment

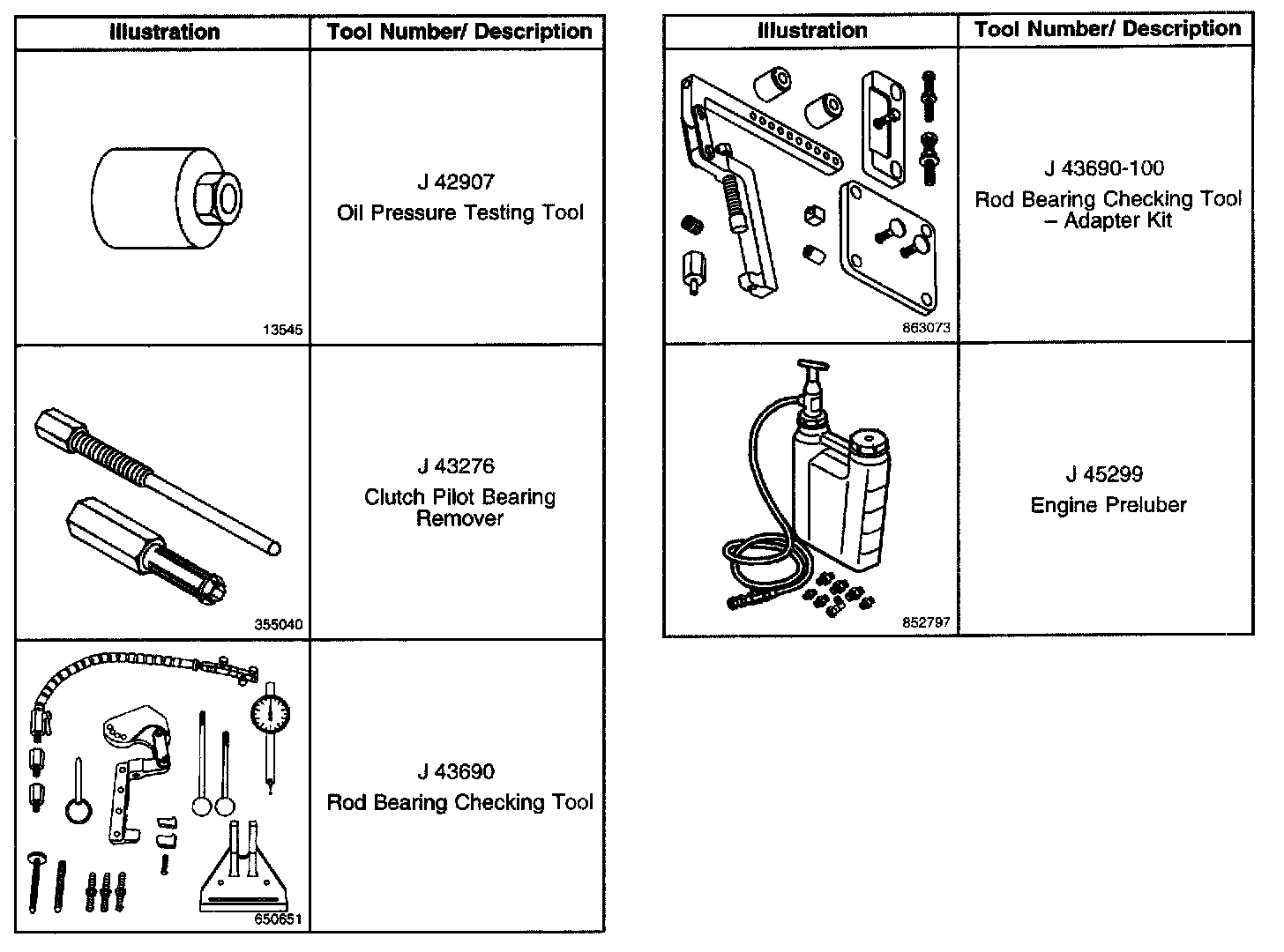

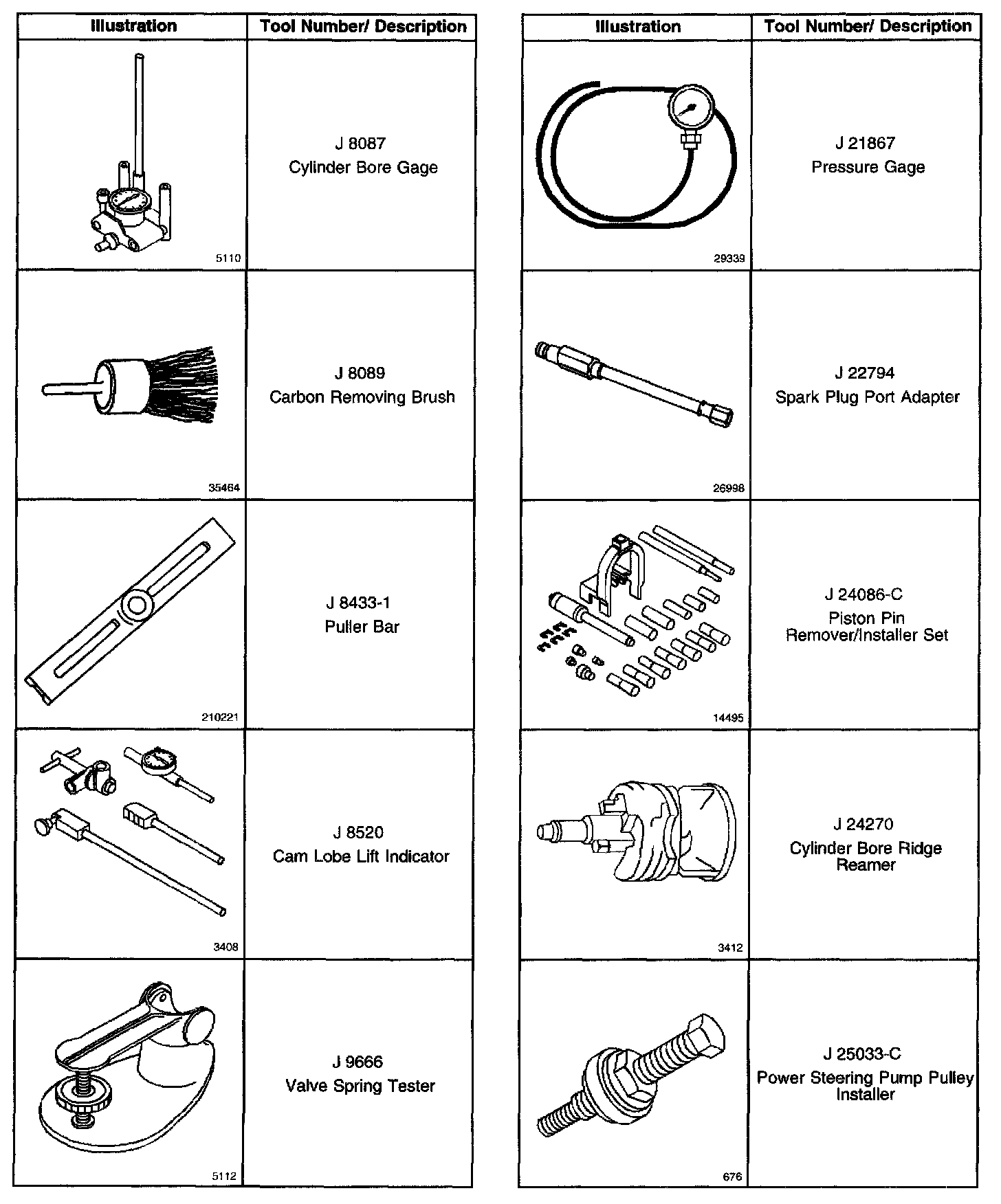

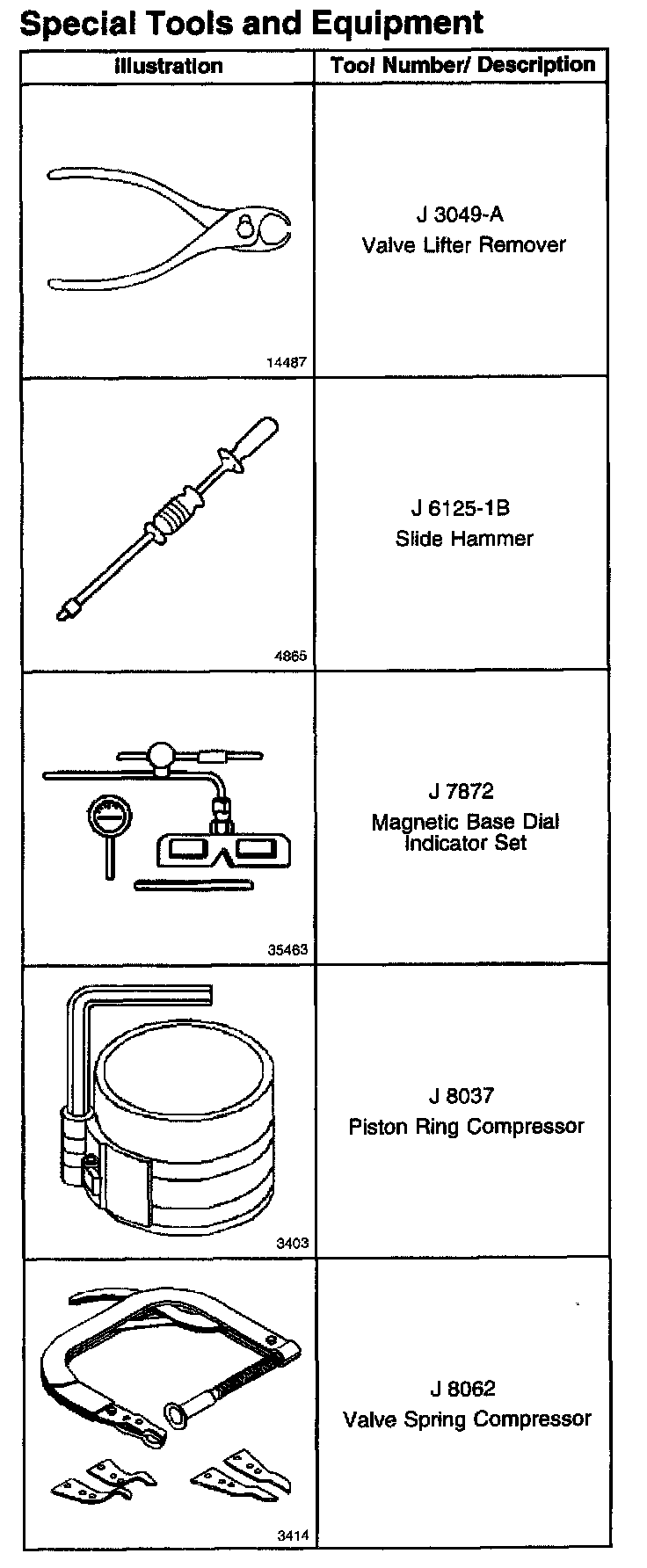

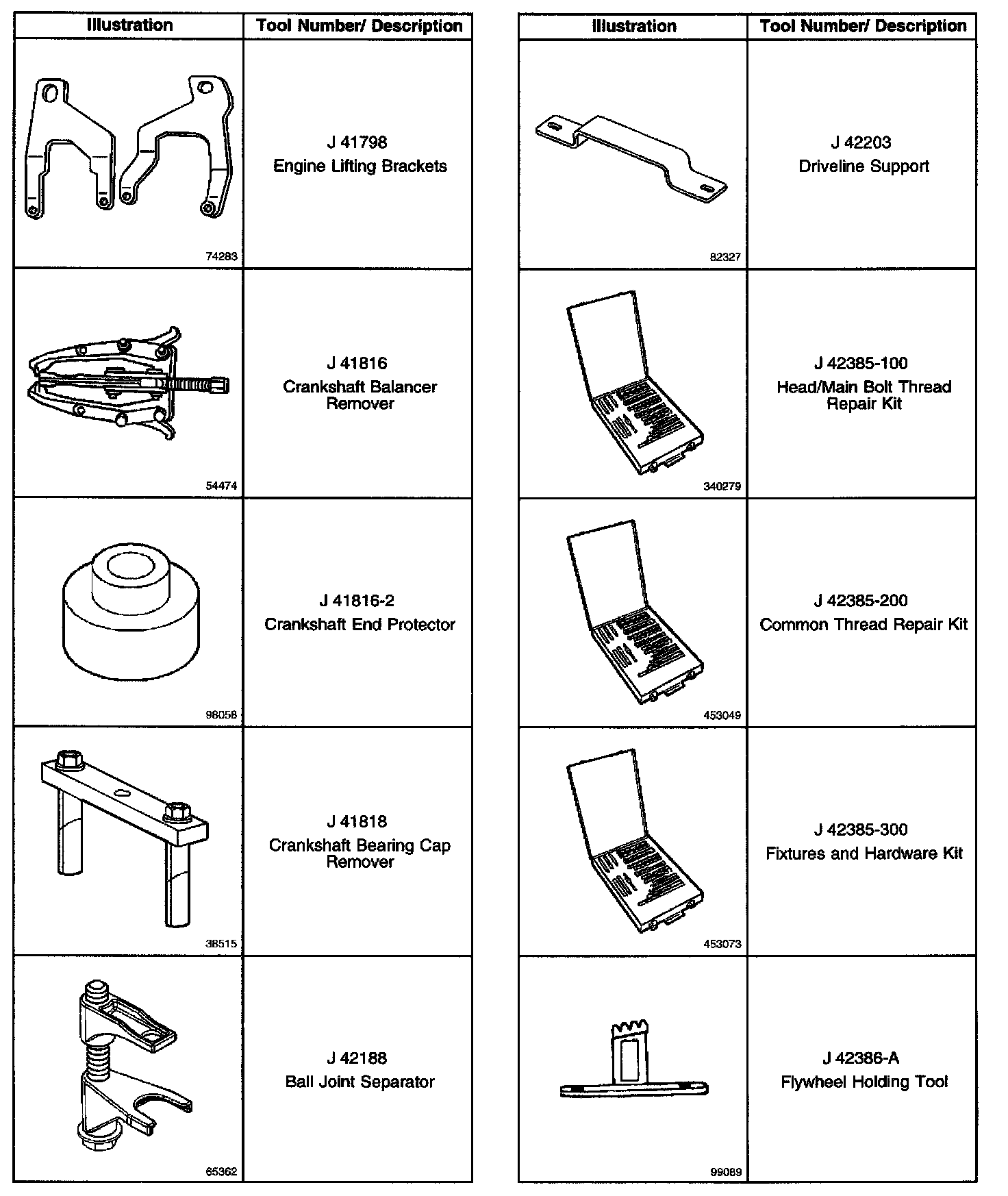

Special Tools and Equipment




Part 1 of 6




Part 2 of 6





Part 3 of 6





Part 4 of 6




Part 5 of 6




Part 6 of 6
