Ambient Temperature Sensor / Switch HVAC: Service and Repair

AMBIENT AIR TEMPERATURE SENSOR REPLACEMENT







REMOVAL PROCEDURE

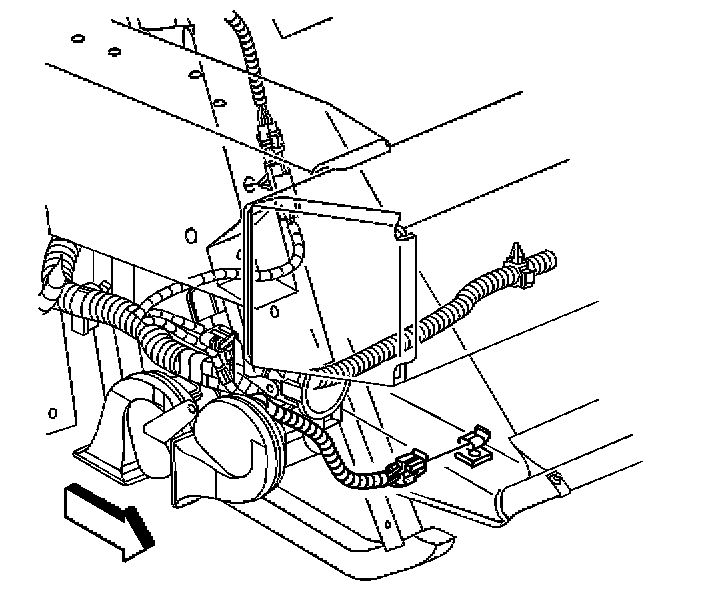

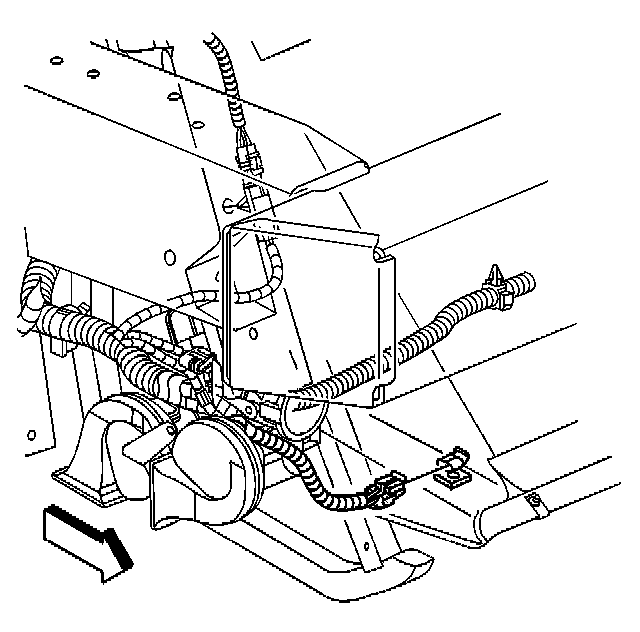

1. Disconnect the ambient air temperature sensor electrical connector.







2. Remove the push-in retainer securing the ambient air temperature sensor to the lower RH side of the radiator support.
3. Remove the ambient air temperature sensor from the radiator support.








INSTALLATION PROCEDURE

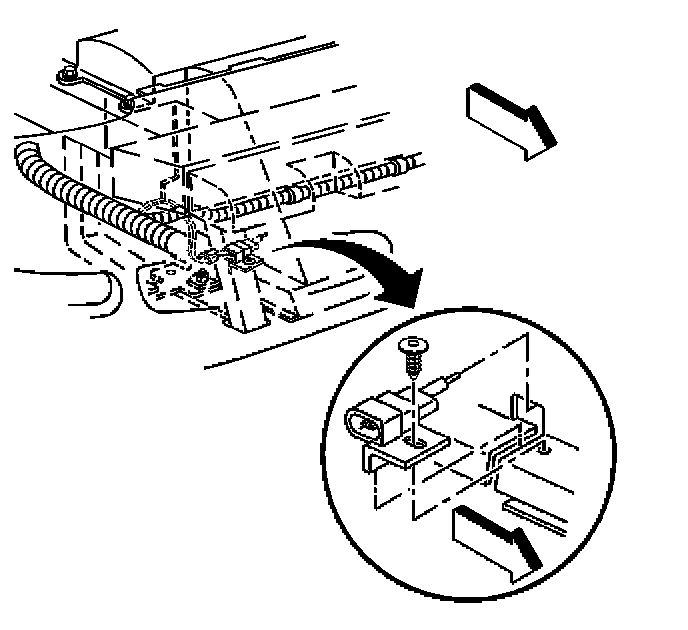

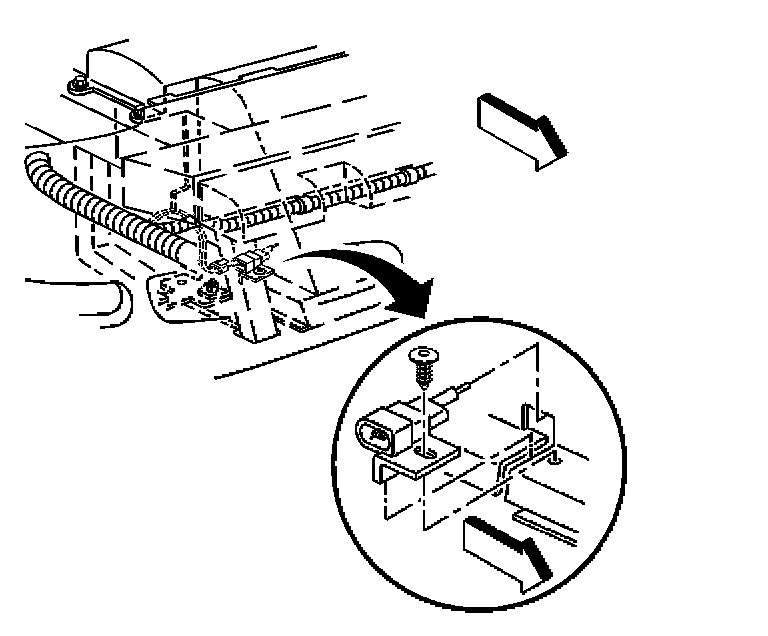

1. Install the ambient air temperature sensor to the lower radiator support.

IMPORTANT: The ambient air temperature sensor must be orientated so that the sensor probe end is inboard and the electrical connector is outboard.

2. Install the push-in retainer to secure the ambient air temperature sensor to the radiator support.







3. Connect the ambient air temperature sensor electrical connector.
