Blower Motor: Service and Repair

BLOWER MOTOR REPLACEMENT







REMOVAL PROCEDURE
1. Remove the I/P lower insulator panel - RH.

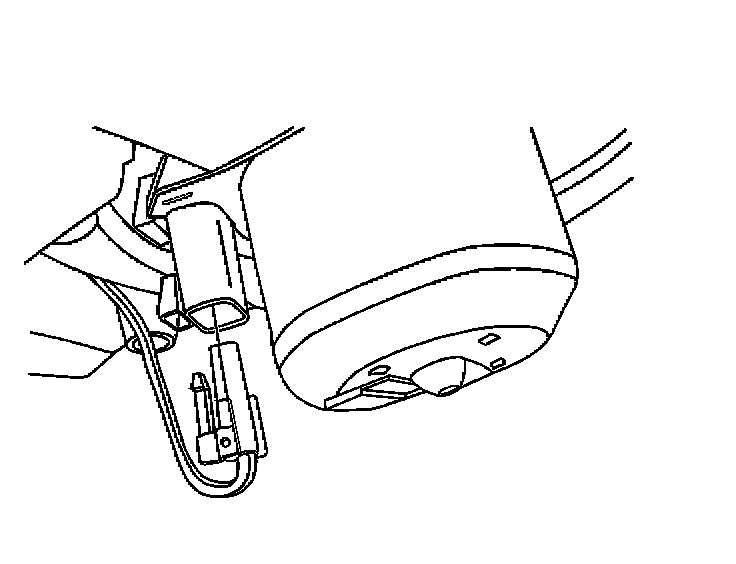

2. Disconnect the blower motor electrical connector.

CAUTION: Unplug the blower motor before removal. Blower motor case contact with any ground may start the fan and cause personal injury.







3. Disconnect the blower motor cooling tube from the HVAC module.
4. Remove the blower motor retaining screws.
5. Remove the blower motor from the HVAC module.








INSTALLATION PROCEDURE
1. Install the blower motor to the HVAC module.
2. Install the blower motor retaining screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screws to............1.7 N.m (15 lb in).

3. Connect the blower motor cooling tube to the HVAC module.

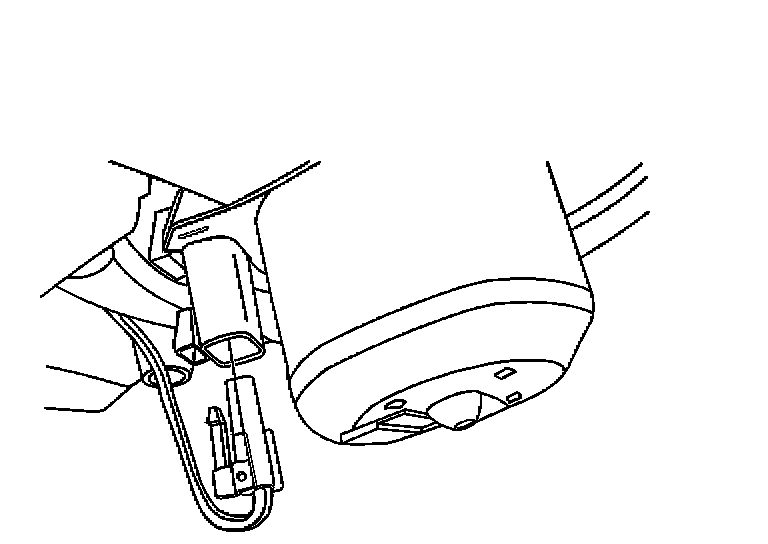

4. Connect the blower motor electrical connector.
5. Install the I/P lower insulator panel - RH.
