Cigar Lighter Housing Replacement

CIGAR LIGHTER HOUSING REPLACEMENT

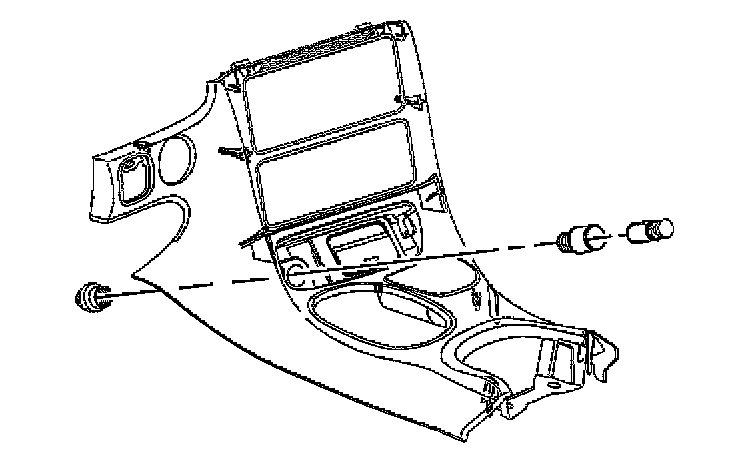

REMOVAL PROCEDURE




1. Remove the console.
2. Remove the I/P accessory trim plate.
3. Remove the cigar lighter from the cigar lighter housing.
4. Unscrew to remove the cigar lighter retainer from the cigar lighter housing.
5. Remove the cigar lighter housing from the I/P accessory trim plate.

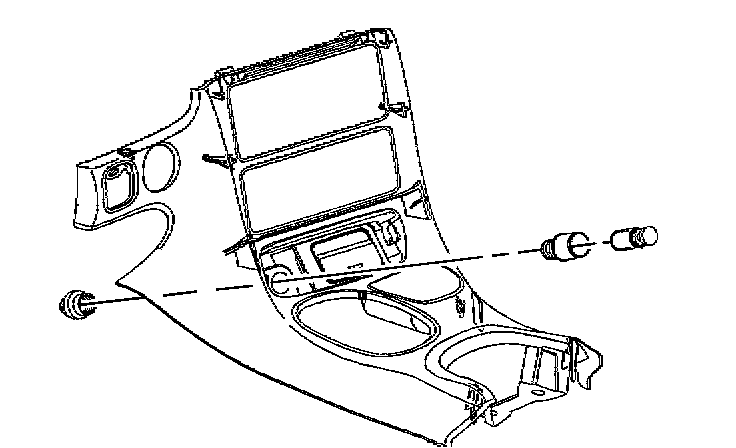

INSTALLATION PROCEDURE




1. Install the cigar lighter housing to the I/P accessory trim plate.
2. Install the cigar lighter retainer onto the cigar lighter housing.

NOTE: Refer to Fastener Notice in Service Precautions.


Tighten
Tighten the cigar lighter retainer to 2.8 N.m (25 lb in).

3. Install the cigar lighter to the cigar lighter housing.
4. Install the I/P accessory trim plate.
5. Install the console.
