Instrument Panel Cluster (IPC) - Bezel Replacement

Bezel Replacement - Instrument Panel (I/P) Cluster

Removal Procedure

Notice: Refer to IPC Servicing Notice in Service Precautions.




1. Remove the instrument panel cluster (IPC) from the vehicle.

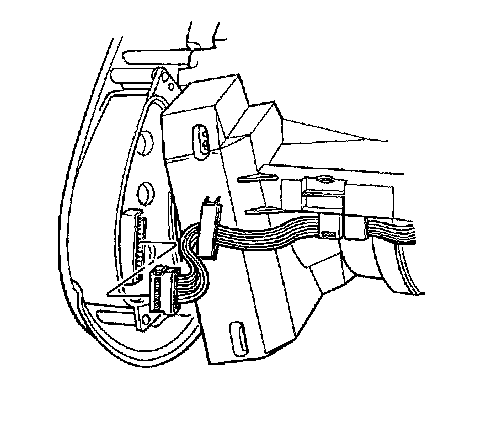

2. Disconnect the instrument panel (I/P) dimmer switch or I/P dimmer/head-up display (HUD) switch electrical connector.




3. Disconnect the driver information center (DIC) switch electrical connector.

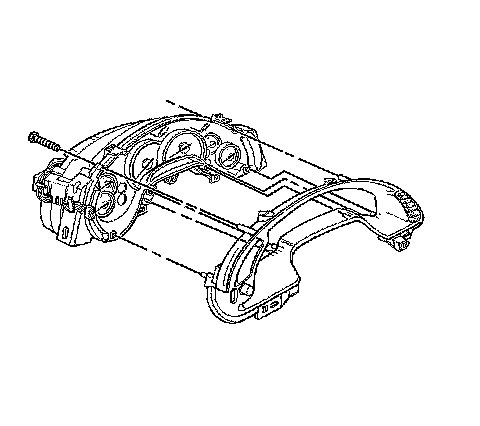

4. Remove the I/P cluster bezel retaining screws.
5. Remove the cluster bezel from the IPC.

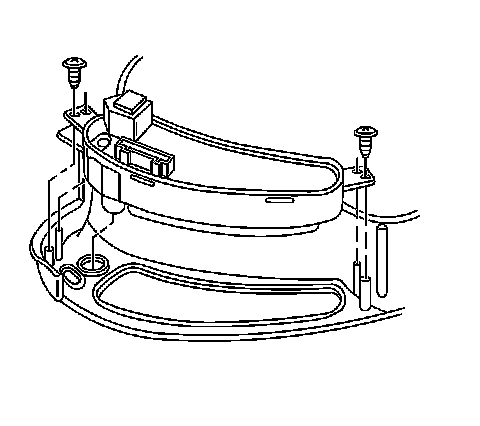

6. Remove the I/P dimmer switch or I/P dimmer/HUD switch retaining screws.
7. Remove the I/P dimmer switch or I/P dimmer/HUD switch.

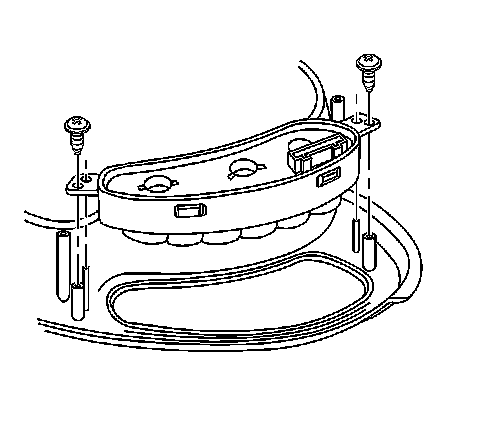

8. Remove the DIC switch retaining screws.
9. Remove the DIC switch.

Installation Procedure




1. Install the DIC switch to the I/P cluster bezel.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the DIC switch retaining screws.

Tighten the DIC switch retaining screws to 1.5 N.m (13 lb in).




3. Install the I/P dimmer switch or I/P dimmer/HUD switch to the bezel.
4. Install the I/P dimmer switch or I/P dimmer/HUD switch retaining screws.

Tighten the I/P dimmer switch or I/P dimmer/HUD switch retaining screws to 1.5 N.m (13 lb in).




5. Install the bezel to the IPC.
Align the bezel onto the guide pins.
6. Install the I/P cluster bezel retaining screws.

Tighten the I/P cluster bezel retaining screws to 1.5 N.m (13 lb in).




7. Connect the I/P dimmer switch or I/P dimmer/HUD switch electrical connector.




8. Connect the DIC switch electrical connector.
9. Install the IPC to the vehicle.
