Brake Light Switch: Service and Repair

STOP LAMP SWITCH REPLACEMENT

REMOVAL PROCEDURE




1. Remove the instrument panel (IP) lower trim panel.

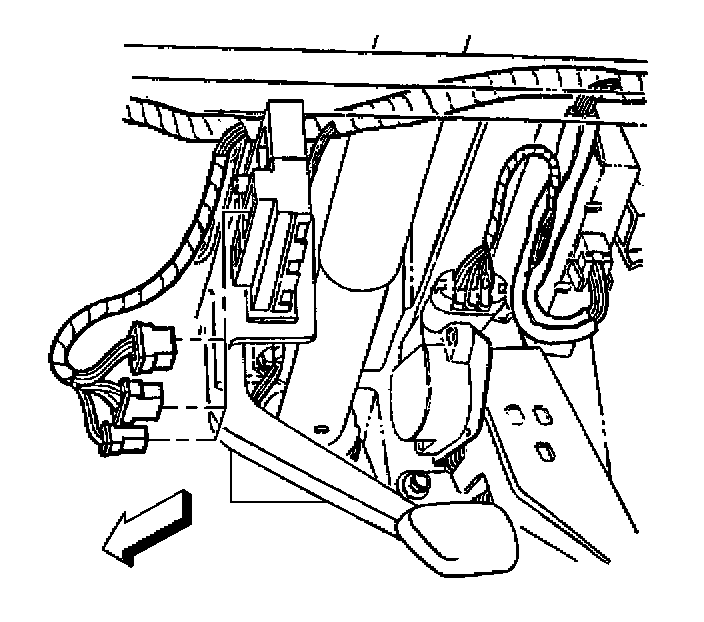

2. Disconnect the stop lamp switch connectors.

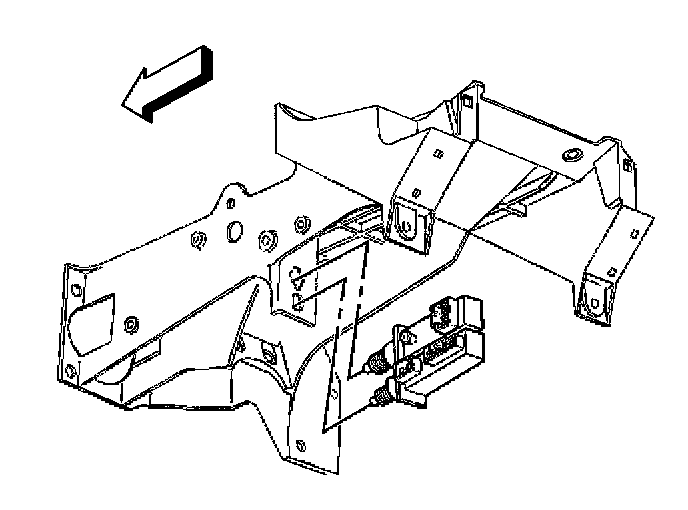

3. Remove the stop lamp switch.

INSTALLATION PROCEDURE




1. Install the stop lamp switch.
2. Adjust the stop lamp switch.

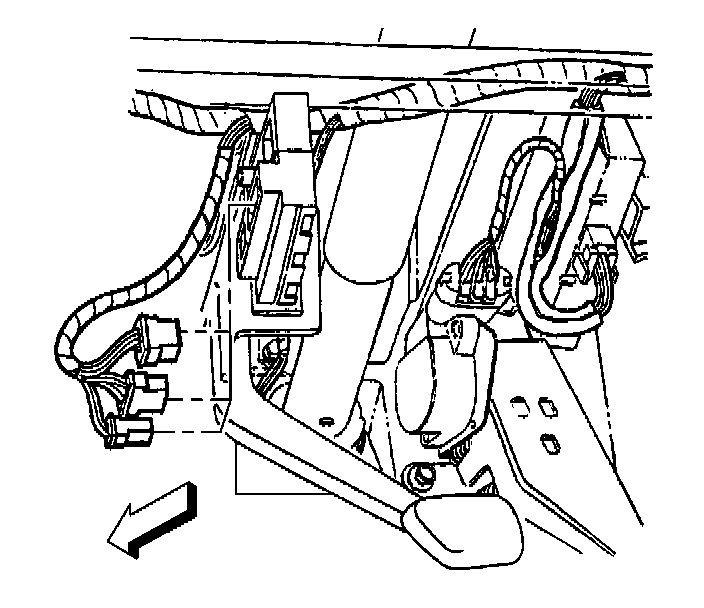

3. Connect the stop lamp switch connectors.
4. Install the I/P lower trim panel.
