Fog Lamp Replacement - Front

FOG LAMP REPLACEMENT - FRONT

REMOVAL PROCEDURE




1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the front fascia lower close out panel.

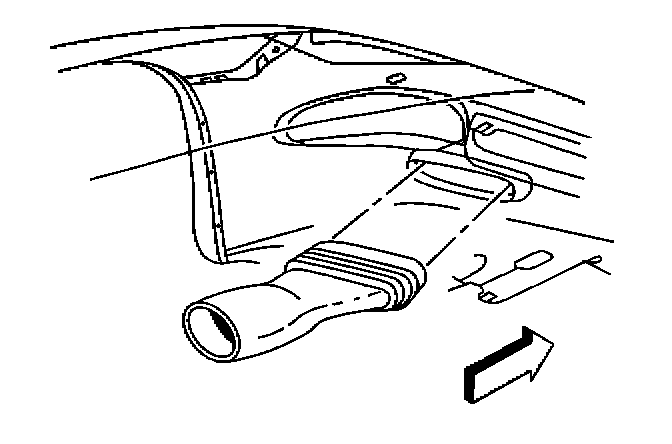

3. Release the brake caliper cooling duct from the front fascia and position the duct aside.

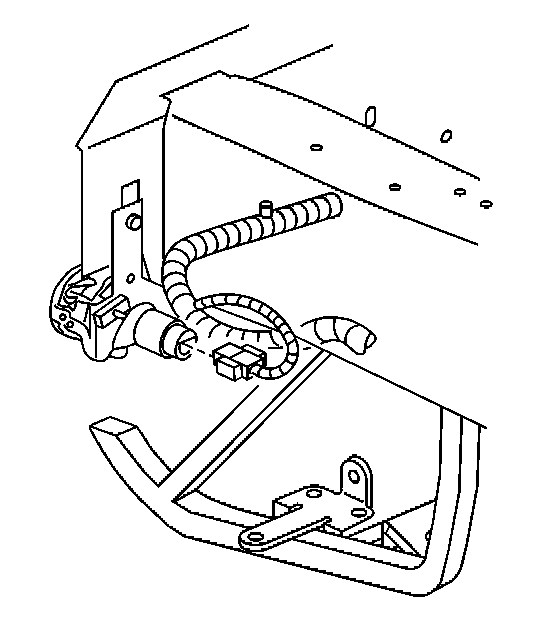

4. Disconnect the front fog lamp electrical connector from the fog lamp bulb/socket.




5. Remove the front fog lamp mounting bolt from the front bumper impact bar.
6. Remove the fog lamp from the vehicle.

INSTALLATION PROCEDURE




1. Position the front fog lamp to the front bumper impact bar. Insert the fog lamp bracket alignment tab into the hole on the front bumper impact bar.
2. Install the front fog lamp mounting bolt to the front bumper impact bar.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the front fog lamp mounting bolt to 2 N.m (18 lb in).

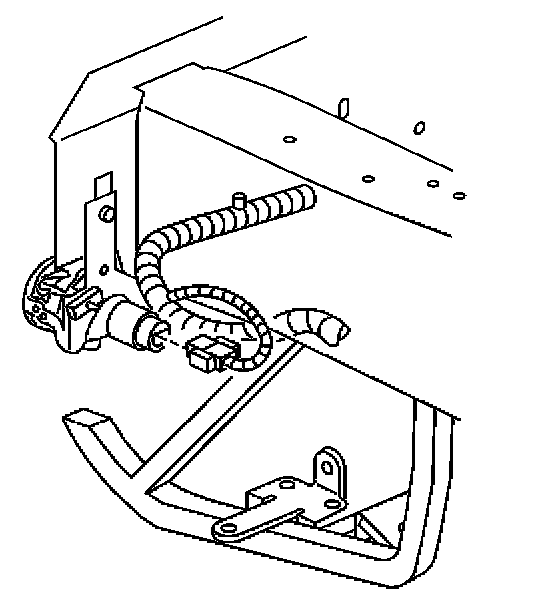

3. Connect the front fog lamp electrical connector to the fog lamp bulb/socket.




4. Position the brake caliper cooling duct to the front fascia, and press to secure.
5. Install the front fascia lower close out panel.
6. Lower the vehicle.
7. Check and adjust fog lamp aim as necessary.
