FOG LAMP REPLACEMENT - REARREMOVAL PROCEDURE
1. Remove the tail/turn signal lamp.

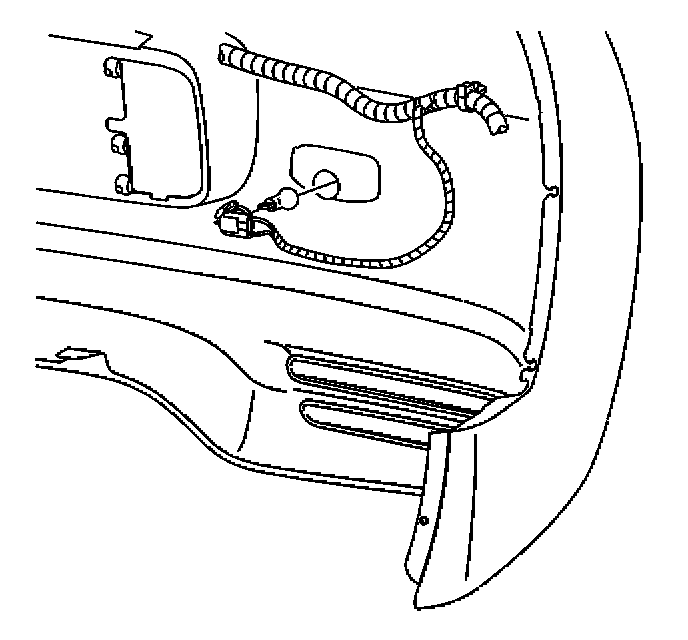

2. Remove the rear fog lamp socket from the rear fog lamp assembly. Access the rear fog lamp through the tail lamp opening.
3. Remove the rear fog lamp bezel retaining nut and support the lamp assembly.

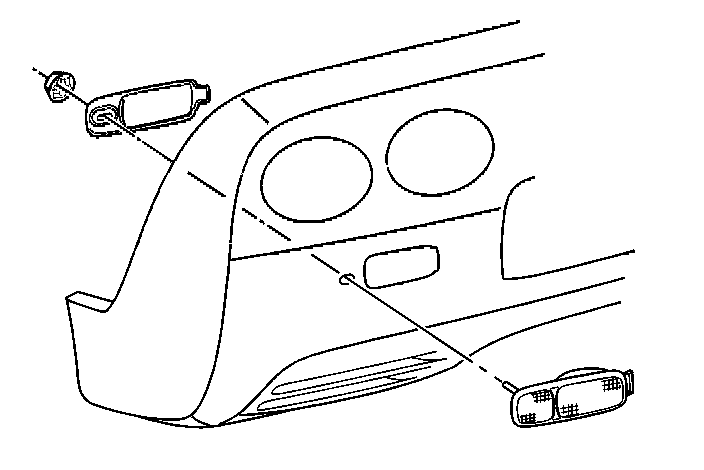

4. Remove the bezel from the lamp. Lift the bezel off of the stud and pivot it out of the slot on the lamp.
5. Remove the rear fog lamp assembly.
INSTALLATION PROCEDURE
1. Position the rear fog lamp assembly to the rear fascia.
2. Install the bezel to the lamp.Insert the bezel into the slot on the lamp, then pivot the bezel onto the stud.
3. Install the rear fog lamp bezel retaining nut.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the rear fog lamp bezel retaining nut to 2 N.m (18 lb in).
4. Install the socket to the lamp.
5. Install the tail/turn signal lamp.
