Headlamp Opening Door Adjustment

HEADLAMP OPENING DOOR ADJUSTMENT




1. Remove the headlamp opening door.
2. For horizontal adjustment:

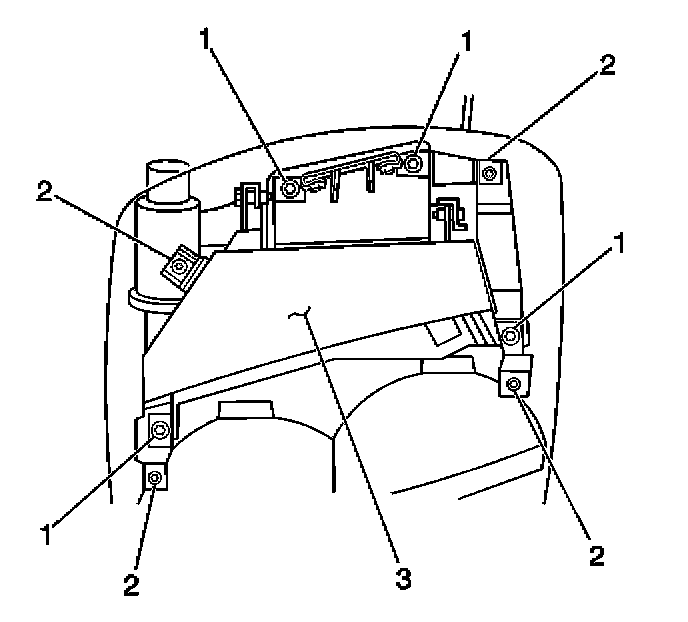

2.1. Loosen the headlamp intermediate bracket to headlamp assembly screws (1).
2.2. Adjust the position of the headlamp intermediate bracket (3) as required and retighten the retaining screws (1).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the headlamp intermediate bracket screws to 2 N.m (18 lb in).

3. For vertical adjustment:
Tighten (to lower) or loosen (to raise) the vertical adjusting screws (2) as needed.
4. For headlamp opening door stop position adjustment, if necessary:
Tighten or loosen the door stop adjustment screw as needed.
5. Install the headlamp opening door.
6. Inspect the fit of the headlamp opening door to the hood, the fender and the front fascia.
7. If the fit of the headlamp opening door is unsatisfactory, repeat steps 2 through 7.
