Park/Turn Signal/Side Marker Lamp Replacement
PARK/TURN SIGNAL/SIDE MARKER LAMP REPLACEMENTREMOVAL PROCEDURE
1. Raise and support the vehicle.

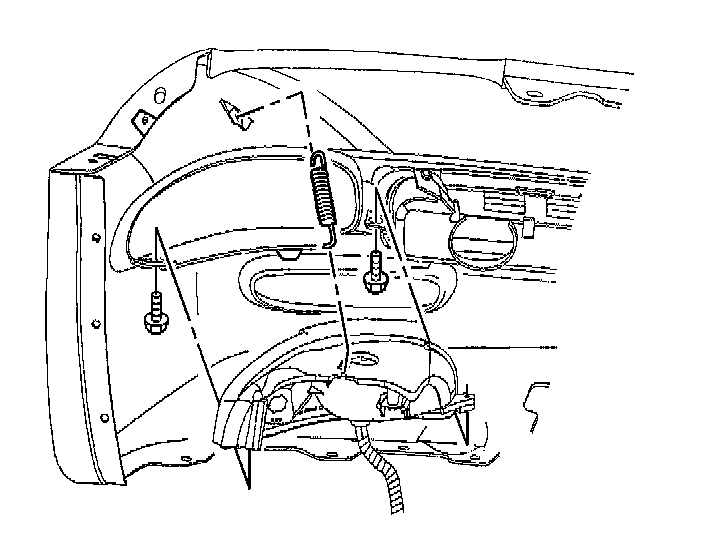

2. Remove the front fascia lower closeout panel.
3. Release the brake caliper cooling duct from the front fascia, and position the duct aside.
4. Remove the front turn signal lamp bracket retaining spring from the lamp bracket.
5. Remove the lamp bracket retaining spring from the front fascia.
6. Remove the front turn signal lamp bracket retaining screws.

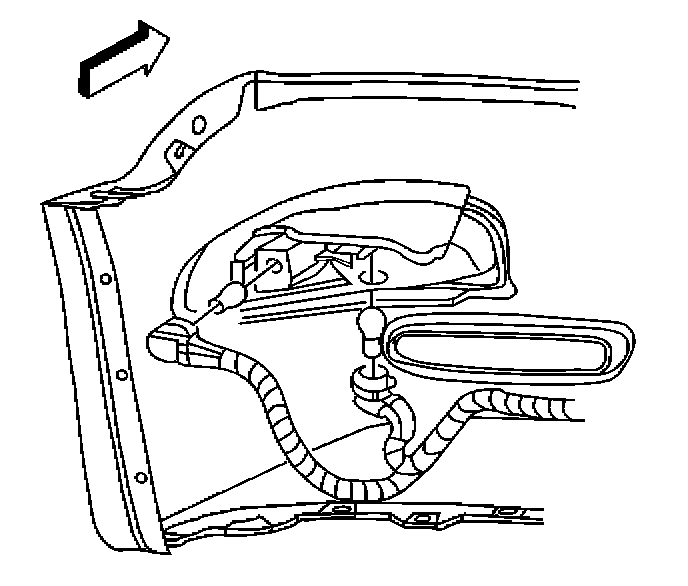

7. Disconnect the sockets from the lamp.
8. Remove the lamp, with the bracket, from the vehicle.

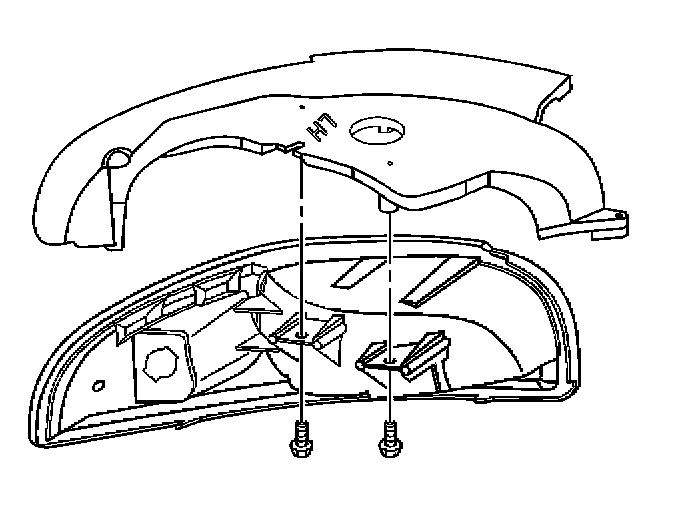

9. Remove the lamp to bracket retaining screws.
10. Remove the lamp from the bracket.
INSTALLATION PROCEDURE

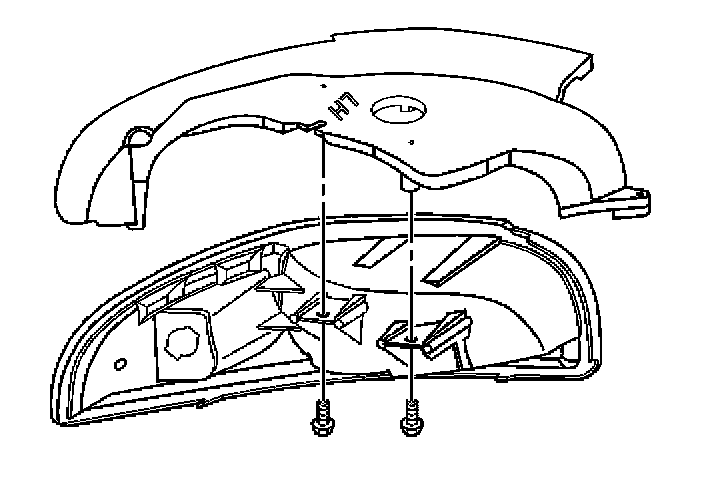

1. Install the front park/turn signal and sidemarker lamp into position on the front turn signal lamp bracket.
2. Install the front park/turn signal and sidemarker lamp to bracket retaining screws.
NOTE: Refer to Fastener Notice in Service Precautions.
Tighten
Tighten the front park/turn signal and sidemarker lamp to bracket retaining screws to 2 N.m (18 lb in).
3. Install the sockets to the lamp.

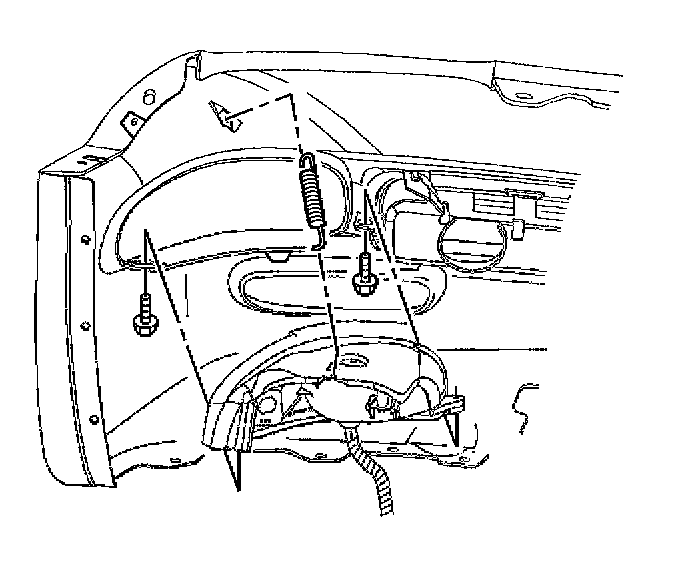

4. Install the lamp, with the bracket, to the front fascia.
5. Align the lamp to the opening in the front fascia and hold the lamp firmly in place against the fascia, while installing the front turn signal lamp bracket retaining screws.
Tighten
Tighten the front turn signal lamp bracket retaining screws to 3 N.m (27 lb in).
6. Install the lamp bracket retaining spring to the front fascia.
7. Install the front turn signal lamp bracket retaining spring to the lamp bracket.
8. Position the brake caliper cooling duct to the front fascia and press the duct toward the fascia to secure.
9. Install the front fascia lower closeout panel.
