Home >> Chevrolet >> 2004 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Rearview Mirror Lamps Inoperative

Rearview Mirror Lamps Inoperative

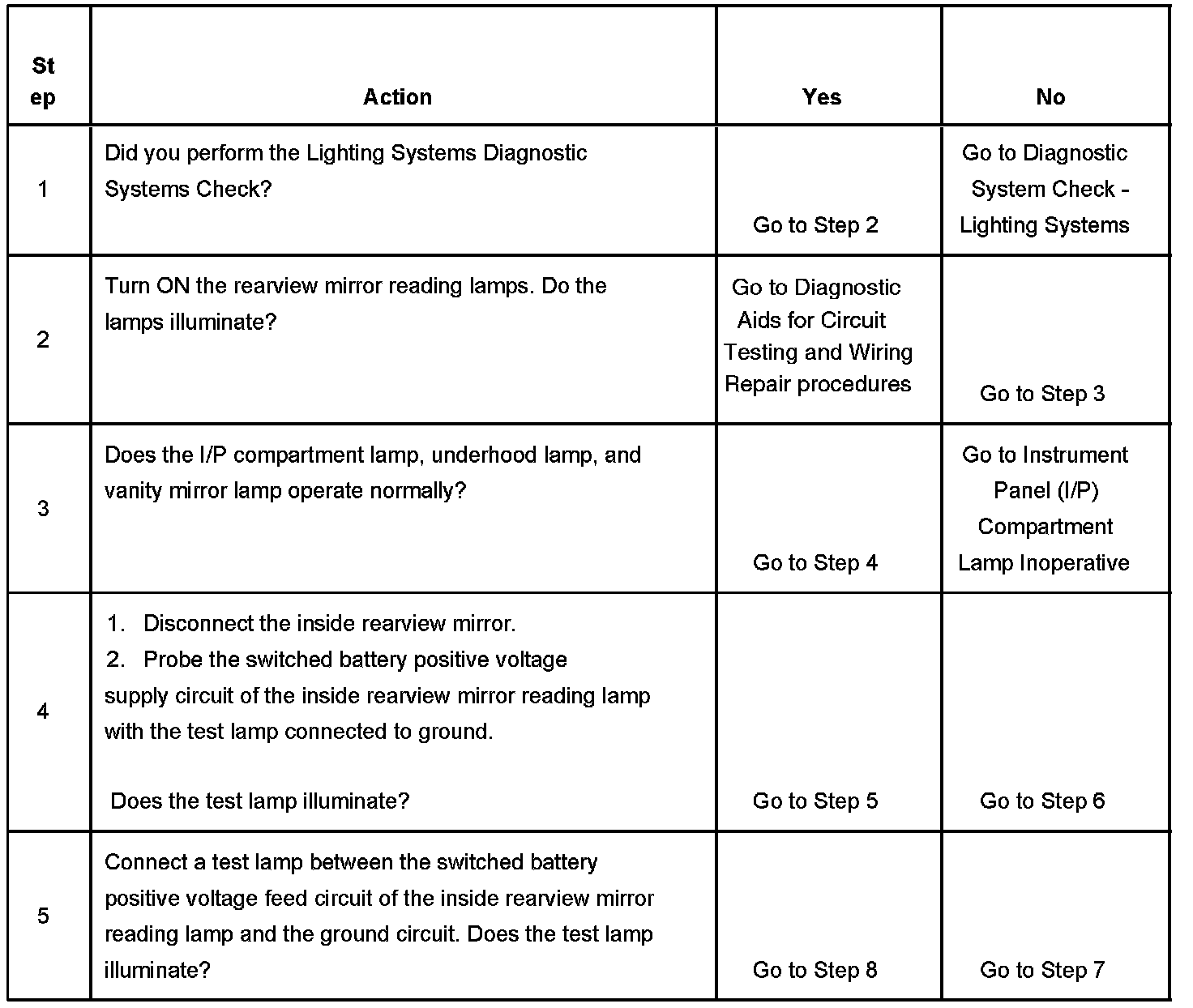

Steps 1-5:

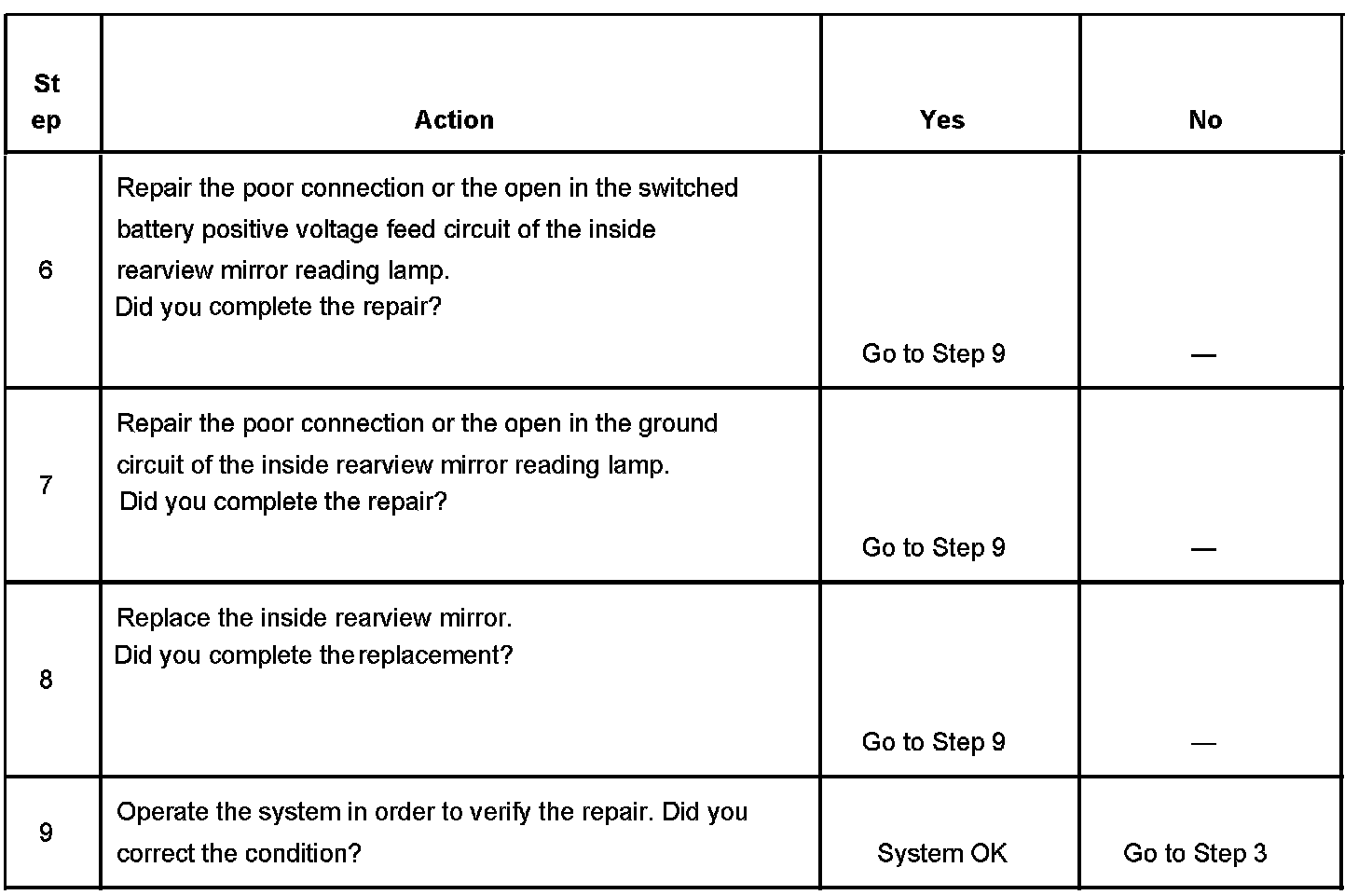

Steps 6-9:
