Trunk Lamp: Diagrams

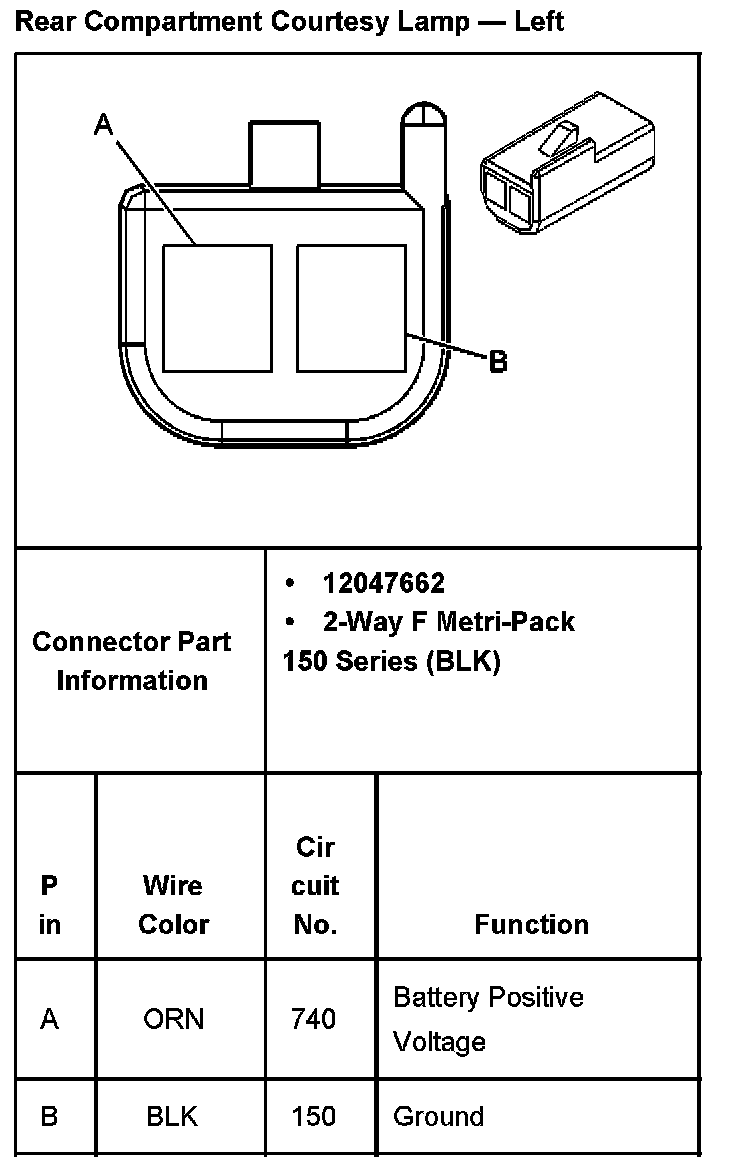

Rear Compartment Courtesy Lamp - Left:



Rear Compartment Courtesy Lamp - Right:
