Home >> Chevrolet >> 2004 >> Corvette V8-5.7L VIN S >> Repair and Diagnosis >> Power and Ground Distribution >> Locations >> A-Pillar Views >> Bottom of the A-Pillar-RF

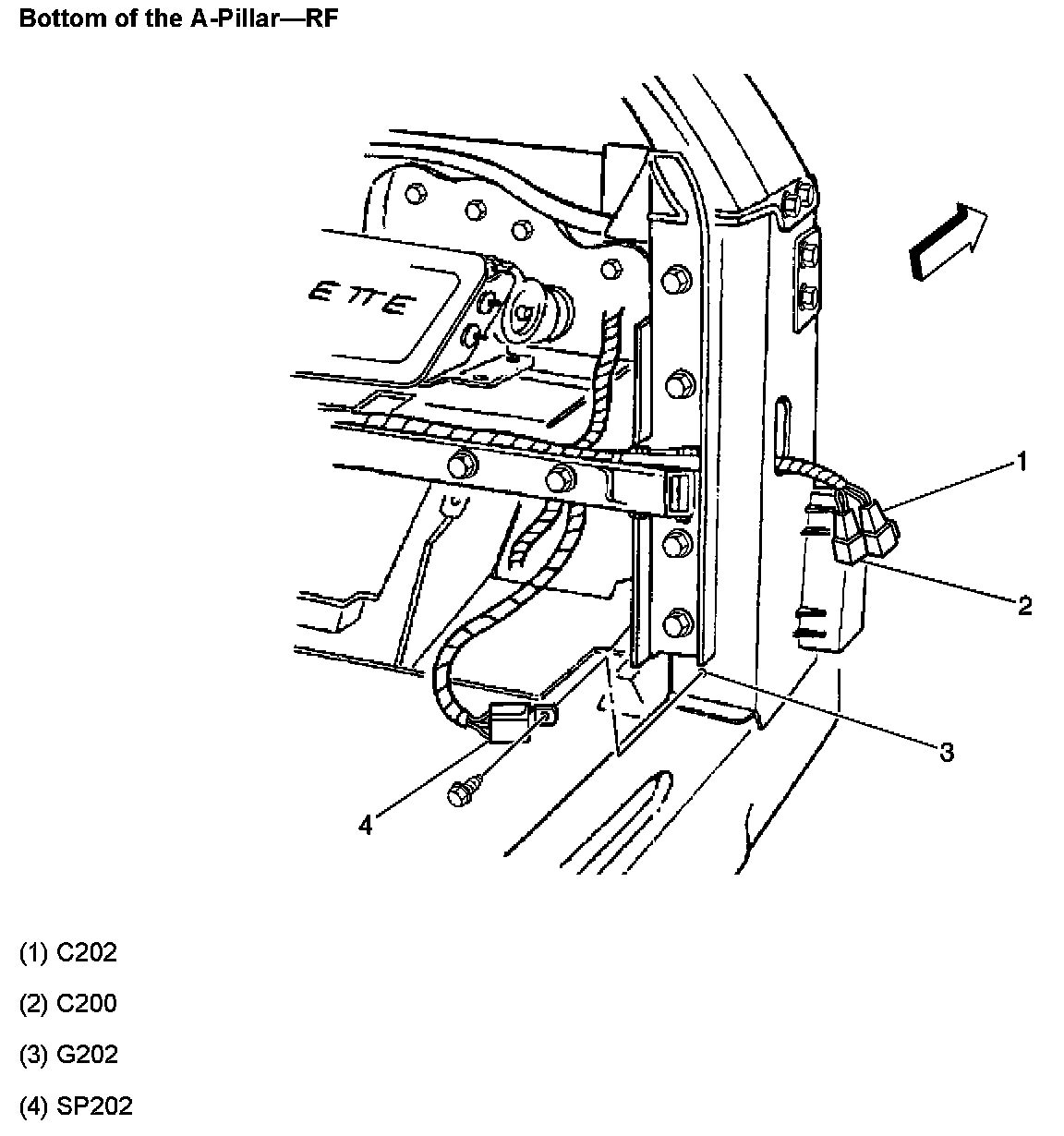

Bottom of the A-Pillar-RF

Bottom Of The A-Pillar-RF:
