System Specifications

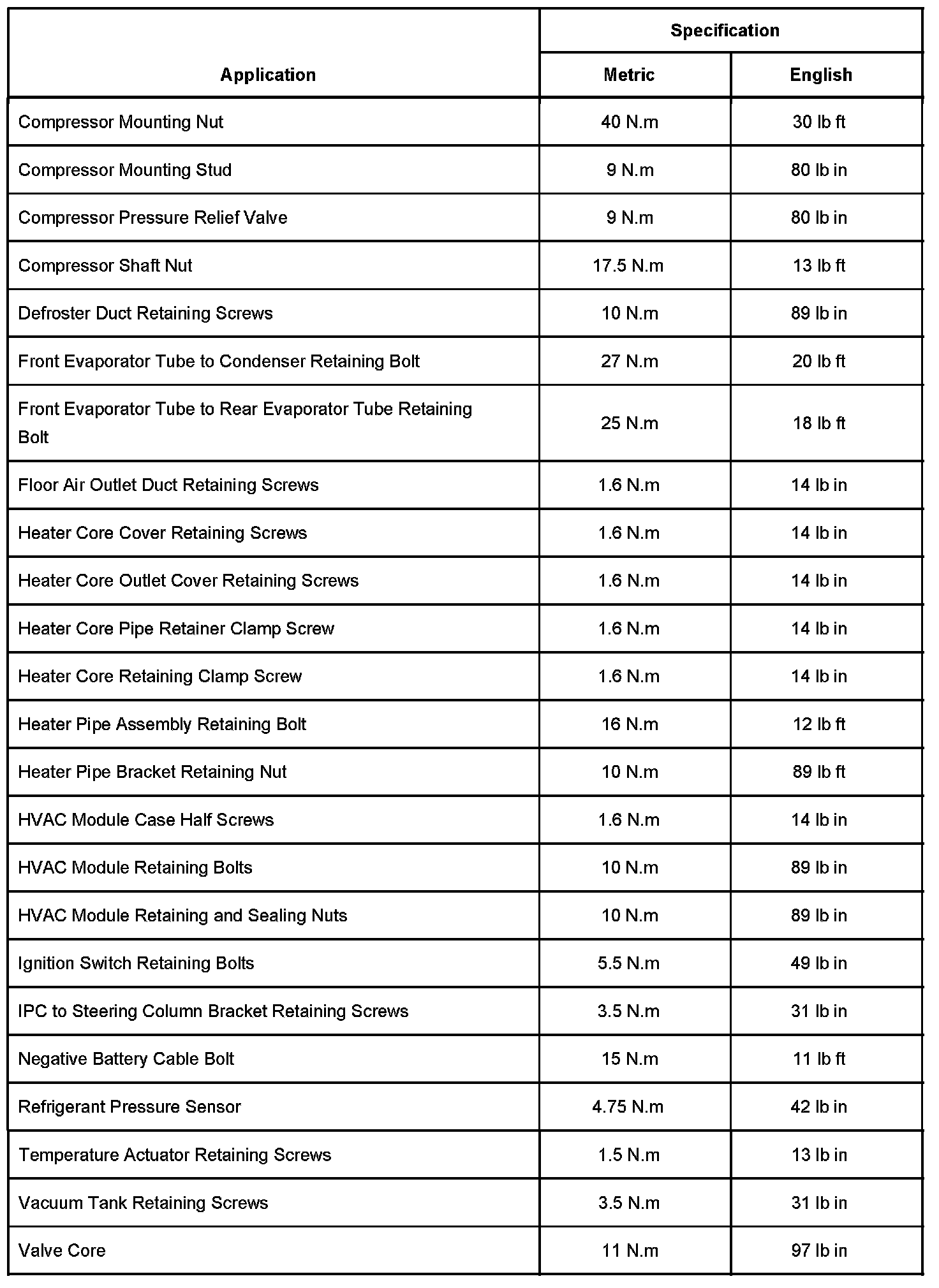

Heating, Ventilation and Air Conditioning 1 Of 2:

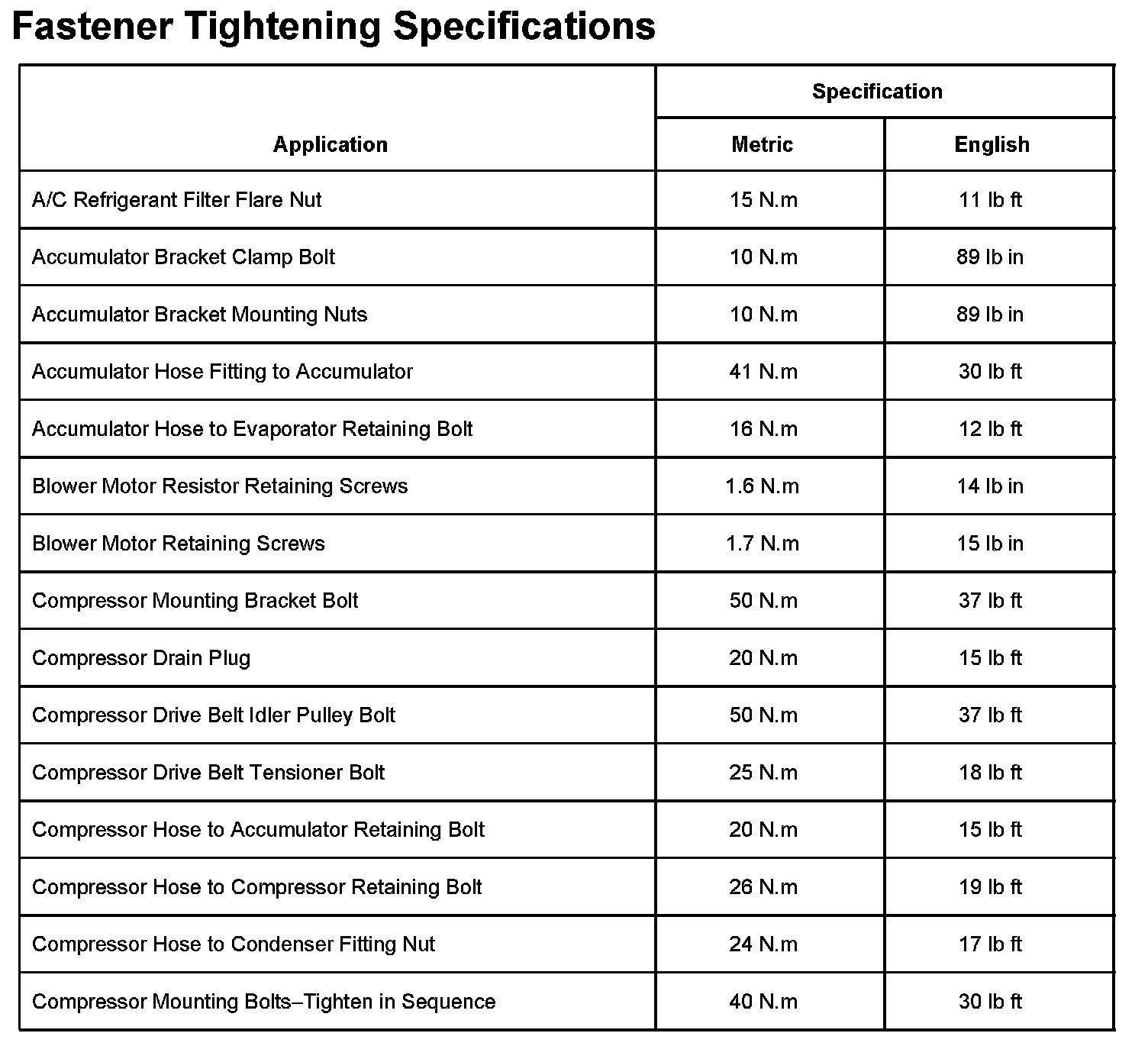

Heating, Ventilation and Air Conditioning 2 Of 2:

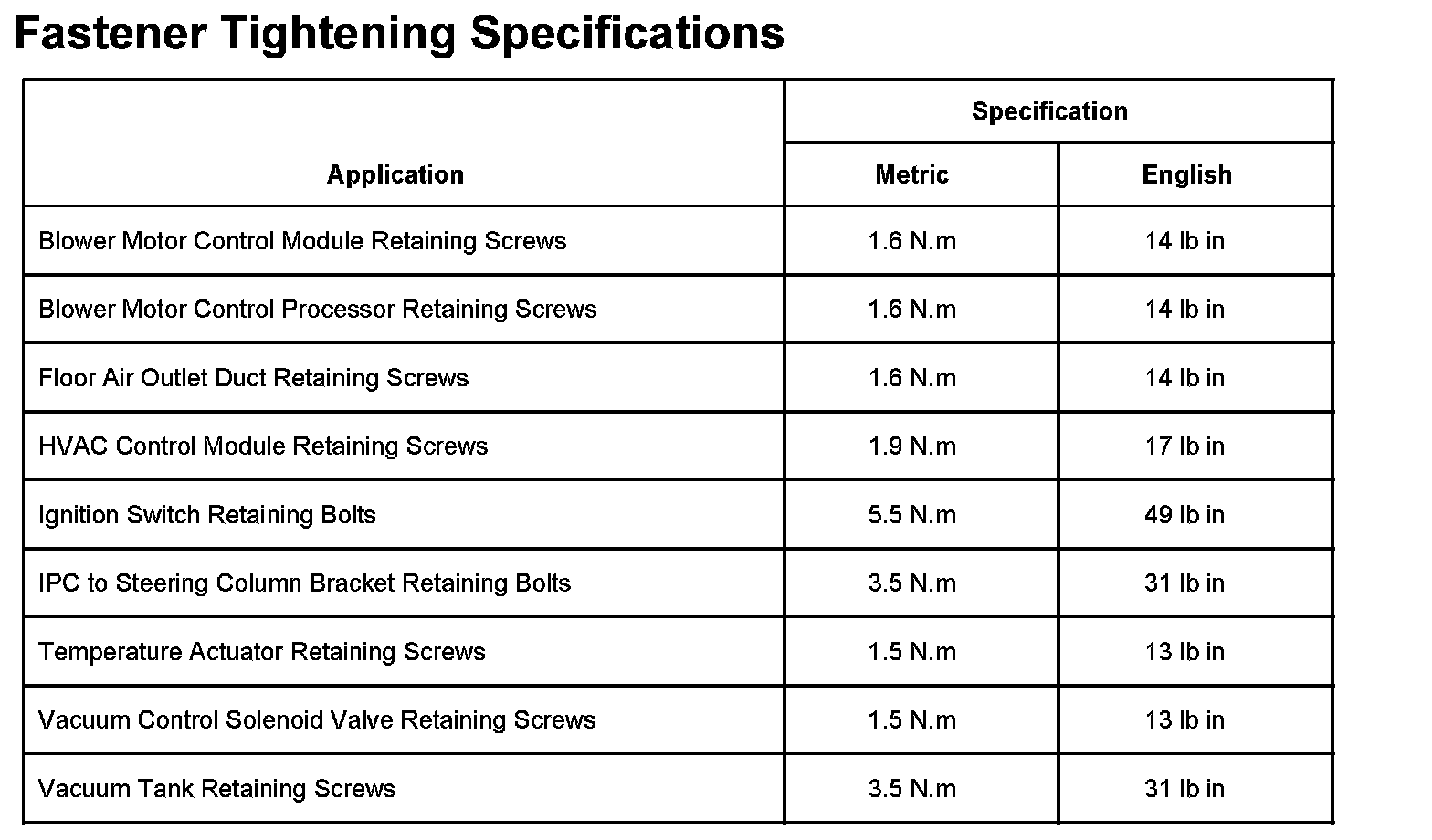

w/Automatic - HVAC System:
