Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic
Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic
Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic

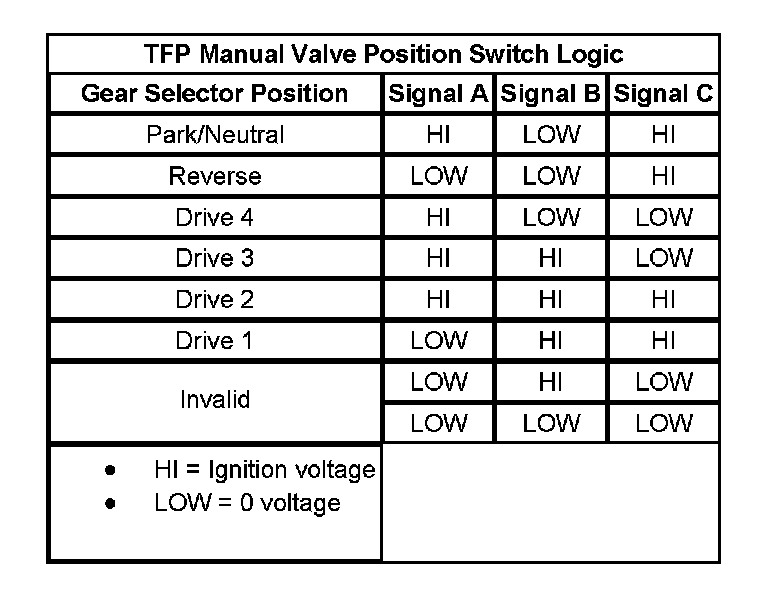

TFP Manual Valve Position Switch Logic
