Manual Transmission Schematics

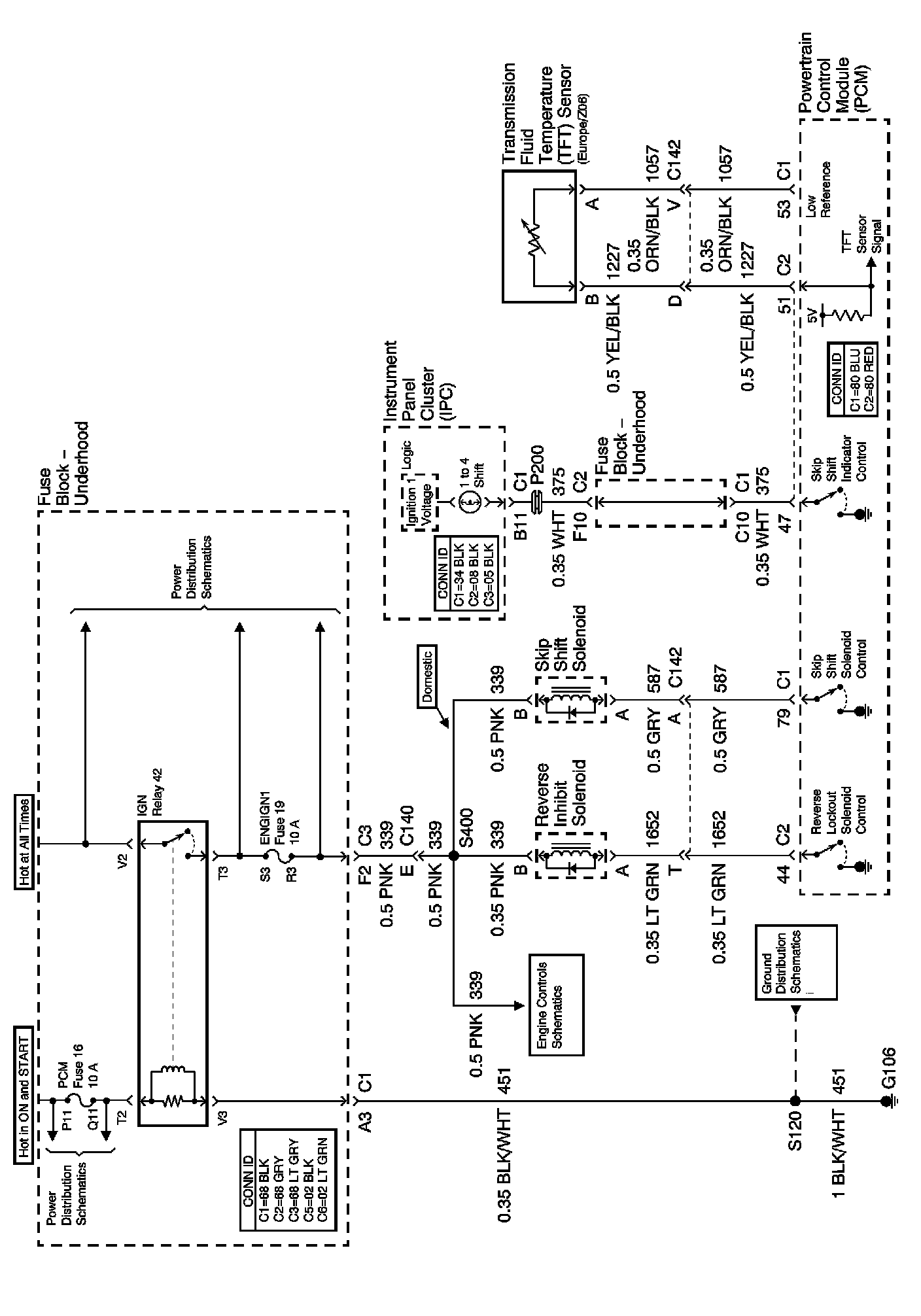

Solenoid Controls and TFT Sensor

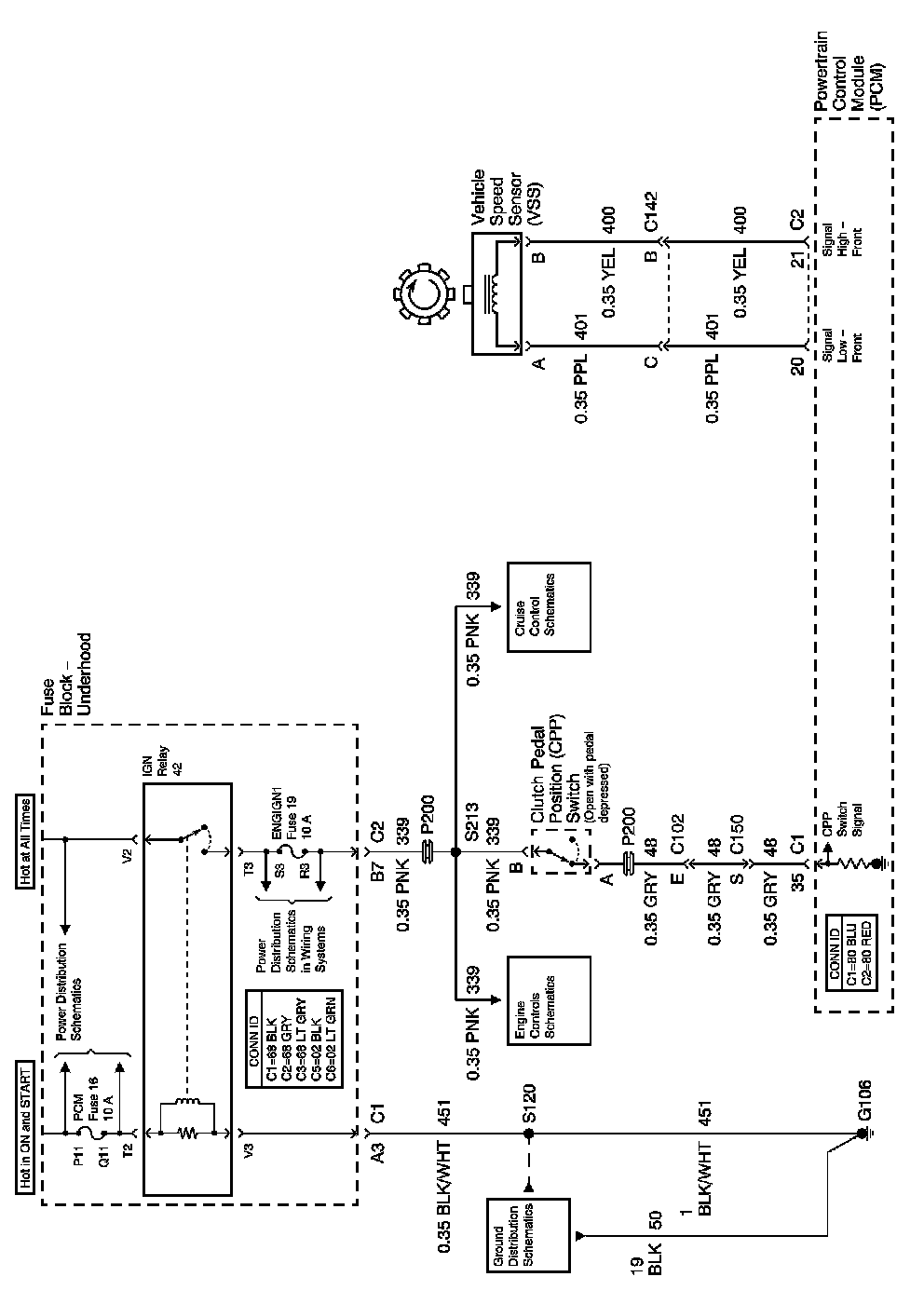

Clutch Pedal Position (CPP) Switch and Vehicle Speed Sensor (VSS)
