Washer Fluid Level Switch: Service and Repair

WASHER SOLVENT CONTAINER LEVEL SENSOR REPLACEMENT

REMOVAL PROCEDURE
1. Open the hood.
2. Drain the washer solvent from the washer solvent container.

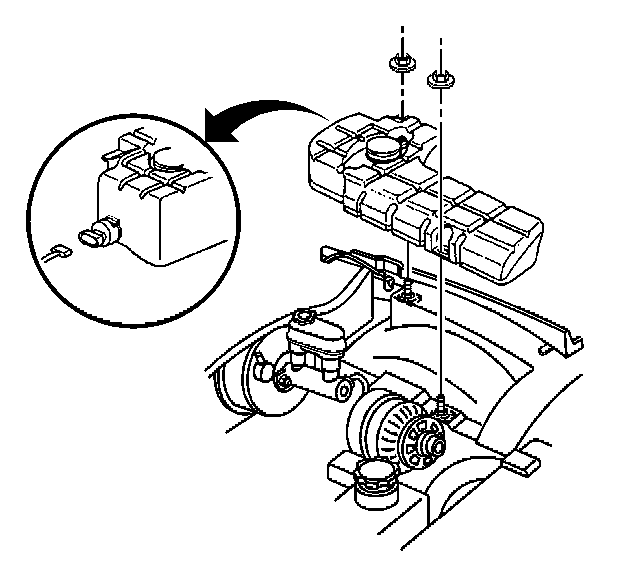

3. Disconnect the washer solvent level sensor electrical connector.

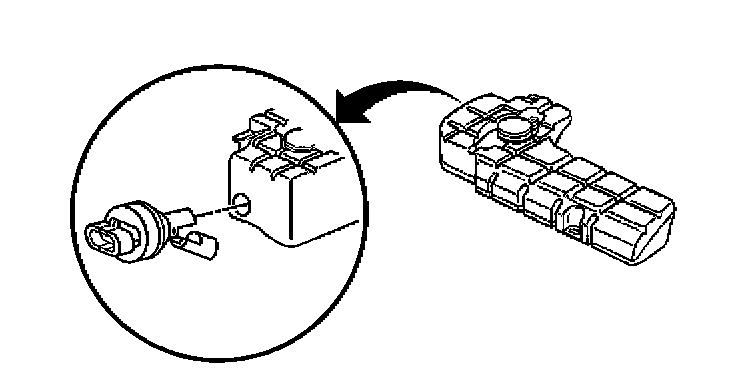

4. Using a small flat-bladed tool, remove the washer solvent level sensor from the washer solvent container.

INSTALLATION PROCEDURE




1. Position the washer solvent level sensor to the washer solvent container, pressing in until fully seated.




2. Connect the washer solvent level sensor electrical connector.
3. Fill the washer solvent container with washer solvent.
4. Close the hood.
