Windshield Washer Pump: Service and Repair

WASHER PUMP REPLACEMENT

REMOVAL PROCEDURE
1. Remove the washer solvent container.

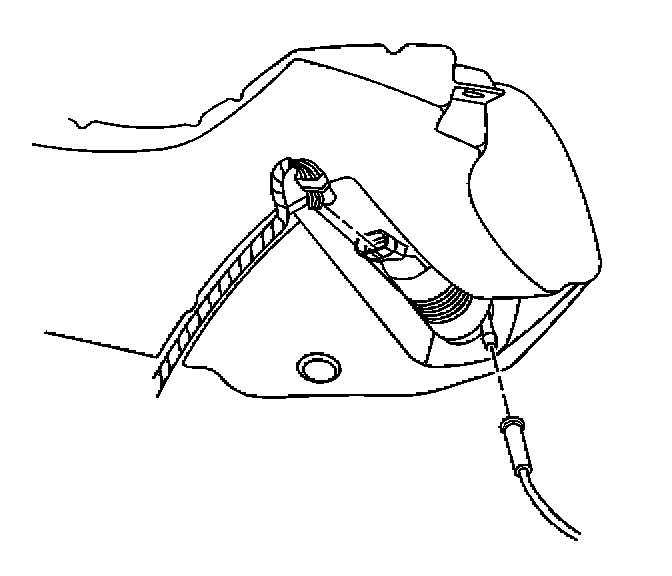

2. Disconnect the washer pump electrical connector.
3. Disconnect the washer pump hose.

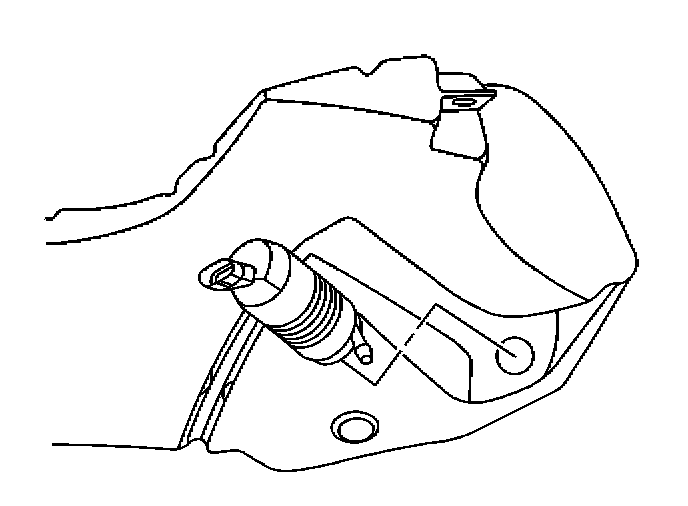

4. Using a small flat-bladed tool, remove the washer pump from the washer solvent container.
5. Using a small flat-bladed tool, remove the washer pump seal from the washer solvent container.

INSTALLATION PROCEDURE




1. Position the washer pump seal to the washer solvent container, pressing in until fully seated.
2. Position the washer pump to the washer solvent container, pressing in until fully seated.




3. Connect the washer pump hose.
4. Connect the washer pump electrical connector.
5. Install the washer solvent container.
