Lighting and Horns: Service and Repair

Parking and Turn Signal Lamp Replacement

Removal Procedure





Caution: Refer to Battery Disconnect Caution Battery Disconnect Caution.

1. Disconnect the negative battery cable.
2. Remove the lamp. Refer to Headlamp Replacement Service and Repair.

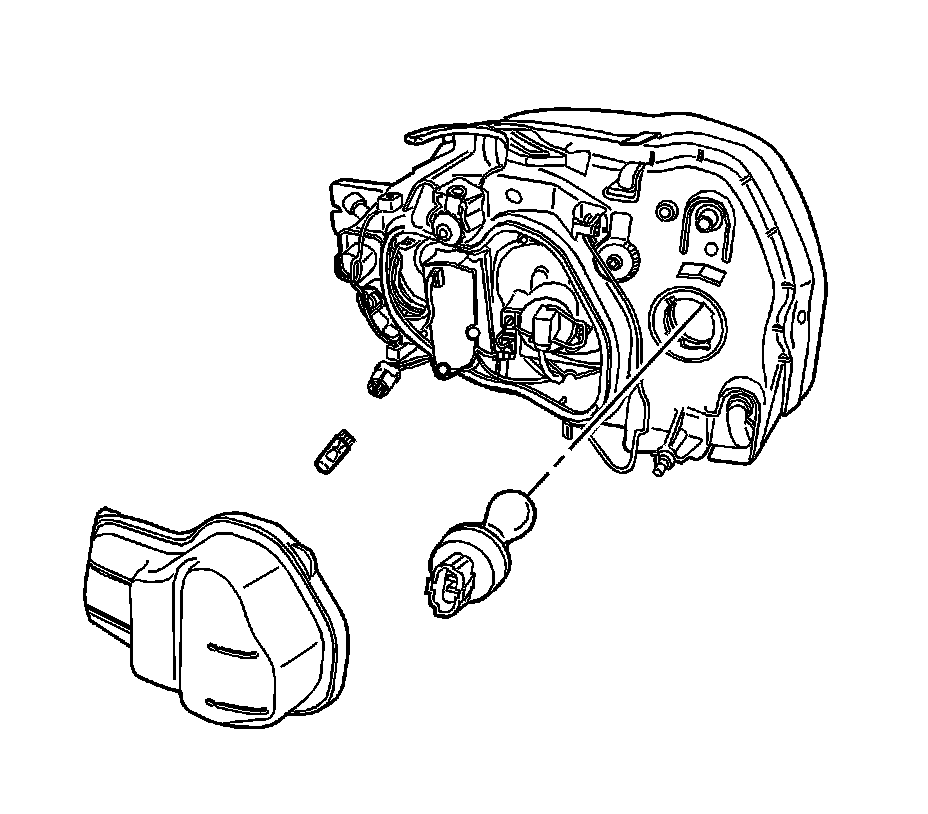

3. Twist and remove the bulbs from the headlamp.

Installation Procedure




1. Insert and twist to install the replacement bulb into the headlamp.
2. Connect the electrical connector.
3. Install the headlamp. Refer to Headlamp Replacement Service and Repair.
4. Connect the negative battery cable.
