Powertrain Management: Locations

Engine Controls Component Views

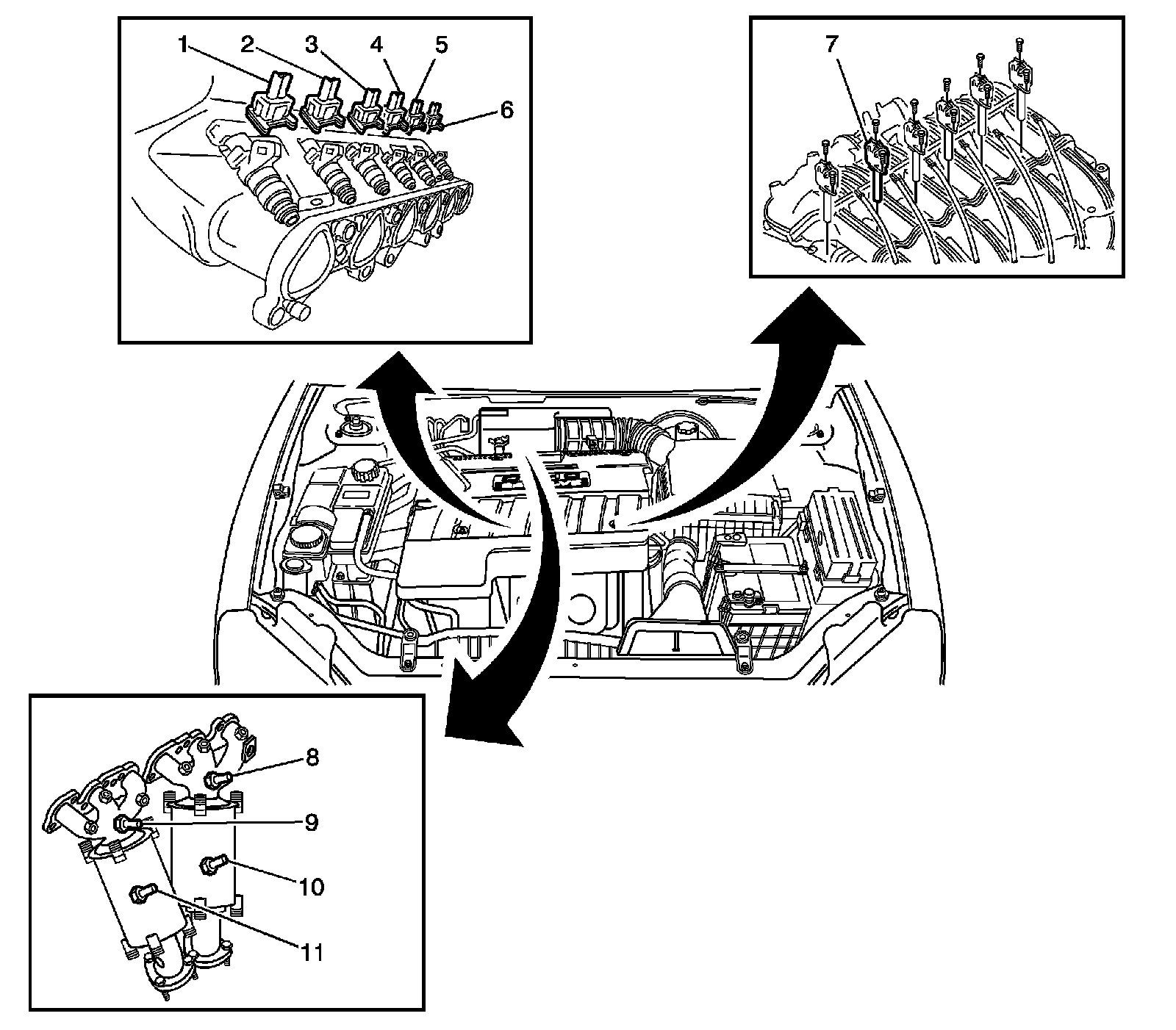

Ignition Coils, Injectors, and Heated Oxygen Sensor (HO2S) (Bank 1 and 2)




1 - Fuel Injector 1
2 - Fuel Injector 2
3 - Fuel Injector 3
4 - Fuel Injector 4
5 - Fuel Injector 5
6 - Fuel Injector 6
7 - Ignition Coil
8 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
9 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
10 - Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
11 - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2

Camshaft Position (CMP), Crankshaft Position (CKP) and Engine Coolant Temperature (ECT) Sensors, EVAP Purge Solenoid Valve




1 - Camshaft Position (CMP) Sensor and Connector
2 - Crankshaft Position (CKP) Sensor
3 - EVAP Canister Purge Solenoid Valve
4 - Engine Coolant Temperature (ECT) Sensor 2.5L

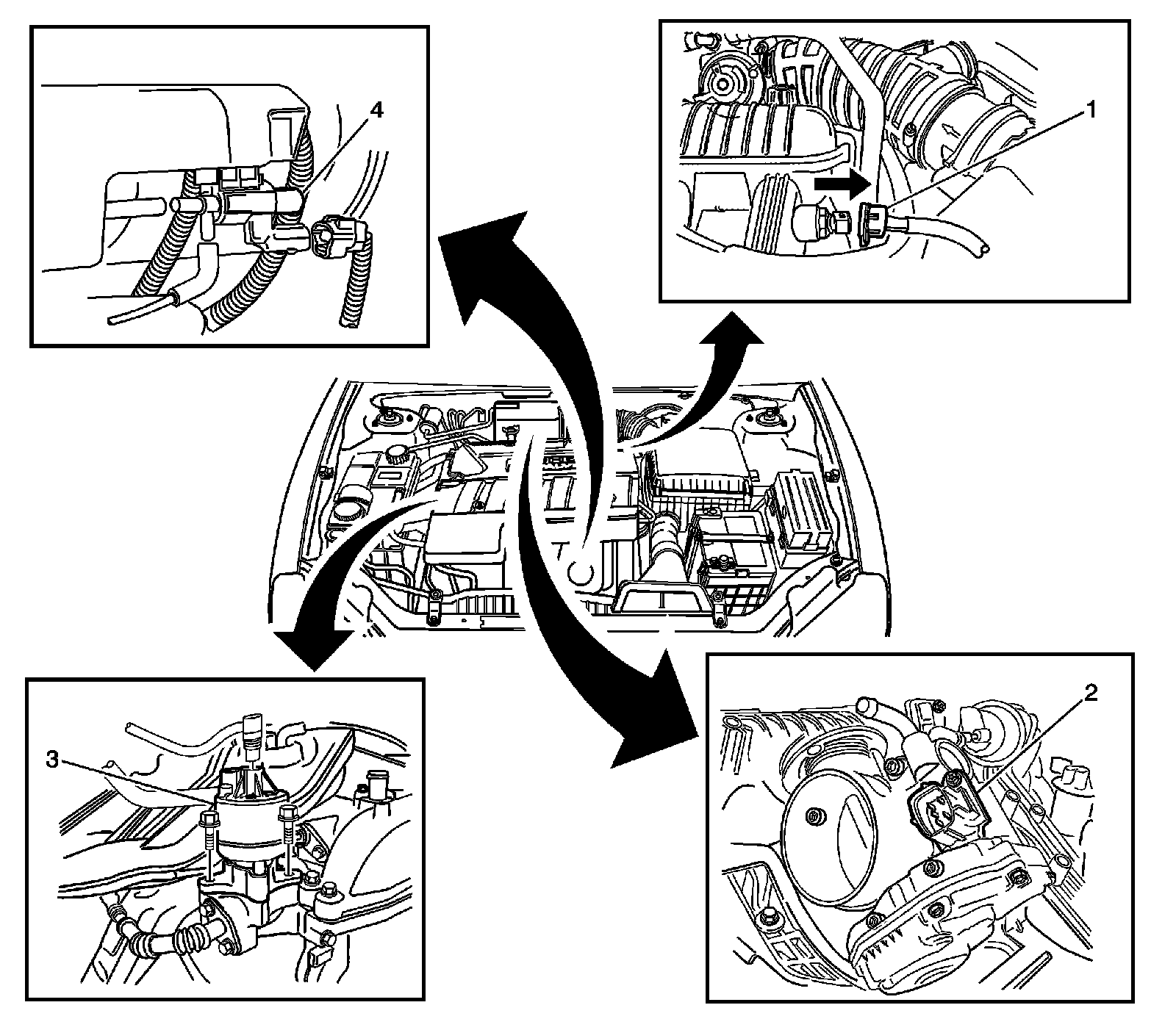

Intake Air Temperature (IAT) Sensor, Throttle Body (MTIA) , Exhaust Gas Recirculation (EGR) and Intake Manifold Tuning Valve (IMTV) Solenoid




1 - Intake Air Temperature (IAT) Sensor
2 - Main Throttle Idle Actuator (MTIA)
3 - Exhaust Gas Recirculation (EGR) Valve 2.5L
4 - Intake Manifold Tuning Valve (IMTV) Solenoid

Sirius D6 Engine Control Module (ECM)




1 - Engine Control Module (ECM) 2.5L

Knock Sensors (KS)/ Manifold Absoulte Pressure (MAP) Sensor




1 - Manifold Absoulte Pressure (MAP) Sensor
2 - Knock Sensor (KS) and Connector

Rough Road Wheel Speed Sensor




1 - Rough Road Wheel Speed Sensor (W/O ABS)
