Starting and Charging: Locations

Engine Electrical Component Views

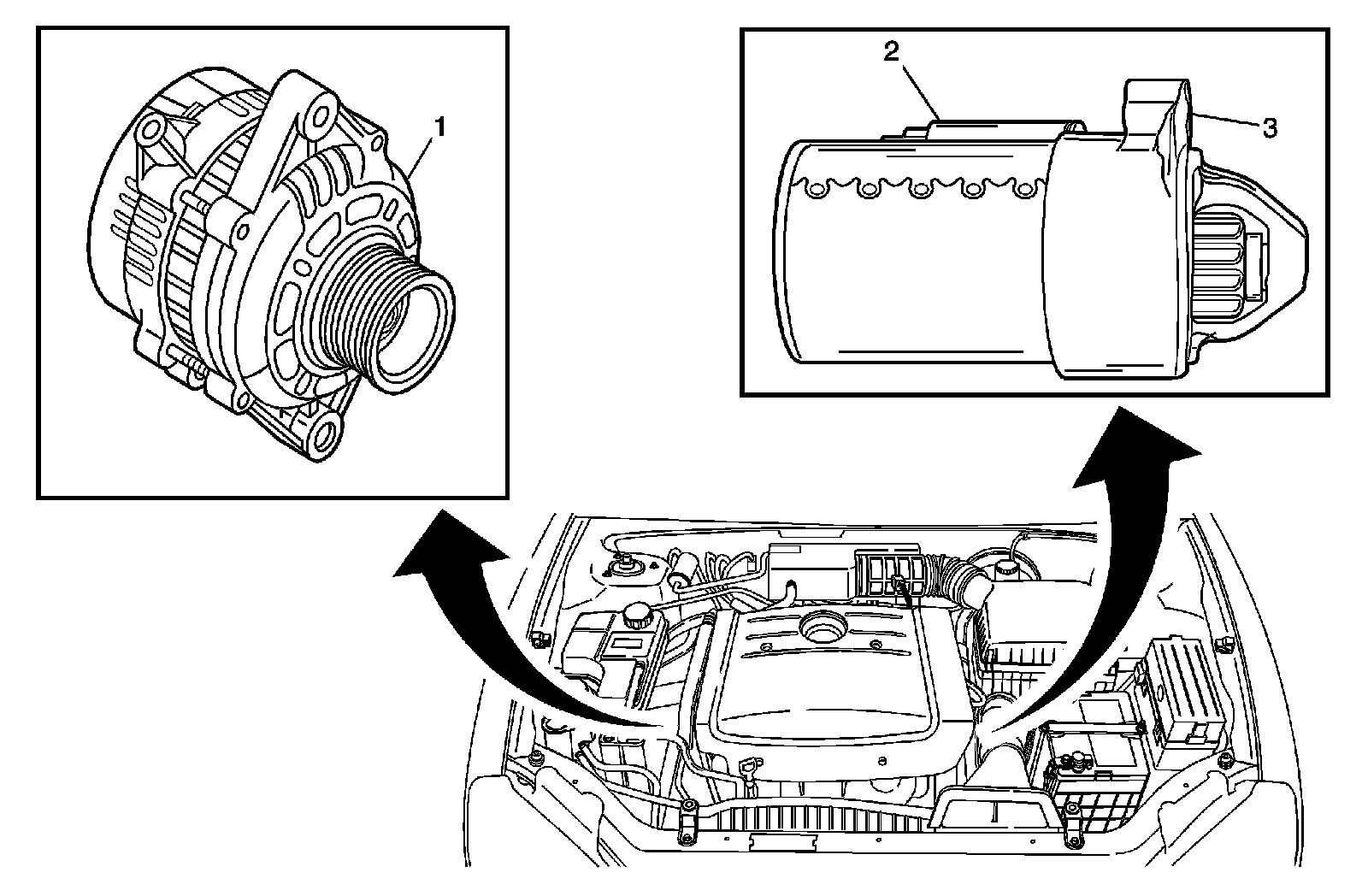

Generator and Starter




1 - Generator
2 - Starter Solenoid
3 - Starter

Starter Motor Assembly




1 - Starter Motor Assembly
2 - Starter Solenoid Assembly
3 - Starter Housing
4 - Shift Lever
5 - Armature Set
6 - Armature
7 - Pinion Gear Assembly
8 - Ring Set
9 - Field Frame Assembly
10 - Brush Holder Assembly
11 - Contact End Frame Assembly
12 - Starter Through-Bolts

Generator Assembly




1 - Generator Assembly
2 - Generator Drive End Nut
3 - Generator Pulley
4 - Generator Collar
5 - Generator Front Bracket
6 - Front Bearing
7 - Generator Stator Assembly
8 - Fan
9 - Generator Rotor Assembly
10 - Generator Rear Bracket
11 - Rectifier Assembly
12 - Cover
13 - Voltage Regulator/Brush Holder Assembly
