Wiper and Washer Systems: Locations

Wiper/Washer Component Views

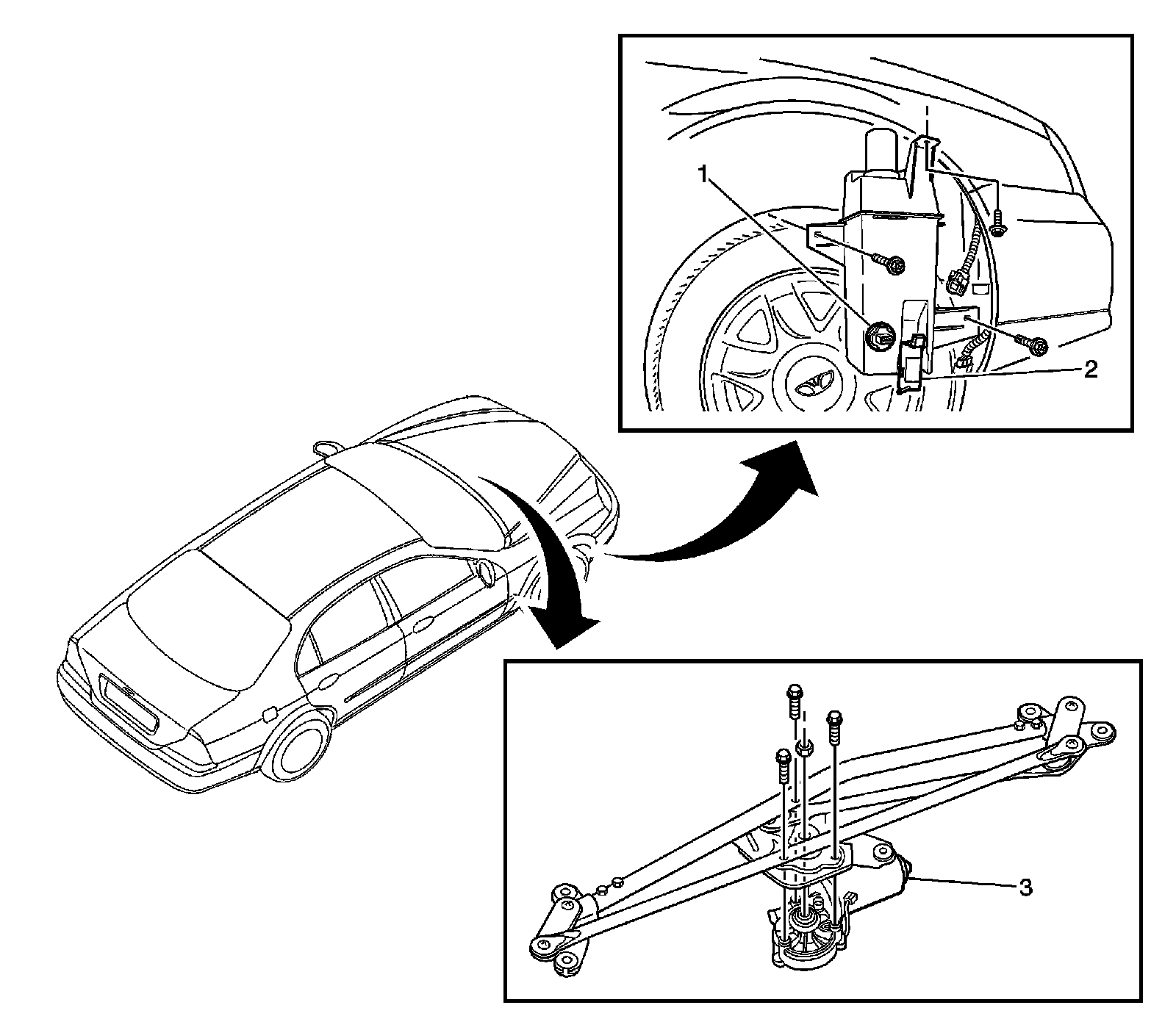

Wiper Motor and Pump




1 - Washer Solvent Container Level Sensor
2 - Windshield Washer Fluid Pump - Front
3 - Windshield Wiper Motor

Wiper Switch




1 - Traction Control Switch
2 - Windshield Wiper/Washer Switch
3 - Hazard Switch
4 - I/P Compartment Lamp/Switch
5 - Headlamp Switch, Turn Signal/ Multifunction Switch
