Closeout/Insulator Panel Replacement - Left

Closeout/Insulator Panel Replacement - Left

Removal Procedure




1. Release the left instrument panel (I/P) insulator retainers from the lower I/P trim pad. Lower the insulator.
2. Rotate the courtesy lamp socket counterclockwise. Remove the socket from the insulator.

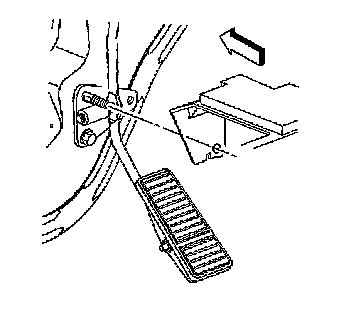

3. Remove the insulator from the stud at the accelerator pedal.
4. Remove the insulator.

Installation Procedure




1. Install the insulator to the stud at the accelerator pedal.




2. Insert the courtesy lamp socket to the insulator opening. Rotate the socket clockwise.
3. Install the insulator retainers to the lower I/P trim pad openings.
