C302
C302

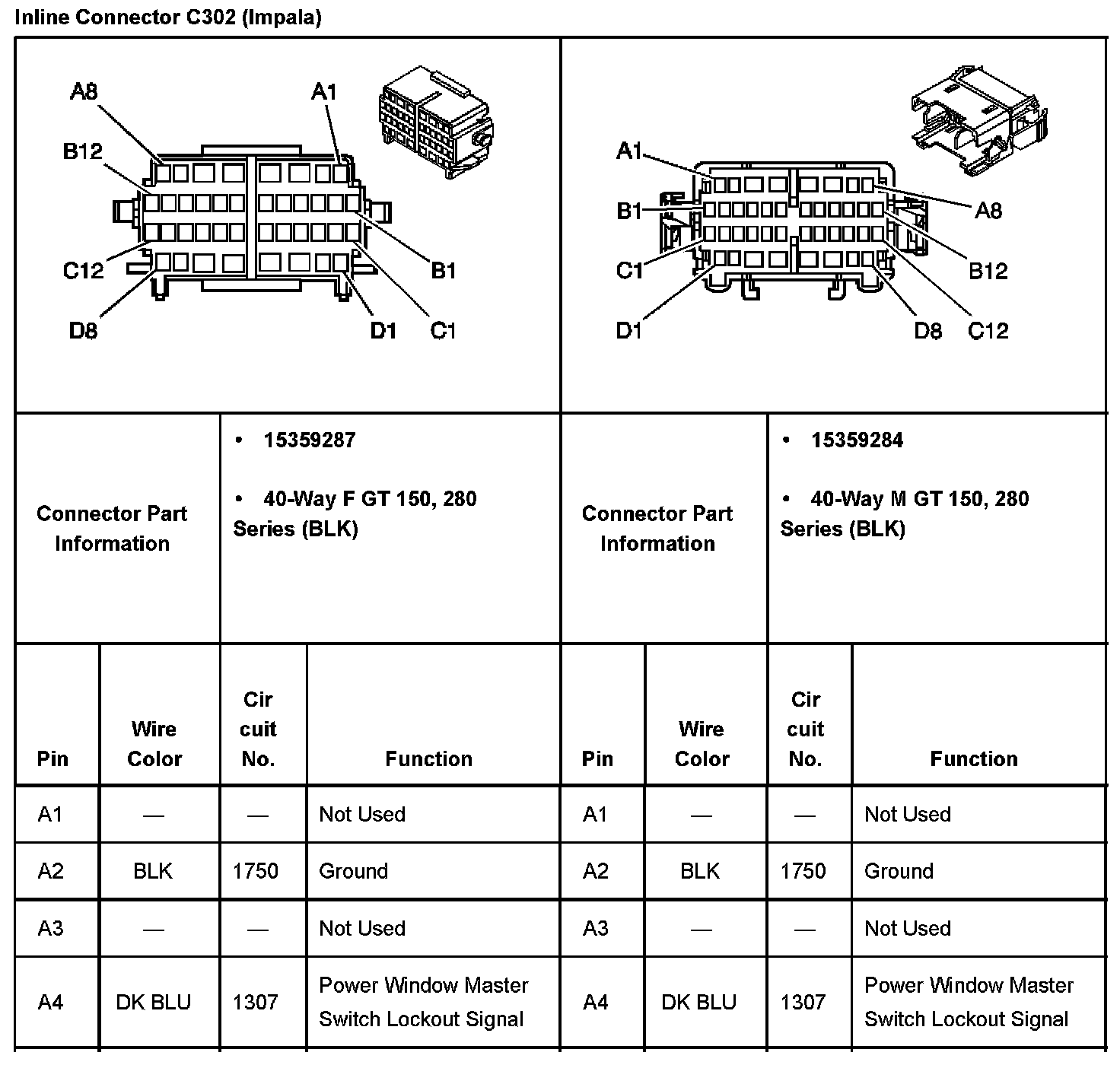

Inline Connector C302 Part 1:

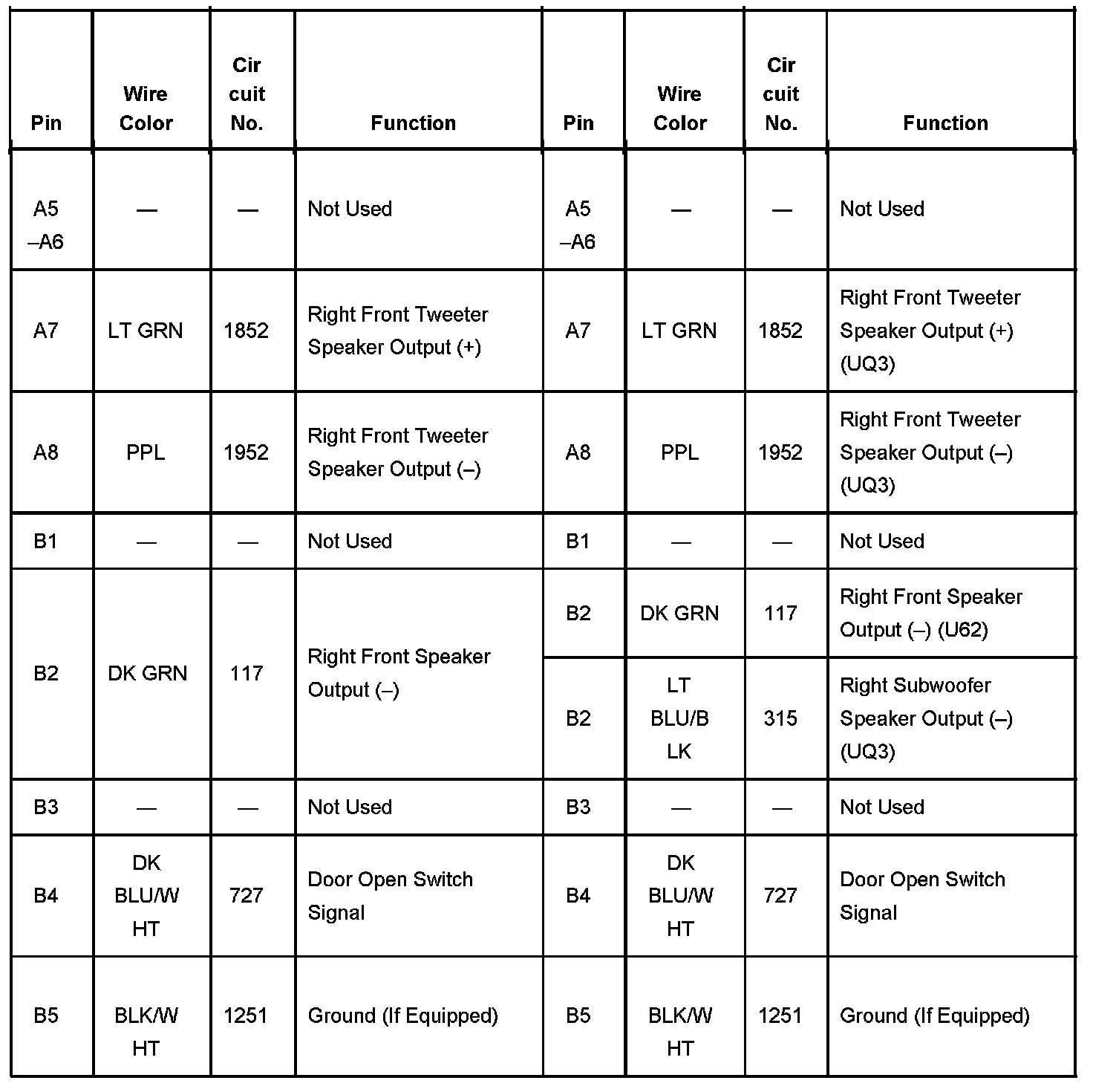

Inline Connector C302 Part 2:

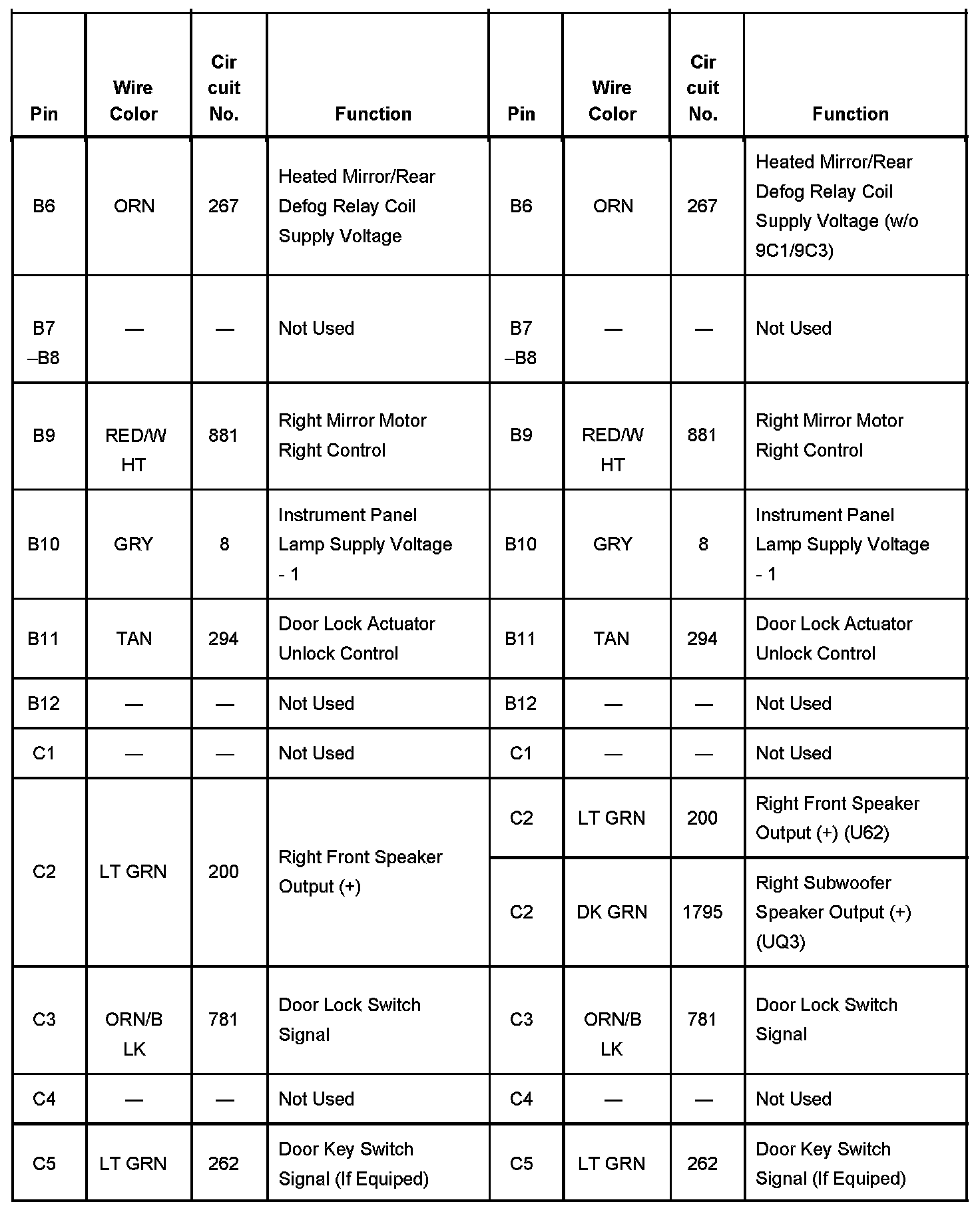

Inline Connector C302 Part 3:

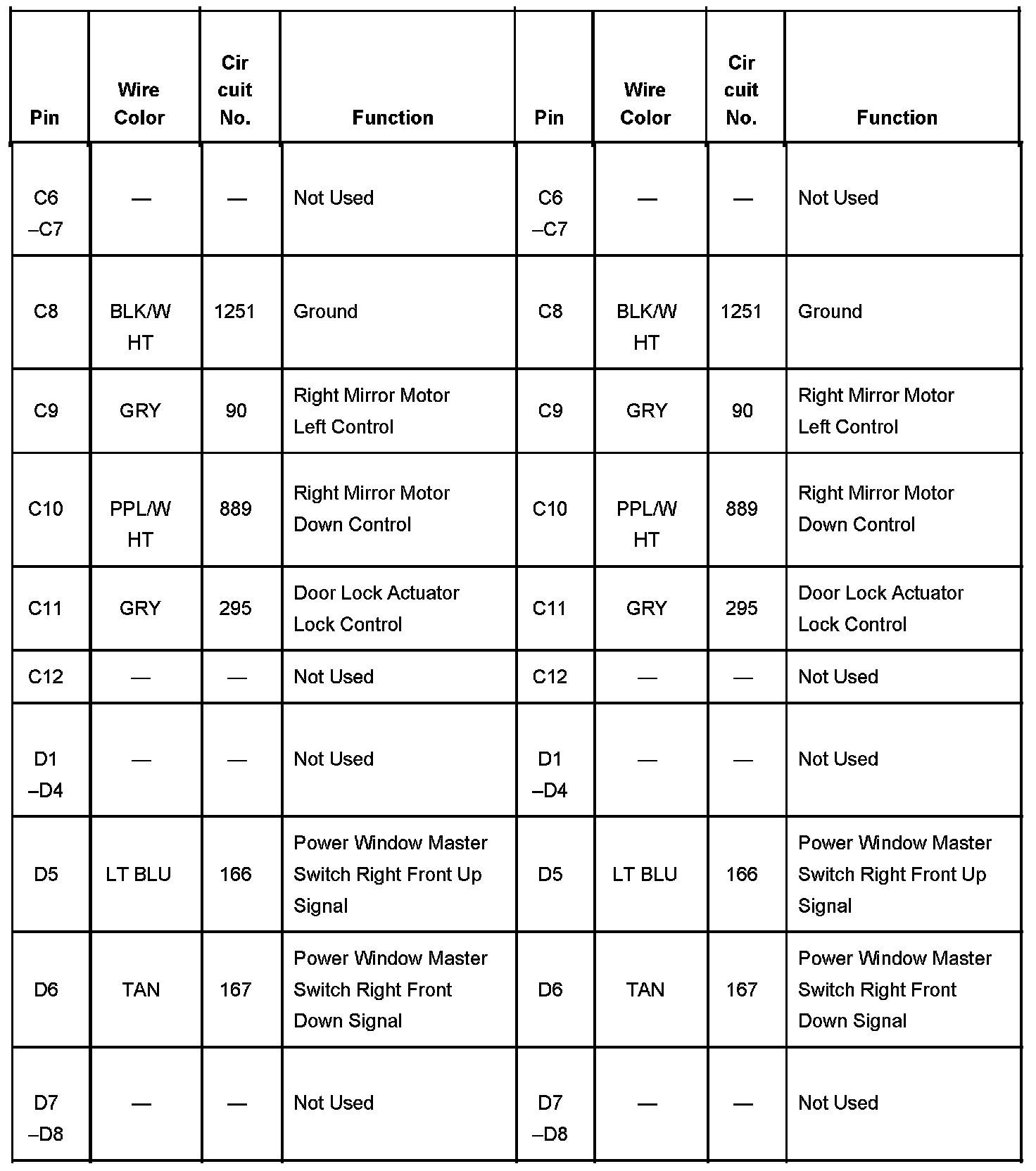

Inline Connector C302 Part 4:
