Door Lock Cylinder Switch

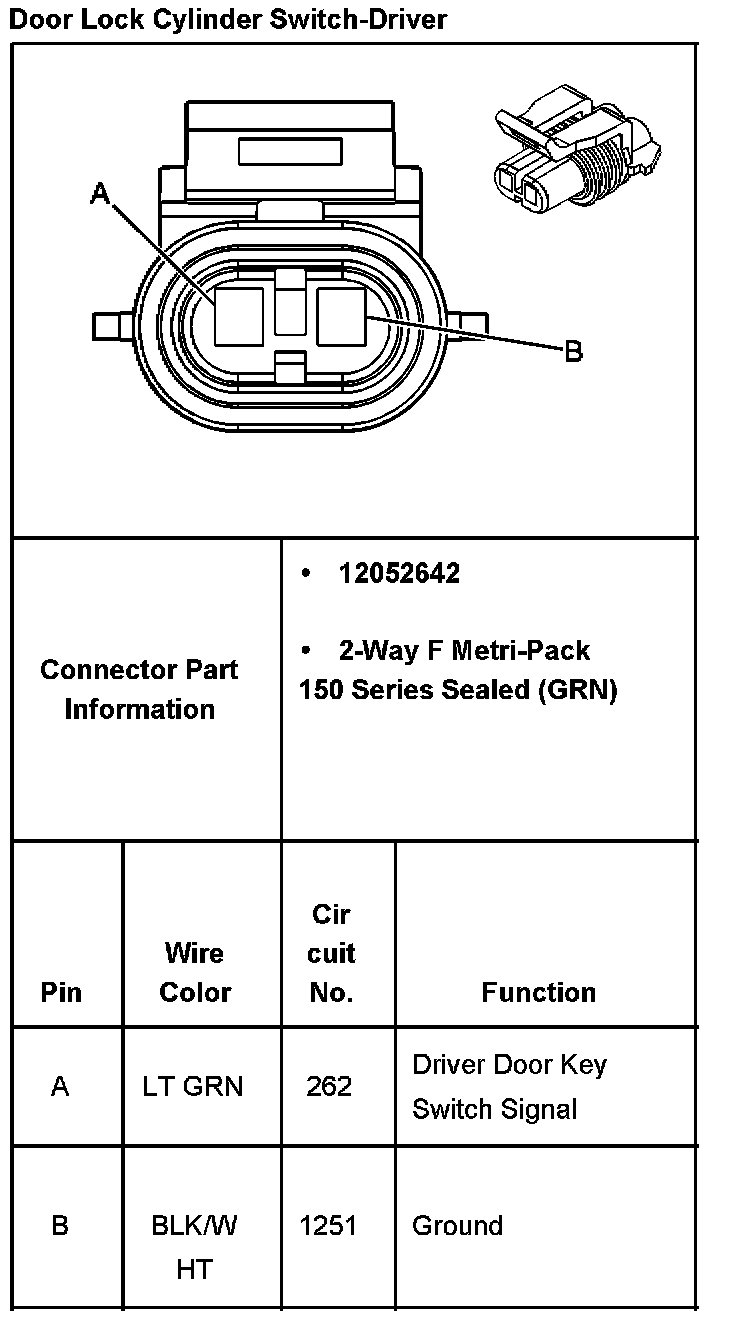

Door Lock Cylinder Switch-Driver:



Door Lock Cylinder Switch-Front Passenger (If Equipped):
