Seat Temperature Switch
Seat Temperature Switch
Heated Seat Switch-Driver:

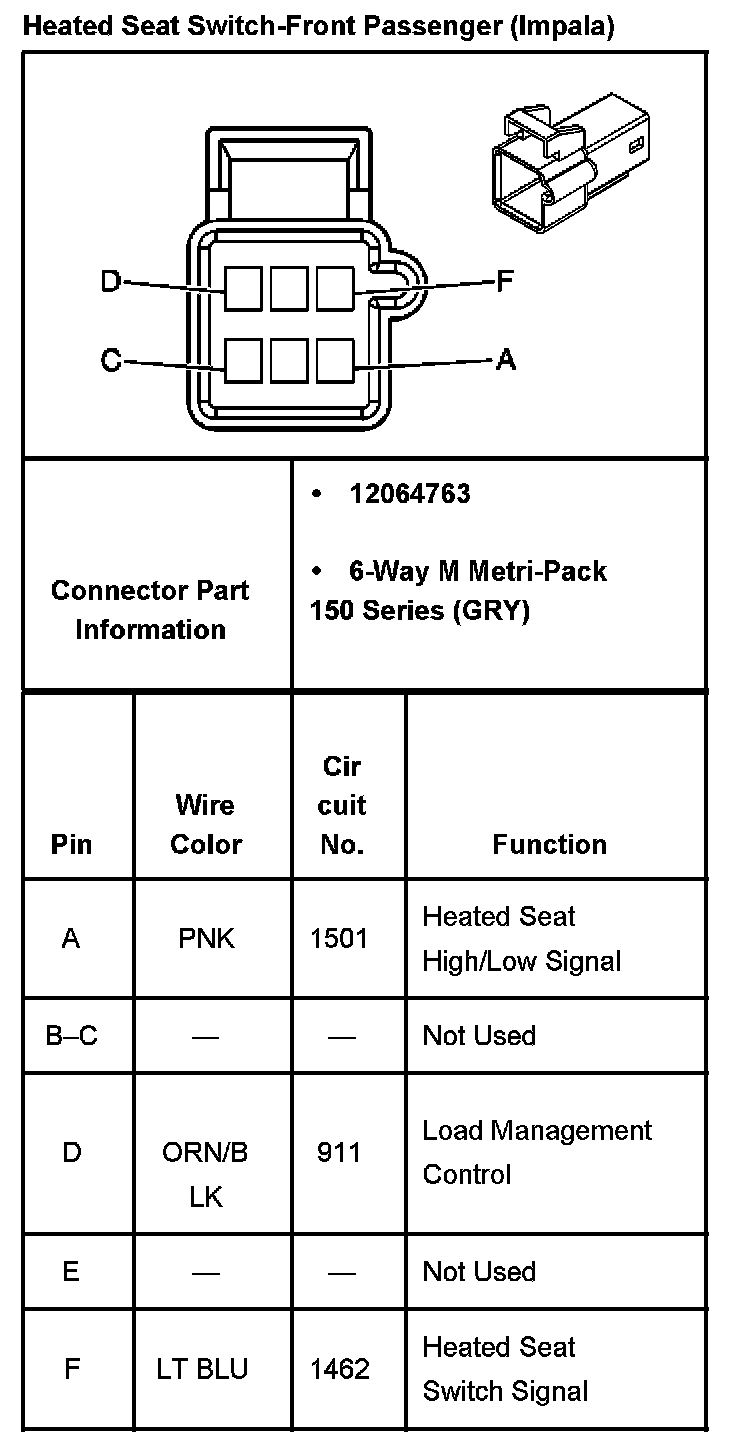

Heated Seat Switch-Front Passenger:
